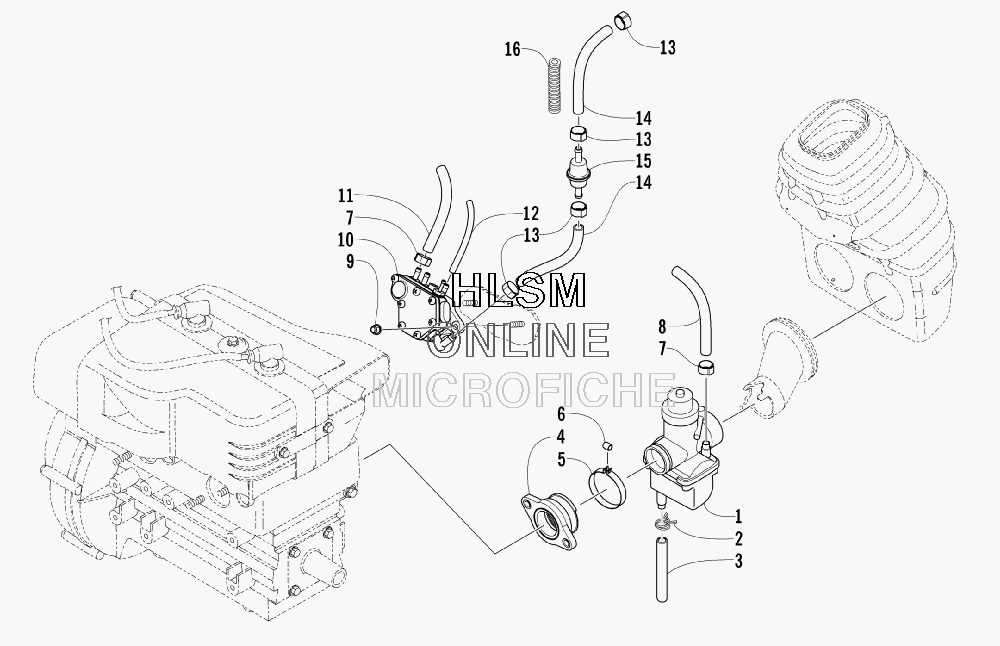

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat T570 - 2008 года выпуска`
-
№АртикулНазвание
-
11670-846 CARBURETOR ASSEMBLY - VM34-625CARBURETOR ASSEMBLY - VM34-625
-
20623-652 CLAMP, HOSECLAMP, HOSE
-
30610-442 HOSE, DRAINHOSE, DRAIN
-
40115-544 FLANGE, CARBURETOR (INC. 5)FLANGE, CARBURETOR (INC. 5)
-
50109-709 ...CLAMP, CARBURETOR FLANGE...CLAMP, CARBURETOR FLANGE
-
60670-210 SPACER, CLAMPSPACER, CLAMP
-
70610-415 CLAMP, HOSECLAMP, HOSE
-
86101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
86101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
98427-602 NUT, LOCKNUT, LOCK
-
101670-262 PUMP, FUELPUMP, FUEL
-
110610-772 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
120610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
130610-563 CLAMP, HOSECLAMP, HOSE
-
140610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
151670-166 FILTER, FUELFILTER, FUEL
-
160619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
