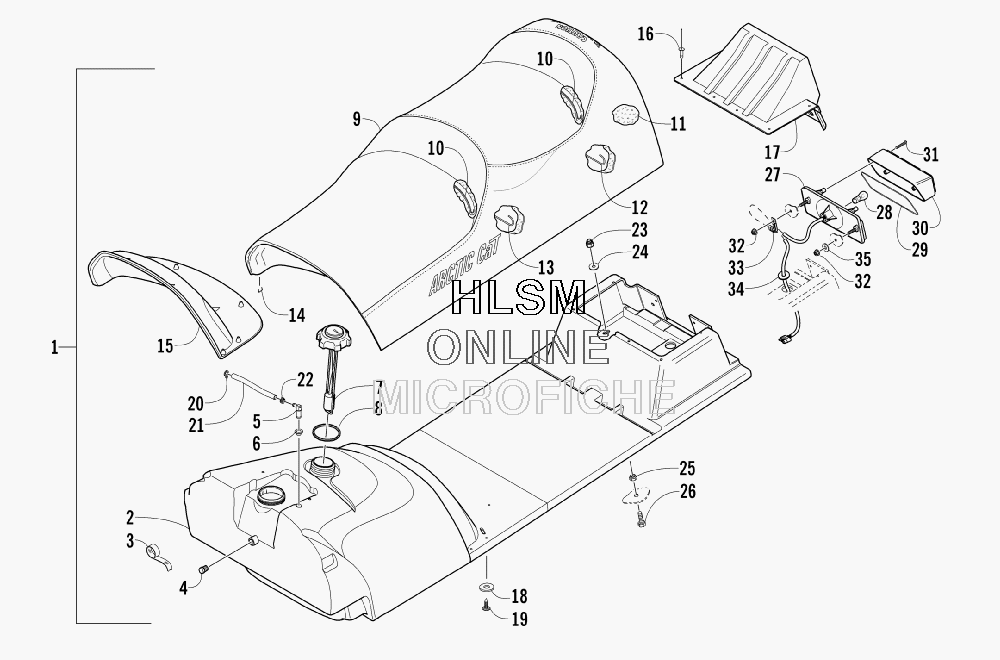

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 370 TOURING - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-439 COMPLETE SEAT ASSEMBLY (INC. 2-19) (USA)
    COMPLETE SEAT ASSEMBLY (INC. 2-19) (USA)
  • 1
    2718-513 COMPLETE SEAT ASSEMBLY (INC. 2-19) (CANADIAN)
    COMPLETE SEAT ASSEMBLY (INC. 2-19) (CANADIAN)
  • 2
    0770-807 ...TANK, GAS/SEAT-BASE (INC. 3-8) (USA)
    ...TANK, GAS/SEAT-BASE (INC. 3-8) (USA)
  • 2
    0770-724 ...TANK, GAS/SEAT-BASE (INC. 3-8) (CANADIAN)
    ...TANK, GAS/SEAT-BASE (INC. 3-8) (CANADIAN)
  • 3
    0670-289 ......TAPE, TEFLON
    ......TAPE, TEFLON
  • 4
    0670-243 ......PLUG, GAS TANK
    ......PLUG, GAS TANK
  • 5
    1670-494 ......VENT, GAS TANK
    ......VENT, GAS TANK
  • 6
    1670-325 ......GROMMET
    ......GROMMET
  • 7
    0670-202 ......CAP, GAS TANK W/GAUGE (INC. 8)
    ......CAP, GAS TANK W/GAUGE (INC. 8)
  • 8
    0109-733 .........SEAL, TANK CAP
    .........SEAL, TANK CAP
  • 9
    3706-853 ...COVER, SEAT (INC. 10)
    ...COVER, SEAT (INC. 10)
  • 10
    3606-363 ......WIRE, SEAT
    ......WIRE, SEAT
  • 11
    0716-991 ...FOAM, SEAT CUSHION
    ...FOAM, SEAT CUSHION
  • 12
    2606-942 ...WIRE, SEAT
    ...WIRE, SEAT
  • 13
    2606-943 ...WIRE, SEAT
    ...WIRE, SEAT
  • 14
    0624-528 ...STAPLE, SEAT COVER
    ...STAPLE, SEAT COVER
  • 15
    1606-612 ...INSERT, SEAT FOAM
    ...INSERT, SEAT FOAM
  • 16
    0623-778 ...RIVET
    ...RIVET
  • 17
    1606-191 ...EXTENSION, TOOLBOX
    ...EXTENSION, TOOLBOX
  • 18
    8050-217 ...WASHER
    ...WASHER
  • 19
    0623-309 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 20
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
  • 21
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 21
    6101-009 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 22
    1623-042 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0123-108 NUT, CAP
    NUT, CAP
  • 24
    0623-184 WASHER
    WASHER
  • 25
    8047-366 NUT, LOCK
    NUT, LOCK
  • 26
    8020-041 SCREW, CAP
    SCREW, CAP
  • 27
    0609-091 TAILLIGHT W/SOCKET ASSEMBLY
    TAILLIGHT W/SOCKET ASSEMBLY
  • 28
    0109-460 BULB
    BULB
  • 29
    0609-092 GASKET, TAILLIGHT LENS
    GASKET, TAILLIGHT LENS
  • 30
    0609-090 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 31
    0609-093 SCREW, RETAINING
    SCREW, RETAINING
  • 32
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 33
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 34
    0617-136 SEAL, FOAM - SEAT-BASE
    SEAL, FOAM - SEAT-BASE
  • 35
    8050-217 WASHER
    WASHER
