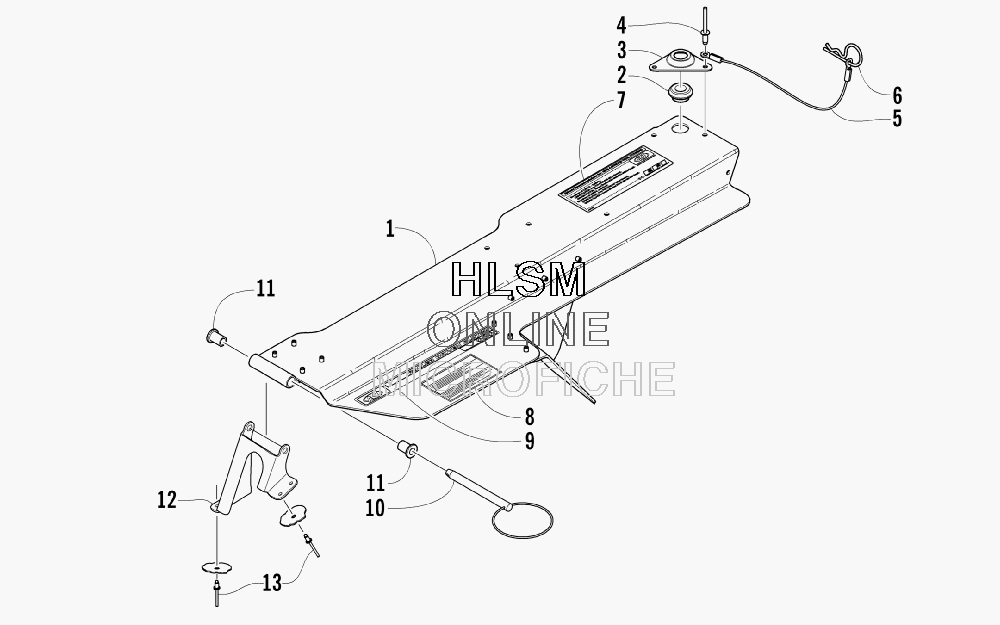

BELT GUARD ASSEMBLY для Arctic Cat PANTHER 370 TOURING - 2008 года выпуска`
-
№АртикулНазвание
-
10707-574 BELT GUARD ASSEMBLY (INC. 2-6)BELT GUARD ASSEMBLY (INC. 2-6)
-
20607-549 ...BUSHING, BELT GUARD...BUSHING, BELT GUARD
-
30607-550 ...PLATE, BUSHING - BELT GUARD...PLATE, BUSHING - BELT GUARD
-
48060-504 ...RIVET...RIVET
-
50607-447 ...CABLE...CABLE
-
60605-283 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
78611-247 DECAL, CLUTCHINGDECAL, CLUTCHING
-
81611-565 DECAL, WARNING - BELT GUARDDECAL, WARNING - BELT GUARD
-
93611-969 DECAL, "ACT - ROLLER DRIVEN CLUTCH"DECAL, "ACT - ROLLER DRIVEN CLUTCH"
-
101623-012 PIN, BELT GUARDPIN, BELT GUARD
-
110607-094 INSERT, HINGEINSERT, HINGE
-
120707-707 BRACKET, MOUNTING - BELT GUARDBRACKET, MOUNTING - BELT GUARD
-
138061-508 RIVETRIVET
