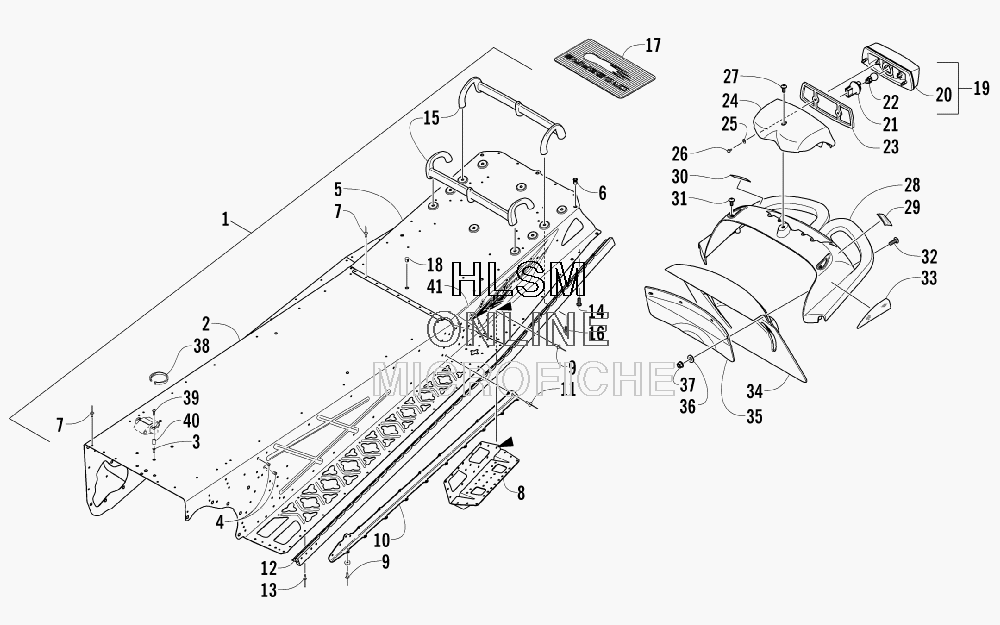

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat CROSSFIRE 500 EFI INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
1707-183 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12718-469 TUNNEL ASSEMBLY (INC. 2-11)TUNNEL ASSEMBLY (INC. 2-11)
-
22718-453 ...TUNNEL, FRONT (INC. 3-4)...TUNNEL, FRONT (INC. 3-4)
-
31623-562 ......INSERT......INSERT
-
41623-657 ......INSERT......INSERT
-
52718-468 ...TUNNEL, REAR (INC. 6)...TUNNEL, REAR (INC. 6)
-
60623-582 ......INSERT......INSERT
-
78060-484 ...RIVET...RIVET
-
83706-152 ...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR...BRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
83706-153 ...BRACKET, SUSPENSION MOUNTING - LEFT - REAR...BRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
98060-686 ...RIVET...RIVET
-
105606-402 ...BRACKET, TUNNEL SUPPORT - RIGHT...BRACKET, TUNNEL SUPPORT - RIGHT
-
105606-403 ...BRACKET, TUNNEL SUPPORT - LEFT...BRACKET, TUNNEL SUPPORT - LEFT
-
118060-688 ...RIVET...RIVET
-
124606-050 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
124606-051 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
138060-482 RIVETRIVET
-
141623-022 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
153606-584 RACKRACK
-
161623-499 SCREW, MACHINESCREW, MACHINE
-
174606-149 PAD, RUBBERPAD, RUBBER
-
180623-562 PLUG, HOLEPLUG, HOLE
-
190509-022 TAILLIGHT ASSEMBLY (INC. 20-22)TAILLIGHT ASSEMBLY (INC. 20-22)
-
200509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
210409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
220409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
234606-382 SPACER, TAILLIGHTSPACER, TAILLIGHT
-
243606-747 HOUSING, TAILLIGHT MOUNTINGHOUSING, TAILLIGHT MOUNTING
-
258050-127 WASHERWASHER
-
260623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
271623-513 SCREW, MACHINESCREW, MACHINE
-
283606-431 BUMPER, REARBUMPER, REAR
-
295611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
305611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
311623-501 SCREW, MACHINESCREW, MACHINE
-
328017-581 SCREW, MACHINESCREW, MACHINE
-
338611-010 DECAL, REFLECTOR - RED - RIGHTDECAL, REFLECTOR - RED - RIGHT
-
338611-011 DECAL, REFLECTOR - RED - LEFTDECAL, REFLECTOR - RED - LEFT
-
344606-227 SNOWFLAPSNOWFLAP
-
353606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
360623-184 WASHERWASHER
-
378047-366 NUT, LOCKNUT, LOCK
-
380123-788 CABLE TIECABLE TIE
-
391623-671 SCREW, MACHINESCREW, MACHINE
-
401623-045 SPACERSPACER
-
418611-164 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
418611-165 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
