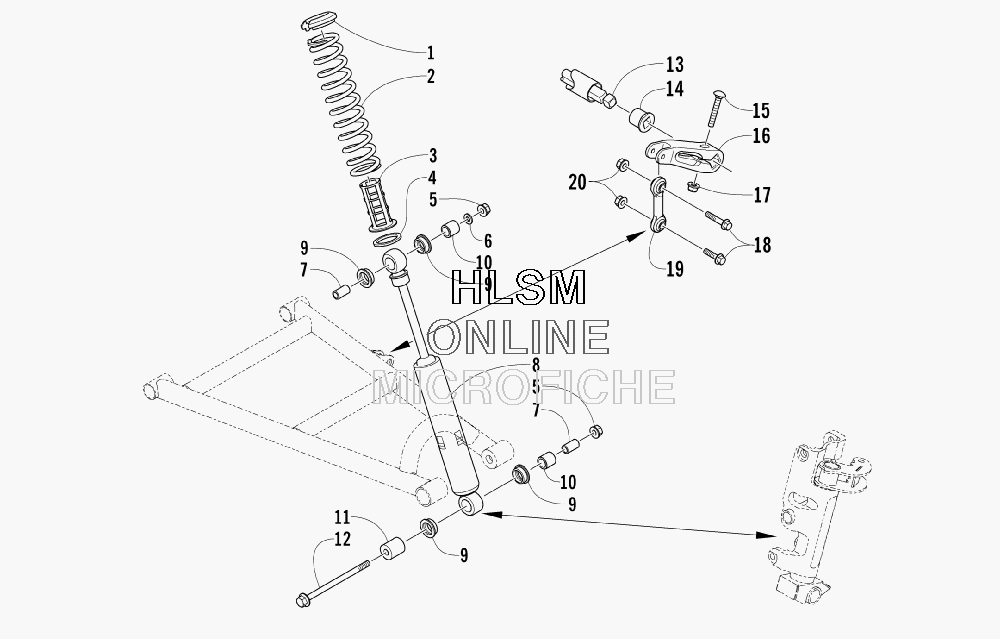

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat CROSSFIRE 500 EFI INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
22703-275 SPRING, COMPRESSION - ORANGESPRING, COMPRESSION - ORANGE
-
32603-533 SLEEVE, WEARSLEEVE, WEAR
-
42603-532 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
58047-486 NUT, LOCKNUT, LOCK
-
60623-991 WASHERWASHER
-
71603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
82603-617 SHOCK, SKI (INC. 9-10)SHOCK, SKI (INC. 9-10)
-
90603-955 ...BUSHING, SHOCK...BUSHING, SHOCK
-
101603-209 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
110603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
128020-232 SCREW, CAPSCREW, CAP
-
132703-094 SWAY BARSWAY BAR
-
142603-648 BEARINGBEARING
-
151623-584 BOLT, CARRIAGEBOLT, CARRIAGE
-
162703-096 ARM, SWAY BARARM, SWAY BAR
-
178047-426 NUT, LOCKNUT, LOCK
-
188020-045 SCREW, CAPSCREW, CAP
-
192603-649 LINK, SWAY BARLINK, SWAY BAR
-
208047-366 NUT, LOCKNUT, LOCK
