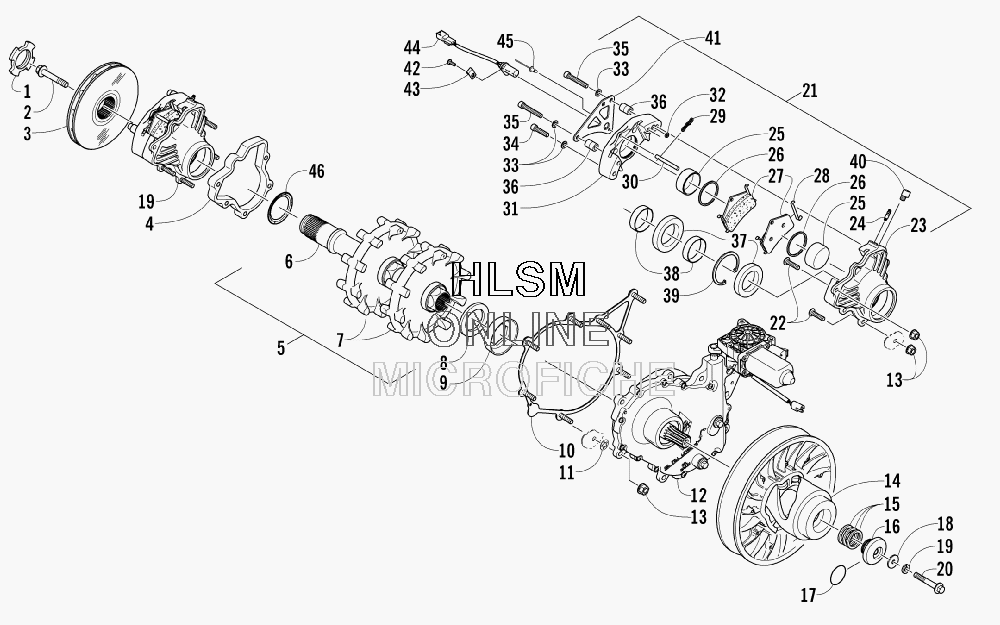

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat CROSSFIRE 500 EFI INTERNATIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
50728-171 TRACK, DRIVE - ASSEMBLY (INC. 6-7)TRACK, DRIVE - ASSEMBLY (INC. 6-7)
-
60702-940 ...DRIVESHAFT...DRIVESHAFT
-
71602-783 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
82602-065 SPACERSPACER
-
91602-984 SEALSEAL
-
100702-882 PLATE, MOUNTING - GEARCASEPLATE, MOUNTING - GEARCASE
-
111623-355 NUT, PUSHNUT, PUSH
-
120702-954 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
138047-426 NUT, LOCKNUT, LOCK
-
140726-275 CLUTCH, DRIVENCLUTCH, DRIVEN
-
150648-714 WASHER, DRIVEN .090 THICKWASHER, DRIVEN .090 THICK
-
150648-715 WASHER, DRIVEN .030 THICKWASHER, DRIVEN .030 THICK
-
150648-716 WASHER, DRIVEN .060 THICKWASHER, DRIVEN .060 THICK
-
160648-762 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
170648-441 O-RINGO-RING
-
188050-277 WASHERWASHER
-
198051-272 WASHER, LOCKWASHER, LOCK
-
201623-572 SCREW, CAPSCREW, CAP
-
211702-014 CALIPER, BRAKE - ASSEMBLY (INC. 22-40)CALIPER, BRAKE - ASSEMBLY (INC. 22-40)
-
221623-360 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
241602-458 ...FITTING, BLEED...FITTING, BLEED
-
251602-461 ...PISTON...PISTON
-
261602-669 ...O-RING...O-RING
-
270702-563 ...PAD, BRAKE - SET (INC. 28-29)...PAD, BRAKE - SET (INC. 28-29)
-
281602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
291602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
301602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
320602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
330402-165 ...WASHER...WASHER
-
341602-671 ...SCREW, CAP...SCREW, CAP
-
351602-670 ...SCREW, CAP...SCREW, CAP
-
362602-132 ...SPACER, SPEEDOMETER BRACKET...SPACER, SPEEDOMETER BRACKET
-
372602-131 ...BEARING...BEARING
-
381602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
391602-456 ...RING, RETAINING...RING, RETAINING
-
400602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
414606-309 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
428468-617 SCREW, MACHINESCREW, MACHINE
-
431623-676 CLAMP, SPEEDOMETER SENSORCLAMP, SPEEDOMETER SENSOR
-
440630-207 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
458060-602 RIVETRIVET
-
462602-076 SHIELD, BEARINGSHIELD, BEARING
