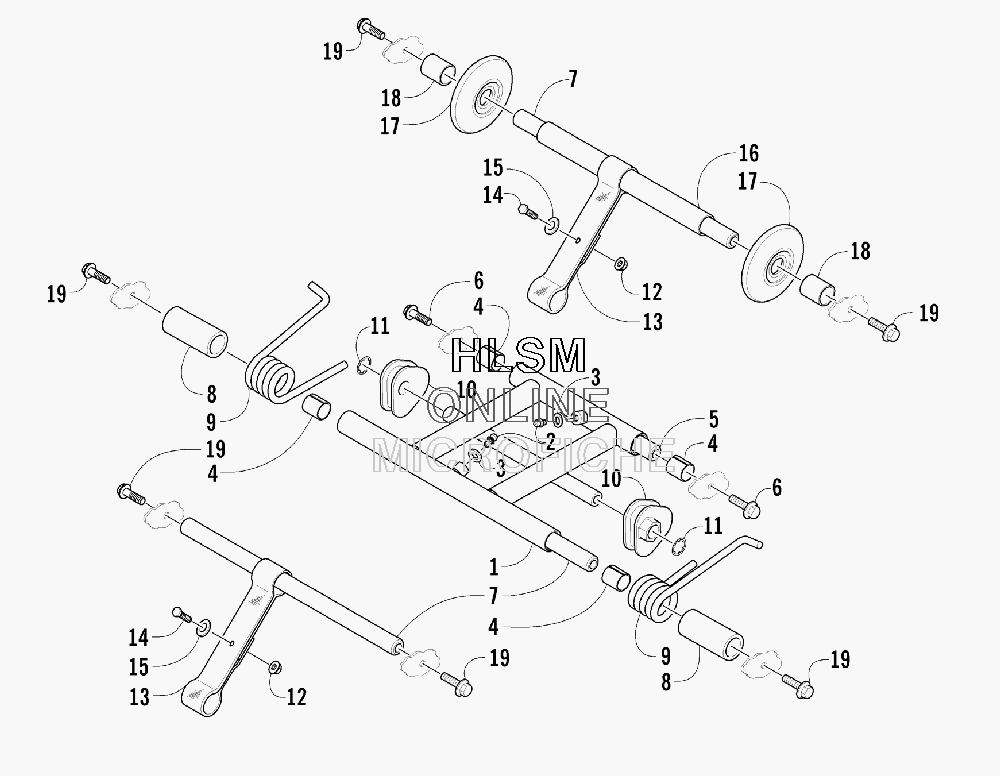

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat AC 120 (GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-287 ARM, REAR SUSPENSION (INC. 2-4)
    ARM, REAR SUSPENSION (INC. 2-4)
  • 2
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 3
    1623-011 ...WASHER, GREASE FITTING
    ...WASHER, GREASE FITTING
  • 4
    0603-083 ...BEARING
    ...BEARING
  • 5
    1604-710 AXLE, REAR SUSPENSION ARM - LOWER
    AXLE, REAR SUSPENSION ARM - LOWER
  • 6
    1623-566 SCREW, CAP
    SCREW, CAP
  • 7
    1604-673 AXLE, IDLER
    AXLE, IDLER
  • 8
    1604-715 SLEEVE, SPRING
    SLEEVE, SPRING
  • 9
    0704-894 SPRING, REAR SUSPENSION - RIGHT
    SPRING, REAR SUSPENSION - RIGHT
  • 9
    0704-895 SPRING, REAR SUSPENSION - LEFT
    SPRING, REAR SUSPENSION - LEFT
  • 10
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT
    BLOCK, SPRING ADJUSTER - RIGHT
  • 10
    1604-205 BLOCK, SPRING ADJUSTER - LEFT
    BLOCK, SPRING ADJUSTER - LEFT
  • 11
    0623-138 RING, RETAINING
    RING, RETAINING
  • 12
    8047-366 NUT, LOCK
    NUT, LOCK
  • 13
    1604-708 STRAP, LIMITER
    STRAP, LIMITER
  • 14
    8002-042 SCREW, CAP
    SCREW, CAP
  • 15
    8050-222 WASHER
    WASHER
  • 16
    1604-564 SPACER
    SPACER
  • 17
    0300-180 WHEEL, IDLER
    WHEEL, IDLER
  • 18
    1604-565 SPACER
    SPACER
  • 19
    8020-131 SCREW, CAP
    SCREW, CAP
