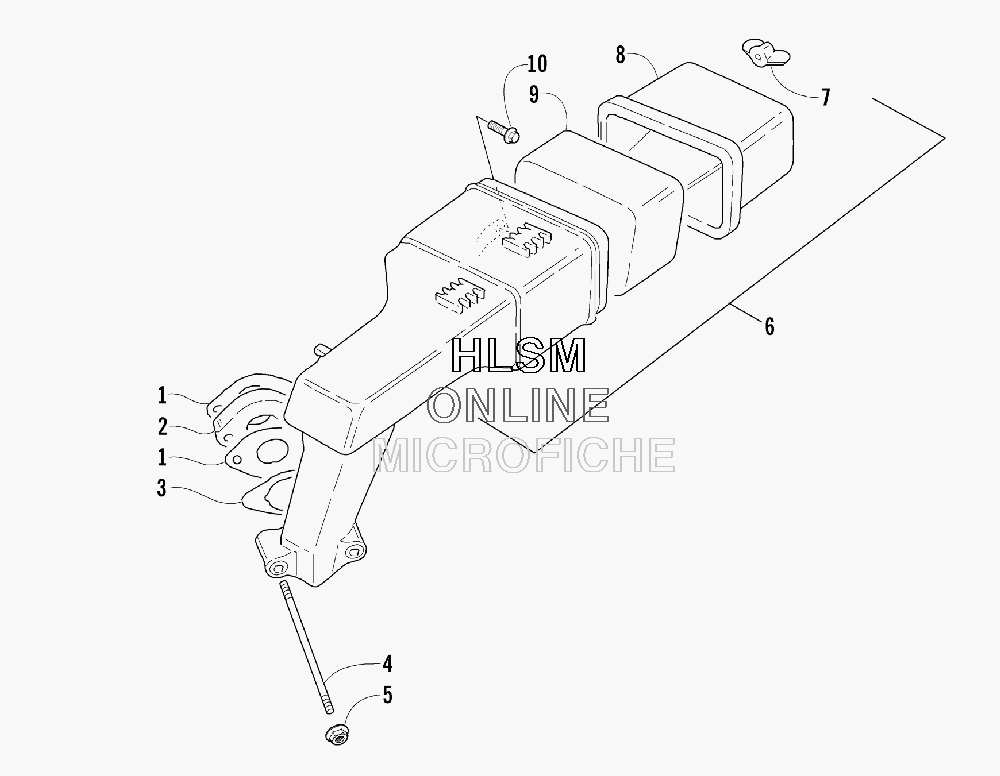

AIR CLEANER ASSEMBLY для Arctic Cat AC 120 (GREEN) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0693-282 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 2
    0691-850 INSULATOR, CARBURETOR
    INSULATOR, CARBURETOR
  • 3
    0693-287 GASKET, AIR CLEANER
    GASKET, AIR CLEANER
  • 4
    0693-364 BOLT, STUD
    BOLT, STUD
  • 5
    3004-488 NUT
    NUT
  • 6
    0693-543 CLEANER, AIR - ASSEMBLY (INC. 7-9)
    CLEANER, AIR - ASSEMBLY (INC. 7-9)
  • 7
    0693-542 ...NUT, WING
    ...NUT, WING
  • 8
    0691-851 ...COVER, AIR CLEANER
    ...COVER, AIR CLEANER
  • 9
    0691-736 ...FILTER, AIR CLEANER
    ...FILTER, AIR CLEANER
  • 10
    0693-307 BOLT
    BOLT
