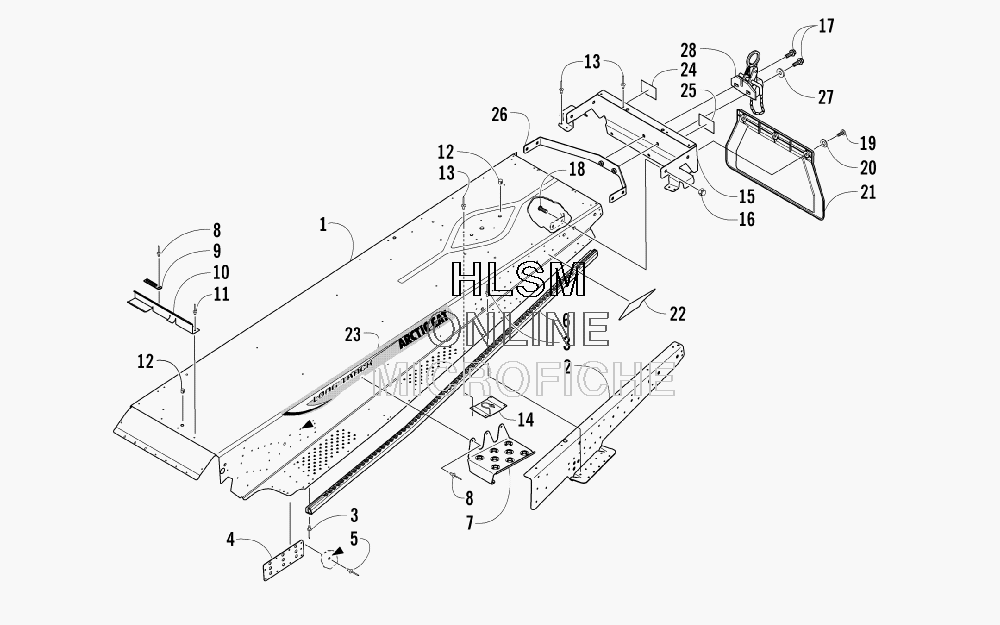

TUNNEL- REAR BUMPER- AND HITCH ASSEMBLY для Arctic Cat BEARCAT 570 LONG TRACK - 2007 года выпуска
-
№АртикулНазвание
-
12718-069 TUNNEL ASSEMBLY (INC. 2-3)TUNNEL ASSEMBLY (INC. 2-3)
-
23706-440 ...BRACKET, SUSPENSION MOUNTING - RIGHT...BRACKET, SUSPENSION MOUNTING - RIGHT
-
23706-441 ...BRACKET, SUSPENSION MOUNTING - LEFT...BRACKET, SUSPENSION MOUNTING - LEFT
-
30123-418 ...RIVET, SOLID...RIVET, SOLID
-
38060-484 ...RIVET (OPTIONAL)...RIVET (OPTIONAL)
-
42706-111 PLATE, SUSPENSION MOUNTING - FRONTPLATE, SUSPENSION MOUNTING - FRONT
-
50623-072 RIVET, SOLIDRIVET, SOLID
-
63606-166 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
63606-167 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
74606-006 FOOTREST, REAR - RIGHTFOOTREST, REAR - RIGHT
-
74606-007 FOOTREST, REAR - LEFTFOOTREST, REAR - LEFT
-
88060-486 RIVETRIVET
-
93002-964 CLAMP, WIRECLAMP, WIRE
-
100707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
110623-166 RIVETRIVET
-
120623-562 PLUG, HOLEPLUG, HOLE
-
138060-504 RIVETRIVET
-
142706-378 PLATE, CATCH - SEAT LATCHPLATE, CATCH - SEAT LATCH
-
153706-204 BUMPER, REARBUMPER, REAR
-
160623-426 NUT, CAPNUT, CAP
-
171623-248 SCREW, CAPSCREW, CAP
-
188020-220 SCREW, CAPSCREW, CAP
-
198017-580 SCREW, MACHINESCREW, MACHINE
-
200623-184 WASHERWASHER
-
210616-613 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
226611-688 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
226611-689 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
237611-390 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
237611-391 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
245611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
255611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
263706-437 SUPPORT, BUMPERSUPPORT, BUMPER
-
278050-272 WASHERWASHER
-
284606-156 HITCH, PINTLEHITCH, PINTLE
