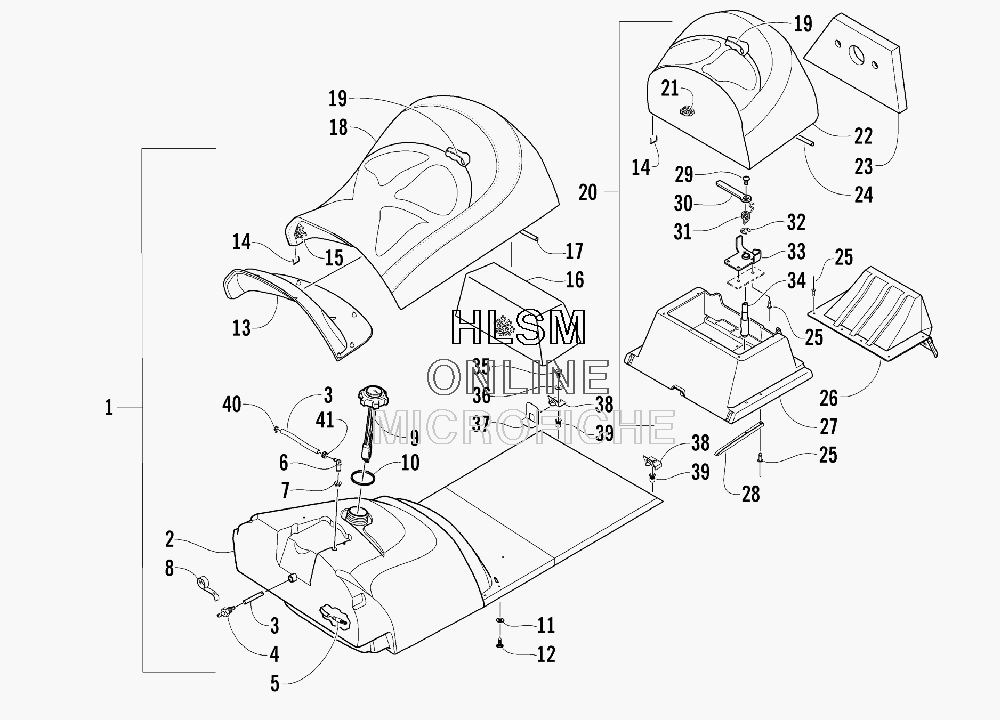

GAS TANK AND SEAT ASSEMBLY для Arctic Cat BEARCAT 570 LONG TRACK - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-907 COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19)
    COMPLETE SEAT ASSEMBLY (INC. 2-18 AND ONE NO. 19)
  • 2
    0770-692 ...TANK, GAS/SEAT-BASE (INC. 3-10)
    ...TANK, GAS/SEAT-BASE (INC. 3-10)
  • 3
    6101-001 ......HOSE, GASLINE - 100 FT
    ......HOSE, GASLINE - 100 FT
  • 3
    6101-009 ......HOSE, GASLINE - 25 FT
    ......HOSE, GASLINE - 25 FT
  • 4
    1670-173 ......OUTLET, TANK
    ......OUTLET, TANK
  • 5
    0510-358 ......STRAINER, GAS TANK
    ......STRAINER, GAS TANK
  • 6
    1670-494 ......VENT, GAS TANK
    ......VENT, GAS TANK
  • 7
    1670-325 ......GROMMET
    ......GROMMET
  • 8
    0670-289 ......TAPE, TEFLON
    ......TAPE, TEFLON
  • 9
    0670-658 ......CAP, GAS TANK (INC. 10)
    ......CAP, GAS TANK (INC. 10)
  • 10
    0109-733 .........SEAL, TANK CAP
    .........SEAL, TANK CAP
  • 11
    8050-217 ...WASHER
    ...WASHER
  • 12
    0623-309 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 13
    1606-612 ...INSERT, SEAT FOAM
    ...INSERT, SEAT FOAM
  • 14
    0624-528 ...STAPLE, SEAT COVER
    ...STAPLE, SEAT COVER
  • 15
    2706-611 ...FOAM, SEAT CUSHION - FRONT
    ...FOAM, SEAT CUSHION - FRONT
  • 16
    2606-133 ...INSERT, SEAT FOAM
    ...INSERT, SEAT FOAM
  • 17
    2606-943 ...WIRE, SEAT
    ...WIRE, SEAT
  • 18
    3706-030 ...COVER, SEAT - FRONT (INC. ONE NO. 19)
    ...COVER, SEAT - FRONT (INC. ONE NO. 19)
  • 19
    3606-363 ......WIRE, SEAT
    ......WIRE, SEAT
  • 20
    7998-586 COMPLETE SEAT ASSEMBLY - PASSENGER (INC. 14, ONE NO. 19, AND 21-34)
    COMPLETE SEAT ASSEMBLY - PASSENGER (INC. 14, ONE NO. 19, AND 21-34)
  • 21
    1706-159 ...FOAM, SEAT - PASSENGER
    ...FOAM, SEAT - PASSENGER
  • 22
    3706-031 ...COVER, SEAT - PASSENGER (INC. ONE NO. 19)
    ...COVER, SEAT - PASSENGER (INC. ONE NO. 19)
  • 23
    0617-098 ...FOAM, SEAT-BASE/TAILLIGHT
    ...FOAM, SEAT-BASE/TAILLIGHT
  • 24
    2606-942 ...WIRE, SEAT
    ...WIRE, SEAT
  • 25
    0623-853 ...RIVET
    ...RIVET
  • 26
    1606-191 ...EXTENSION, TOOLBOX
    ...EXTENSION, TOOLBOX
  • 27
    3606-238 ...SEAT-BASE - PASSENGER
    ...SEAT-BASE - PASSENGER
  • 28
    2606-188 ...BRACKET, HOLD-DOWN - SEAT - RIGHT
    ...BRACKET, HOLD-DOWN - SEAT - RIGHT
  • 28
    2606-189 ...BRACKET, HOLD-DOWN - SEAT - LEFT
    ...BRACKET, HOLD-DOWN - SEAT - LEFT
  • 29
    8017-397 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 30
    3606-171 ...LEVER, SEAT LATCH
    ...LEVER, SEAT LATCH
  • 31
    0623-610 ...SPRING, LEVER
    ...SPRING, LEVER
  • 32
    0602-051 ...E-RING
    ...E-RING
  • 33
    2706-535 ...BRACKET, SEAT LATCH
    ...BRACKET, SEAT LATCH
  • 34
    3606-172 ...STUD, LATCH
    ...STUD, LATCH
  • 35
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 36
    8050-222 WASHER
    WASHER
  • 37
    2606-268 GUARD, SEAT - RIGHT
    GUARD, SEAT - RIGHT
  • 37
    2606-269 GUARD, SEAT - LEFT
    GUARD, SEAT - LEFT
  • 38
    2706-134 BRACKET, HOLD-DOWN - RECEIVER - RIGHT
    BRACKET, HOLD-DOWN - RECEIVER - RIGHT
  • 38
    2706-135 BRACKET, HOLD-DOWN - RECEIVER - LEFT
    BRACKET, HOLD-DOWN - RECEIVER - LEFT
  • 39
    0623-582 INSERT
    INSERT
  • 40
    0623-101 CLIP, ROUTING - SNAP-IN
    CLIP, ROUTING - SNAP-IN
  • 41
    1623-042 CLAMP, HOSE
    CLAMP, HOSE
