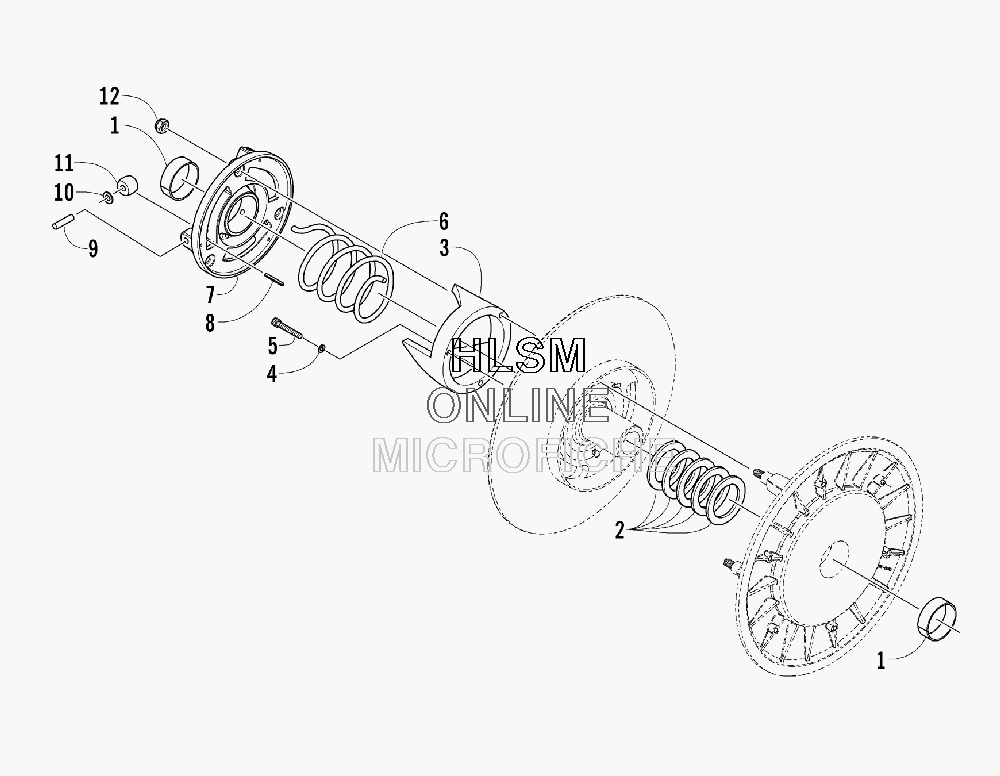

DRIVEN CLUTCH для Arctic Cat BEARCAT 570 LONG TRACK - 2007 года выпуска

  • №
    Артикул
    Название
  • 0726-230 COMPLETE CLUTCH, DRIVEN-LG (49-R/W)
    COMPLETE CLUTCH, DRIVEN-LG (49-R/W)
  • 1
    0648-009 BEARING
    BEARING
  • 2
    0148-198 WASHER, THRUST: 0.030 IN.
    WASHER, THRUST: 0.030 IN.
  • 2
    0148-199 WASHER, THRUST: 0.060 IN.
    WASHER, THRUST: 0.060 IN.
  • 3
    0648-014 BRACKET, TORQUE - 49
    BRACKET, TORQUE - 49
  • 3
    0648-126 BRACKET, TORQUE - 53/51... (OVER 6,000 FT ALT.)
    BRACKET, TORQUE - 53/51... (OVER 6,000 FT ALT.)
  • 4
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 5
    8005-404 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 6
    0648-114 SPRING, DRIVEN CLUTCH - RED/WHITE
    SPRING, DRIVEN CLUTCH - RED/WHITE
  • 6
    0148-227 SPRING, DRIVEN CLUTCH - YELLOW (OVER 6,000 FT ALT.)
    SPRING, DRIVEN CLUTCH - YELLOW (OVER 6,000 FT ALT.)
  • 7
    0748-018 PLATE, ROLLER - ASSEMBLY (INC. ONE NO. 1 AND 8-11)
    PLATE, ROLLER - ASSEMBLY (INC. ONE NO. 1 AND 8-11)
  • 8
    8070-224 ...PIN, SPRING
    ...PIN, SPRING
  • 9
    0648-097 ...PIN, CAM ROLLER
    ...PIN, CAM ROLLER
  • 10
    0648-082 ...WASHER, THRUST - CAM ROLLER
    ...WASHER, THRUST - CAM ROLLER
  • 11
    0648-079 ...ROLLER, CAM
    ...ROLLER, CAM
  • 12
    8040-426 NUT, LOCK
    NUT, LOCK
