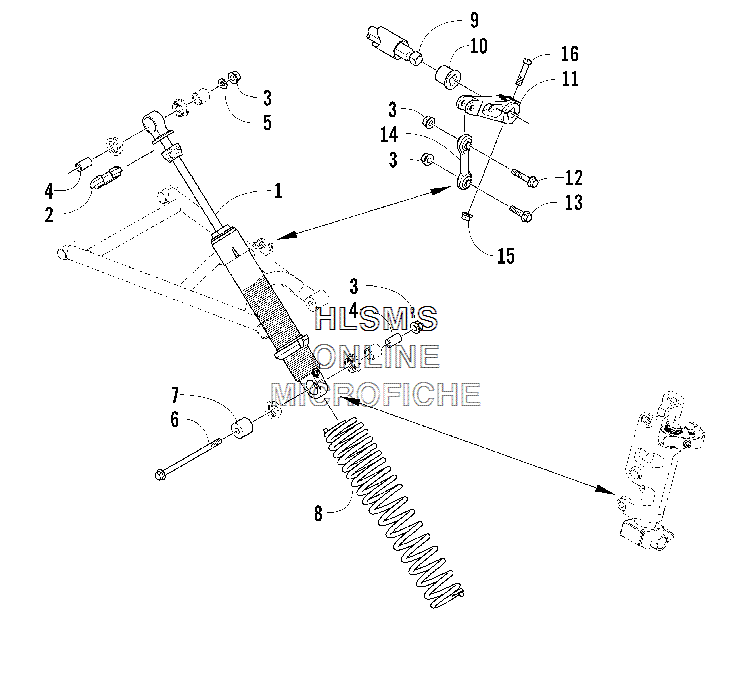

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1703-899 SHOCK, SKI
    SHOCK, SKI
  • 2
    1603-890 RETAINER, SPRING
    RETAINER, SPRING
  • 3
    8047-486 NUT, LOCK
    NUT, LOCK
  • 4
    1603-023 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 5
    0623-991 WASHER, FLAT
    WASHER, FLAT
  • 6
    8020-232 SCREW, CAP (SCREW,CAP-HFH 3/8-16 X 3.25 Z & )
    SCREW, CAP (SCREW,CAP-HFH 3/8-16 X 3.25 Z & )
  • 7
    0603-648 SPACER, SHOCK MOUNT
    SPACER, SHOCK MOUNT
  • 8
    1703-926 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 9
    1703-616 SWAY BAR
    SWAY BAR
  • 10
    1603-211 BEARING
    BEARING
  • 11
    2603-307 ARM, SWAY BAR
    ARM, SWAY BAR
  • 12
    8020-226 SCREW, CAP (3/8-16 X 1.75 Z & )
    SCREW, CAP (3/8-16 X 1.75 Z & )
  • 13
    8020-225 SCREW, CAP (3/8-16 X 1.50 Z & )
    SCREW, CAP (3/8-16 X 1.50 Z & )
  • 14
    1603-002 LINK, SWAY BAR
    LINK, SWAY BAR
  • 15
    8047-426 NUT, LOCK
    NUT, LOCK
  • 16
    8002-137 SCREW, CAP (5/16-18 X2.00 G5)
    SCREW, CAP (5/16-18 X2.00 G5)
