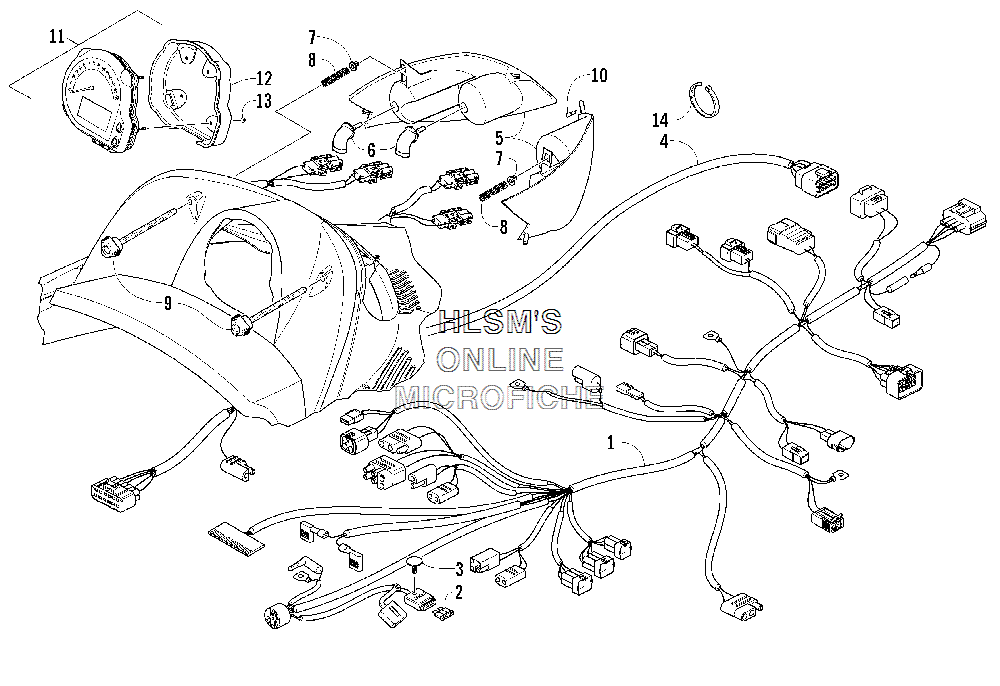

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1686-264 HARNESS, MAIN (INC. 2)
    HARNESS, MAIN (INC. 2)
  • 2
    0630-100 FUSE, 7.5 AMP
    FUSE, 7.5 AMP
  • 3
    0623-589 CLIP, RETAINING
    CLIP, RETAINING
  • 4
    1686-247 HARNESS, HOOD
    HARNESS, HOOD
  • 5
    0609-530 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 6)
    LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 6)
  • 5
    0609-531 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 6)
    LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 6)
  • 6
    0609-251 BULB, HEADLIGHT
    BULB, HEADLIGHT
  • 7
    1623-025 GROMMET, SCREW-PLASTIC
    GROMMET, SCREW-PLASTIC
  • 8
    0623-360 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 9
    1623-024 SCREW, ADJUSTER
    SCREW, ADJUSTER
  • 10
    1623-137 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 11
    0620-292 TACHOMETER/SPEEDOMETER (INC. 12-13)
    TACHOMETER/SPEEDOMETER (INC. 12-13)
  • 12
    0620-281 BRACKET, RETAINING
    BRACKET, RETAINING
  • 13
    0620-280 NUT W/WASHER
    NUT W/WASHER
  • 14
    0123-788 CABLE TIE - 8 IN.
    CABLE TIE - 8 IN.
