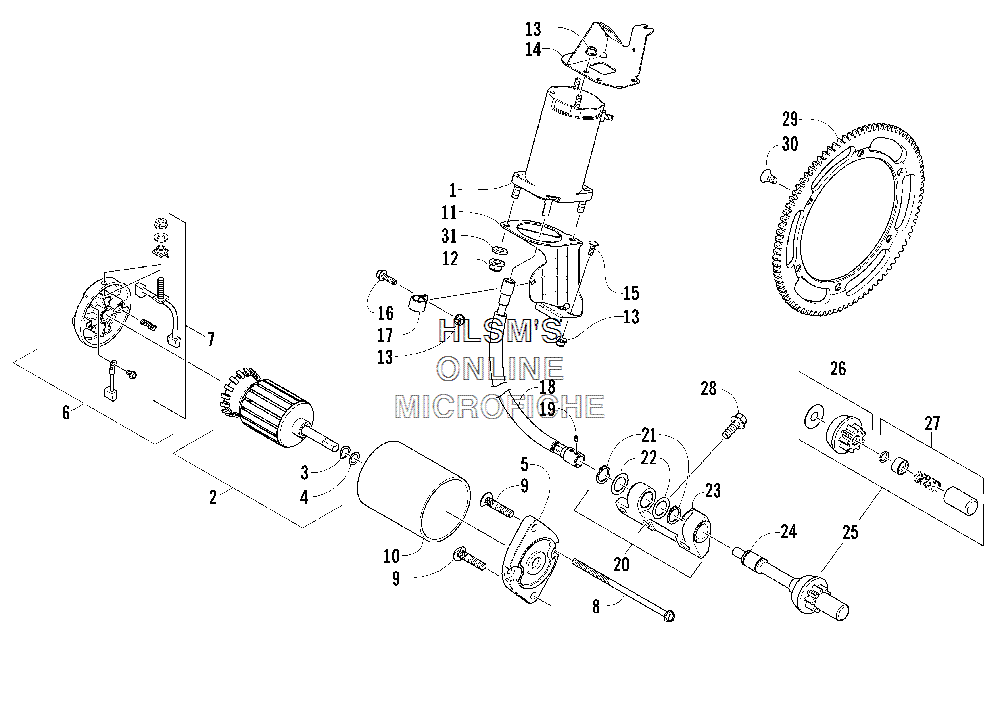

FLEX-DRIVE STARTER MOTOR ASSY. для Arctic Cat Sabercat 700 EFI LX (BLACK) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-143 MOTOR, STARTER - ASSY. (INC. 2-10)
    MOTOR, STARTER - ASSY. (INC. 2-10)
  • 2
    0645-296 ARMATURE ASSY. (INC. 3-4)
    ARMATURE ASSY. (INC. 3-4)
  • 3
    0645-131 WASHER, WAVE
    WASHER, WAVE
  • 4
    0645-293 WASHER, THRUST
    WASHER, THRUST
  • 5
    0645-297 CAP, DRIVE
    CAP, DRIVE
  • 6
    0645-313 CAP, COMMUTATOR (INC. 7)
    CAP, COMMUTATOR (INC. 7)
  • 7
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 8
    0645-128 THROUGH-BOLT (1/4-20X5.75)
    THROUGH-BOLT (1/4-20X5.75)
  • 9
    0623-093 BOLT, RIBBED (5/16-18X1 1/2)
    BOLT, RIBBED (5/16-18X1 1/2)
  • 11
    0745-207 BRACKET, MOUNTING - STARTER MOTOR
    BRACKET, MOUNTING - STARTER MOTOR
  • 12
    8047-426 NUT, HEX FLG-NY LOCK 5/16-18 GR
    NUT, HEX FLG-NY LOCK 5/16-18 GR
  • 13
    8047-366 NUT, HEX FLG-NY LOCK 1/4-20 GR
    NUT, HEX FLG-NY LOCK 1/4-20 GR
  • 14
    0745-260 BRACKET, MOUNTING - STARTER MOTOR
    BRACKET, MOUNTING - STARTER MOTOR
  • 15
    8011-039 BOLT, CARRIAGE (1/4-20X.625 GR1 Z & Y)
    BOLT, CARRIAGE (1/4-20X.625 GR1 Z & Y)
  • 16
    8020-040 SCREW, CAP (1/4-20 X 0.750 Z)
    SCREW, CAP (1/4-20 X 0.750 Z)
  • 17
    1623-080 CLAMP, FLEX-DRIVE SHAFT
    CLAMP, FLEX-DRIVE SHAFT
  • 18
    0745-221 SHAFT, FLEX-DRIVE (INC. TWO NO. 19)
    SHAFT, FLEX-DRIVE (INC. TWO NO. 19)
  • 19
    0623-891 SCREW, SET - SOCKET
    SCREW, SET - SOCKET
  • 20
    0745-208 BRACKET, PINION DRIVE - ASSY. (INC. 21-27)
    BRACKET, PINION DRIVE - ASSY. (INC. 21-27)
  • 21
    0645-382 RING, SNAP
    RING, SNAP
  • 22
    0645-429 WASHER, THRUST (.630I.D. X .915)
    WASHER, THRUST (.630I.D. X .915)
  • 23
    0745-165 BRACKET, PINION DRIVE
    BRACKET, PINION DRIVE
  • 24
    0745-170 DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 25-27)
    DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 25-27)
  • 25
    0745-224 KIT, PINION DRIVE ASSY. (INC. 26-27)
    KIT, PINION DRIVE ASSY. (INC. 26-27)
  • 26
    0645-380 PINION DRIVE ASSY.
    PINION DRIVE ASSY.
  • 27
    0645-186 PINION STOPPER ASSY.
    PINION STOPPER ASSY.
  • 28
    8026-131 SCREW, CAP
    SCREW, CAP
  • 29
    0645-367 RING GEAR
    RING GEAR
  • 30
    1623-128 SCREW, MACHINE - SOCKET HEAD
    SCREW, MACHINE - SOCKET HEAD
  • 31
    0123-053 WASHER, FLAT
    WASHER, FLAT
