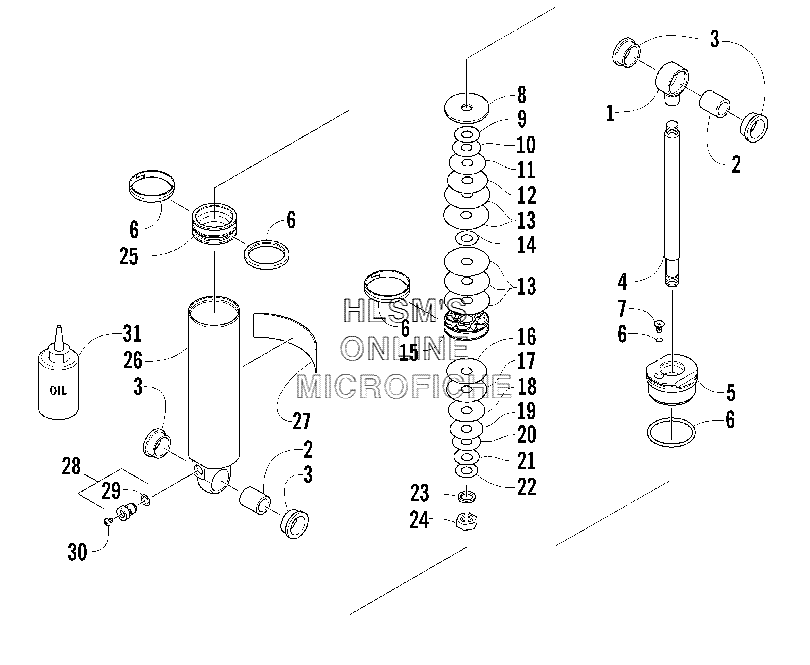

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
10604-893 EYELET, SHOCKEYELET, SHOCK
-
21604-222 BUSHING, SHOCKBUSHING, SHOCK
-
32604-223 SLEEVE, EYELETSLEEVE, EYELET
-
42604-622 ROD, SHOCKROD, SHOCK
-
52604-627 BEARING, ASSYBEARING, ASSY
-
62604-880 SEAL/REBUILD KITSEAL/REBUILD KIT
-
72604-530 SCREWSCREW
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-338 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
100603-341 VALVE, SHOCK 1.000 X 0.010 IN.VALVE, SHOCK 1.000 X 0.010 IN.
-
110603-350 VALVE, SHOCK 1.300 X 0.010 IN.VALVE, SHOCK 1.300 X 0.010 IN.
-
122604-647 VALVE, SHOCK 1.425 X 0.010 IN.VALVE, SHOCK 1.425 X 0.010 IN.
-
132604-631 VALVE, SHOCK 1.600 X 0.010 IN.VALVE, SHOCK 1.600 X 0.010 IN.
-
140603-337 VALVE, SHOCK 0.900 X 0.008 IN.VALVE, SHOCK 0.900 X 0.008 IN.
-
152604-645 PISTON, 0.055 IN., ORIFICEPISTON, 0.055 IN., ORIFICE
-
162604-633 VALVE, SHOCK 1.425 X 0.015 IN.VALVE, SHOCK 1.425 X 0.015 IN.
-
172604-632 VALVE, SHOCK 1.425 X 0.012 IN.VALVE, SHOCK 1.425 X 0.012 IN.
-
180603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
190603-882 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
200603-881 VALVE, SHOCK 1.000 X 0.012 IN.VALVE, SHOCK 1.000 X 0.012 IN.
-
210603-886 VALVE, SHOCK 0.900 X 0.015 IN.VALVE, SHOCK 0.900 X 0.015 IN.
-
220603-885 VALVE, SHOCK 0.800 X 0.015 IN.VALVE, SHOCK 0.800 X 0.015 IN.
-
230603-389 WASHER, BACKUPWASHER, BACKUP
-
240603-301 NUTNUT
-
252604-886 PISTON, FLOATINGPISTON, FLOATING
-
262604-621 BODY, SHOCKBODY, SHOCK
-
272604-889 DECAL, SHOCKDECAL, SHOCK
-
280703-341 VALVE, PRESSURE, ASSY (INC. 29)VALVE, PRESSURE, ASSY (INC. 29)
-
291604-318 O-RINGO-RING
-
300624-097 SCREW, VALVESCREW, VALVE
-
312639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
Все узлы модели:
- A-ARM ASSEMBLY
- AIR INTAKE ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELLY PAN ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- GEARCASE ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- • REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY
- WATER PUMP AND THERMOSTAT
