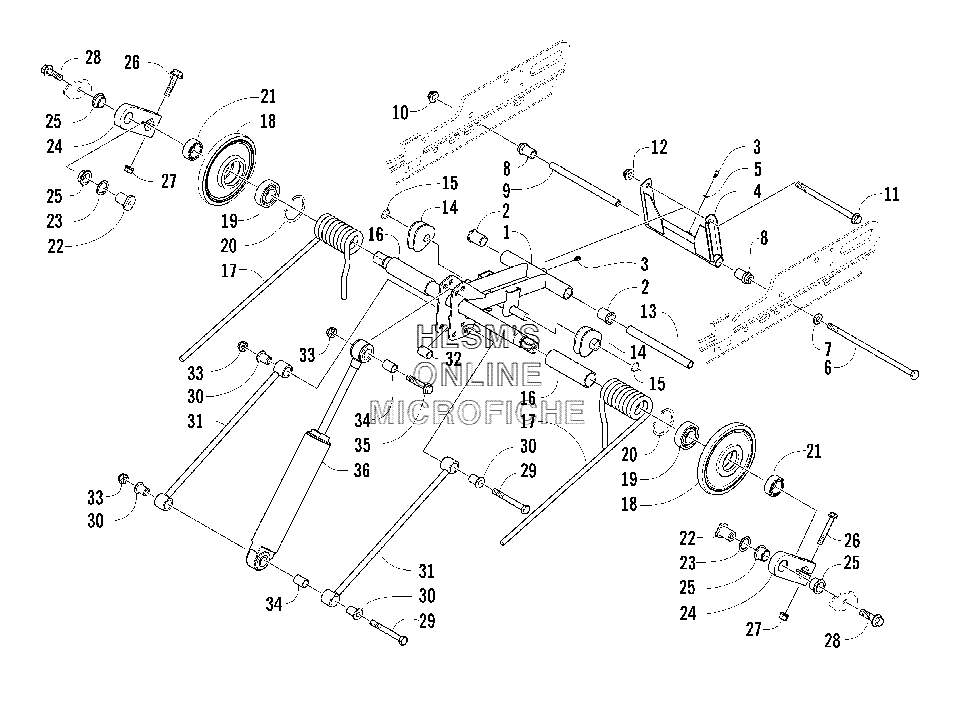

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) INTERNATIONAL - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-404 ARM, IDLER (INC. 2 AND ONE NO. 3)
    ARM, IDLER (INC. 2 AND ONE NO. 3)
  • 2
    1604-100 BUSHING, FLARED
    BUSHING, FLARED
  • 3
    1623-010 FITTING, GREASE, SELF, TAPPING
    FITTING, GREASE, SELF, TAPPING
  • 4
    1704-019 ARM (REAR) (INC. ONE NO. 3 AND 5)
    ARM (REAR) (INC. ONE NO. 3 AND 5)
  • 5
    1623-011 WASHER, GREASE FITTING
    WASHER, GREASE FITTING
  • 6
    1623-037 SCREW, CAP
    SCREW, CAP
  • 7
    8050-272 WASHER
    WASHER
  • 8
    2604-664 BUSHING, ARM (REAR)
    BUSHING, ARM (REAR)
  • 9
    2604-663 AXLE, ARM (REAR) (INNER)
    AXLE, ARM (REAR) (INNER)
  • 10
    8047-490 NUT, LOCK
    NUT, LOCK
  • 11
    1623-086 SCREW, CAP
    SCREW, CAP
  • 12
    8047-486 NUT, LOCK
    NUT, LOCK
  • 13
    2604-370 AXLE, STEEL
    AXLE, STEEL
  • 14
    1604-204 BLOCK, SPRING ADJUSTER (RIGHT)
    BLOCK, SPRING ADJUSTER (RIGHT)
  • 14
    1604-205 BLOCK, SPRING ADJUSTER (LEFT)
    BLOCK, SPRING ADJUSTER (LEFT)
  • 15
    0623-138 RING, RETAINING
    RING, RETAINING
  • 16
    3604-024 SLEEVE, SPRING
    SLEEVE, SPRING
  • 17
    1704-044 SPRING, SUSPENSION (RIGHT)
    SPRING, SUSPENSION (RIGHT)
  • 17
    1704-045 SPRING, SUSPENSION (LEFT)
    SPRING, SUSPENSION (LEFT)
  • 18
    1604-690 WHEEL, IDLER (INC. 19, 20)
    WHEEL, IDLER (INC. 19, 20)
  • 19
    0107-598 BEARING
    BEARING
  • 20
    0123-798 RING, RETAINING
    RING, RETAINING
  • 21
    2604-980 SPACER, PIVOT, IDLER ARM
    SPACER, PIVOT, IDLER ARM
  • 22
    1604-181 AXLE, POWDER METAL
    AXLE, POWDER METAL
  • 23
    1604-187 WASHER, PIVOT, IDLER ARM
    WASHER, PIVOT, IDLER ARM
  • 24
    0704-981 ARM, PIVOT IDLER (INC. 25, 27)
    ARM, PIVOT IDLER (INC. 25, 27)
  • 25
    1604-202 BUSHING, FLARED
    BUSHING, FLARED
  • 26
    8020-138 SCREW, CAP
    SCREW, CAP
  • 27
    8048-426 NUT, LOCK
    NUT, LOCK
  • 28
    1623-166 SCREW, CAP
    SCREW, CAP
  • 29
    0623-793 SCREW, CAP
    SCREW, CAP
  • 30
    1604-498 AXLE, LINK, FLANGED
    AXLE, LINK, FLANGED
  • 31
    1704-416 LINK, SHOCK (REAR)
    LINK, SHOCK (REAR)
  • 32
    0704-854 SPACER, SHOCK LINK
    SPACER, SHOCK LINK
  • 33
    8041-486 NUT, LOCK
    NUT, LOCK
  • 34
    1604-139 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 35
    8020-226 SCREW, CAP
    SCREW, CAP
  • 36
    1704-484 SHOCK ABSORBER, ARM (REAR)
    SHOCK ABSORBER, ARM (REAR)
