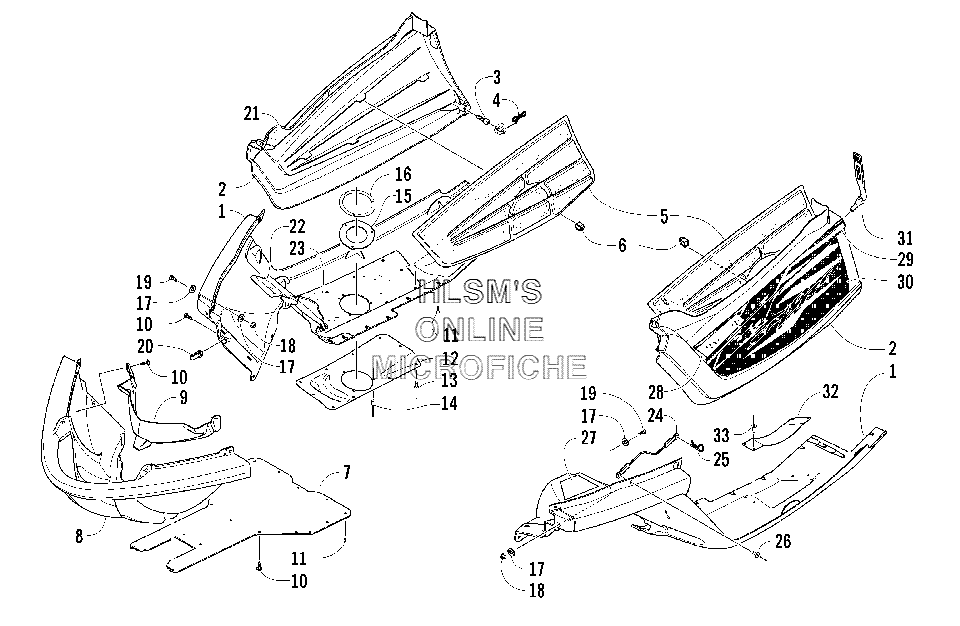

BELLY PAN ASSEMBLY для Arctic Cat CROSSFIRE 700 EFI SNO PRO (ORANGE) INTERNATIONAL - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3706-218 BELLY PAN (RIGHT)
    BELLY PAN (RIGHT)
  • 1
    3706-213 BELLY PAN (LEFT)
    BELLY PAN (LEFT)
  • 2
    4606-260 PANEL, ACCESS (RIGHT)
    PANEL, ACCESS (RIGHT)
  • 2
    4606-261 PANEL, ACCESS (LEFT)
    PANEL, ACCESS (LEFT)
  • 3
    1623-531 SCREW, RETAINING, ACCESS PANEL
    SCREW, RETAINING, ACCESS PANEL
  • 4
    1623-546 PIN, RETAINING
    PIN, RETAINING
  • 5
    0617-502 FOAM, SIDE PANEL (RIGHT)
    FOAM, SIDE PANEL (RIGHT)
  • 5
    0617-503 FOAM, SIDE PANEL (LEFT)
    FOAM, SIDE PANEL (LEFT)
  • 6
    0123-394 CLIP, RETAINING
    CLIP, RETAINING
  • 7
    3606-867 BELLY PAN (CENTER)
    BELLY PAN (CENTER)
  • 8
    4606-043 BUMPER (FRONT)
    BUMPER (FRONT)
  • 9
    2606-911 SCREEN, BELLY PAN (CENTER)
    SCREEN, BELLY PAN (CENTER)
  • 10
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 12
    1712-189 SHIELD, HEAT
    SHIELD, HEAT
  • 13
    8060-510 RIVET, BLIND
    RIVET, BLIND
  • 14
    0623-778 RIVET
    RIVET
  • 15
    1612-893 SEAL, EXHAUST, OUTLET
    SEAL, EXHAUST, OUTLET
  • 16
    1712-174 PLATE, EXHAUST, OUTLET
    PLATE, EXHAUST, OUTLET
  • 17
    8050-217 WASHER
    WASHER
  • 18
    8047-366 NUT, LOCK
    NUT, LOCK
  • 19
    8017-581 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1623-030 NUT, SPEED
    NUT, SPEED
  • 21
    4606-157 FOIL, PROTECTIVE, ACCESS PANEL
    FOIL, PROTECTIVE, ACCESS PANEL
  • 22
    4606-266 FOIL, PROTECTIVE (UPPER)
    FOIL, PROTECTIVE (UPPER)
  • 23
    4606-267 FOIL, PROTECTIVE (LOWER)
    FOIL, PROTECTIVE (LOWER)
  • 24
    0607-447 CABLE
    CABLE
  • 25
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 26
    8061-426 RIVET
    RIVET
  • 27
    7611-156 DECAL, CLUTCHING
    DECAL, CLUTCHING
  • 28
    7611-160 DECAL, REFLECTOR (AMBER/RIGHT)
    DECAL, REFLECTOR (AMBER/RIGHT)
  • 28
    7611-161 DECAL, REFLECTOR (AMBER/LEFT)
    DECAL, REFLECTOR (AMBER/LEFT)
  • 29
    7611-464 DECAL, ACCESS PANEL (UPPER/RIGHT)
    DECAL, ACCESS PANEL (UPPER/RIGHT)
  • 29
    7611-465 DECAL, ACCESS PANEL (UPPER/LEFT)
    DECAL, ACCESS PANEL (UPPER/LEFT)
  • 30
    7611-466 DECAL, ACCESS PANEL (LOWER/RIGHT)
    DECAL, ACCESS PANEL (LOWER/RIGHT)
  • 30
    7611-467 DECAL, ACCESS PANEL (LOWER/LEFT)
    DECAL, ACCESS PANEL (LOWER/LEFT)
  • 31
    2606-624 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 32
    4606-381 PROTECTOR, BELLY PAN
    PROTECTOR, BELLY PAN
  • 33
    8061-506 RIVET
    RIVET
