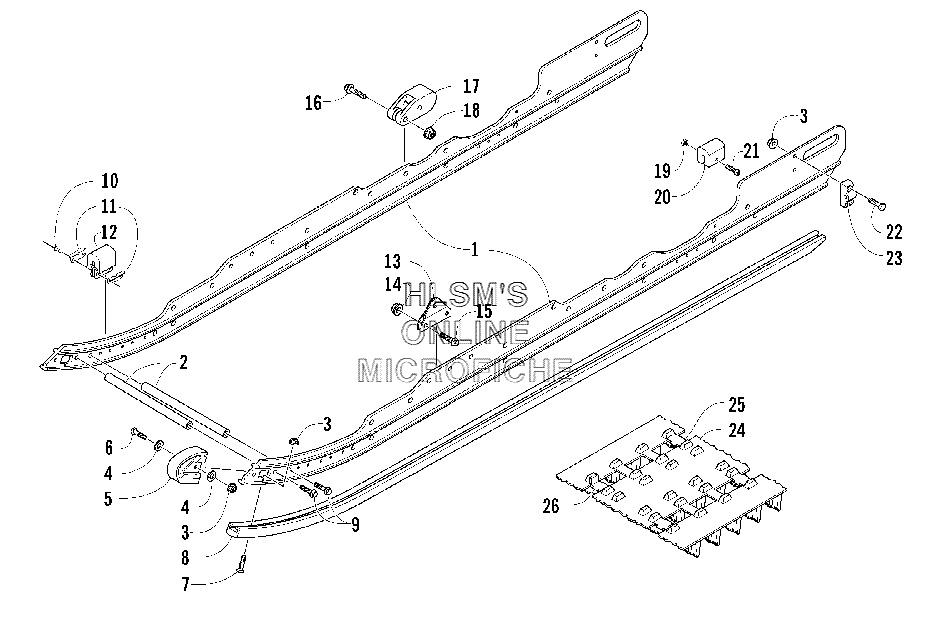

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo - 2006 года выпуска`
-
№АртикулНазвание
-
12604-859 RAIL, FORMEDRAIL, FORMED
-
20604-938 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-043 SCREW, CAPSCREW, CAP
-
70123-859 SCREW, MACHINESCREW, MACHINE
-
83604-099 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
98020-134 SCREW, CAPSCREW, CAP
-
108060-633 RIVETRIVET
-
110604-967 BRACKET, RETAININGBRACKET, RETAINING
-
120604-918 PAD, SHOCKPAD, SHOCK
-
130704-395 BRACKET, MOUNTING, ARM (FRONT)BRACKET, MOUNTING, ARM (FRONT)
-
148047-426 NUT, LOCKNUT, LOCK
-
158020-132 SCREW, CAPSCREW, CAP
-
168020-227 SCREW, CAPSCREW, CAP
-
171604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
188047-486 NUT, LOCKNUT, LOCK
-
198041-246 NUT, LOCKNUT, LOCK
-
201604-429 PAD, SHOCKPAD, SHOCK
-
218017-405 SCREW, MACHINESCREW, MACHINE
-
228002-042 SCREW, CAPSCREW, CAP
-
230704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
241602-869 TRACK ASSY (INC. 25, 26)TRACK ASSY (INC. 25, 26)
-
250602-541 CLIP, WEARCLIP, WEAR
-
260602-488 CLIP, GUIDECLIP, GUIDE
