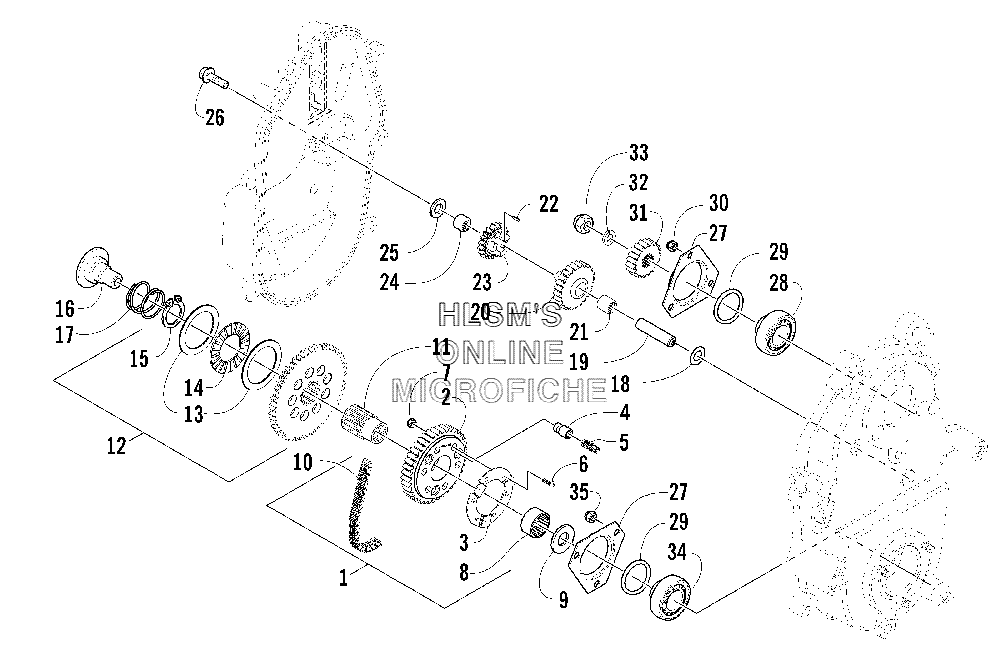

DRIVE/REVERSE DROPCASE ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo - 2006 года выпуска`
-
№АртикулНазвание
-
10702-630 SPROCKET ASSY (44 TEETH/15 WIDE)SPROCKET ASSY (44 TEETH/15 WIDE)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
100602-972 CHAIN, 72P (15 WIDE)CHAIN, 72P (15 WIDE)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
160602-783 RETAINER, SHAFTRETAINER, SHAFT
-
170602-028 SPRING, RETURNSPRING, RETURN
-
180602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
190602-094 SHAFT, REVERSESHAFT, REVERSE
-
200702-449 IDLER, REVERSE, ASSY (20 TEETH) (INC. 21)IDLER, REVERSE, ASSY (20 TEETH) (INC. 21)
-
210602-018 BEARINGBEARING
-
220602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
230702-366 IDLER, REVERSE, ASSY (19 TEETH) (INC. 24)IDLER, REVERSE, ASSY (19 TEETH) (INC. 24)
-
241602-045 BEARINGBEARING
-
251602-044 WASHER, THRUSTWASHER, THRUST
-
268020-130 SCREW, CAPSCREW, CAP
-
271602-521 PLATE, FLANGEPLATE, FLANGE
-
281602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
290107-003 O-RINGO-RING
-
308041-426 NUT, LOCKNUT, LOCK
-
310602-995 SPROCKET (18 TEETH/15 WIDE)SPROCKET (18 TEETH/15 WIDE)
-
320623-231 WASHER, SPRINGWASHER, SPRING
-
330623-465 NUT, LOCKNUT, LOCK
-
341602-051 BEARING, 1 IN.BEARING, 1 IN.
-
358040-426 NUT, LOCKNUT, LOCK
