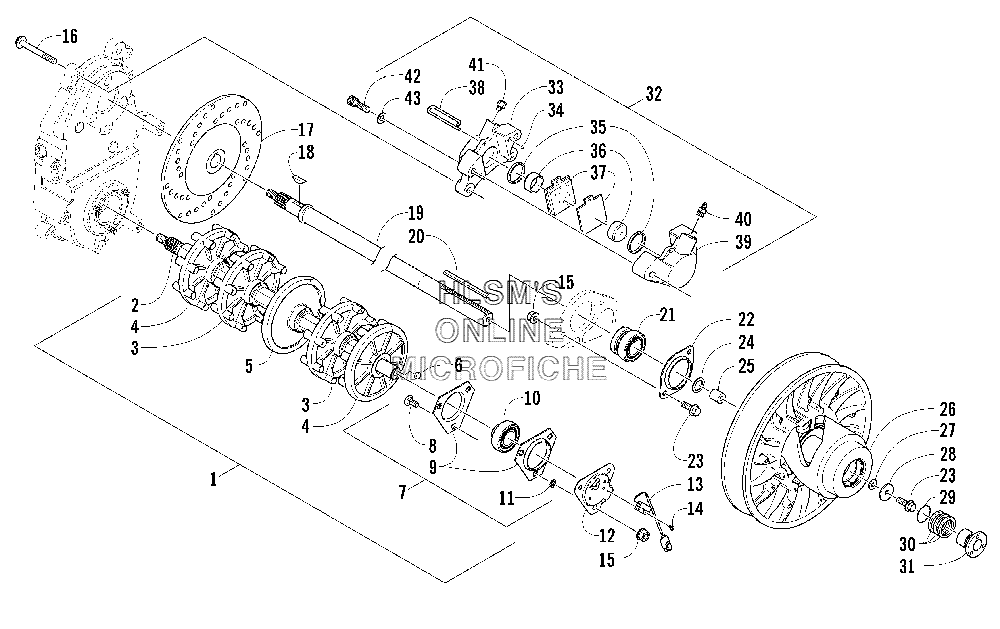

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Bearcat WIDE TRACK Turbo - 2006 года выпуска`
-
№АртикулНазвание
-
10728-152 TRACK DRIVE ASSY (INC. 2, 11)TRACK DRIVE ASSY (INC. 2, 11)
-
21602-857 DRIVESHAFTDRIVESHAFT
-
31602-574 SPROCKET, DRIVE (INNER)SPROCKET, DRIVE (INNER)
-
41602-854 SPROCKET, DRIVE (OUTER)SPROCKET, DRIVE (OUTER)
-
51602-878 IDLER (CENTER)IDLER (CENTER)
-
60630-167 MAGNET, DISCMAGNET, DISC
-
70702-567 PLATE, FLANGE, BEARING ASSY (INC. 8, 11)PLATE, FLANGE, BEARING ASSY (INC. 8, 11)
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
90602-198 PLATE, FLANGEPLATE, FLANGE
-
101602-374 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
110623-810 RING, SOLDERRING, SOLDER
-
123606-244 BRACKET, SENSORBRACKET, SENSOR
-
130630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
140623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158048-426 NUT, LOCKNUT, LOCK
-
168020-315 SCREW, CAPSCREW, CAP
-
171602-205 DISC, BRAKEDISC, BRAKE
-
180602-598 KEYKEY
-
190702-755 SHAFT, DRIVENSHAFT, DRIVEN
-
200602-170 KEYKEY
-
211602-879 BEARING, 1 IN.BEARING, 1 IN.
-
220602-892 PLATE, FLANGEPLATE, FLANGE
-
238020-130 SCREW, CAPSCREW, CAP
-
240623-118 WASHERWASHER
-
240623-119 WASHERWASHER
-
252604-713 SPACERSPACER
-
260726-218 CLUTCH, DRIVENCLUTCH, DRIVEN
-
270123-053 WASHERWASHER
-
280123-260 WASHERWASHER
-
290648-441 O-RINGO-RING
-
300648-714 WASHERWASHER
-
300648-715 WASHERWASHER
-
300648-716 WASHERWASHER
-
310648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
320602-829 CALIPER, BRAKE, ASSY (INC. 33, 43)CALIPER, BRAKE, ASSY (INC. 33, 43)
-
340602-729 O-RING, HOUSINGO-RING, HOUSING
-
350602-583 O-RINGO-RING
-
360602-708 PISTONPISTON
-
370702-229 PAD, BRAKE, SET (INC. 38)PAD, BRAKE, SET (INC. 38)
-
380602-706 PIN, RETAININGPIN, RETAINING
-
400602-707 SCREW, BLEED, ASSYSCREW, BLEED, ASSY
-
410602-590 FITTING, ADAPTERFITTING, ADAPTER
-
428005-677 SCREW, CAPSCREW, CAP
-
438050-272 WASHERWASHER
