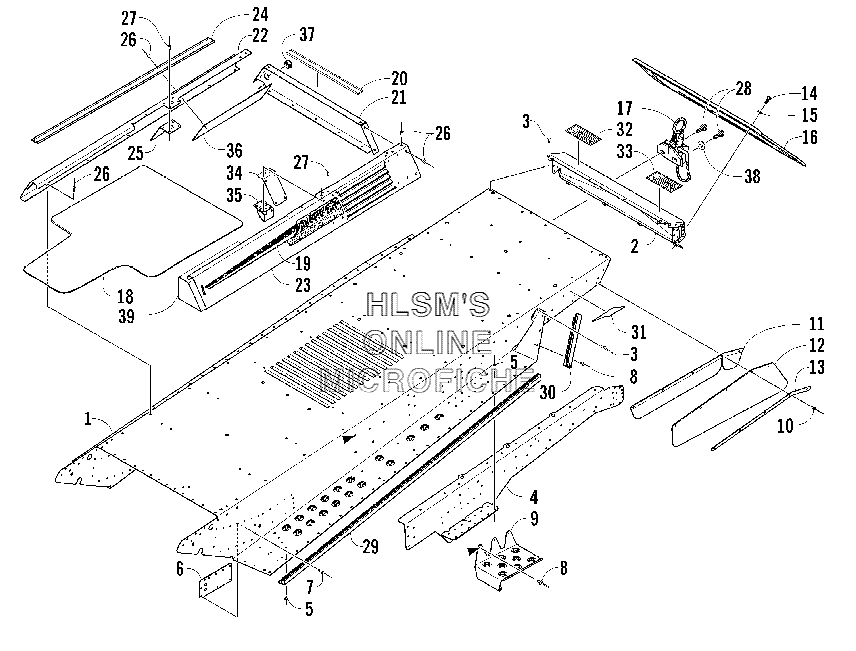

TUNNEL AND REAR BUMPER ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11718-942 TUNNEL ASSY (INC. 2, 5)TUNNEL ASSY (INC. 2, 5)
-
22706-935 BUMPER (REAR)BUMPER (REAR)
-
38060-484 RIVETRIVET
-
40707-966 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
40707-967 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
50123-418 RIVETRIVET
-
62706-277 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
70623-072 RIVETRIVET
-
88060-486 RIVETRIVET
-
94606-006 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
94606-007 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
108060-508 RIVETRIVET
-
113706-280 BRACKET, SIDE SNOWFLAP (RIGHT)BRACKET, SIDE SNOWFLAP (RIGHT)
-
113706-281 BRACKET, SIDE SNOWFLAP (LEFT)BRACKET, SIDE SNOWFLAP (LEFT)
-
124606-115 SNOWFLAP (SIDE)SNOWFLAP (SIDE)
-
132706-971 RETAINER, SIDE SNOWFLAPRETAINER, SIDE SNOWFLAP
-
148017-580 SCREW, MACHINESCREW, MACHINE
-
158050-217 WASHERWASHER
-
163606-740 SNOWFLAPSNOWFLAP
-
174606-156 HITCH, PINTLEHITCH, PINTLE
-
183606-961 PAD, TOOLBOXPAD, TOOLBOX
-
196611-532 DECAL, TUNNEL RISER (RIGHT)DECAL, TUNNEL RISER (RIGHT)
-
196611-533 DECAL, TUNNEL RISER (LEFT)DECAL, TUNNEL RISER (LEFT)
-
202606-924 SEAL, SEAT, BASESEAL, SEAT, BASE
-
213706-341 PLATE, SEAT RISER (REAR)PLATE, SEAT RISER (REAR)
-
223706-342 PLATE, SEAT RISER (RIGHT)PLATE, SEAT RISER (RIGHT)
-
233706-343 PLATE, SEAT RISER (LEFT)PLATE, SEAT RISER (LEFT)
-
243606-960 SEAL, SEAT, BASESEAL, SEAT, BASE
-
252706-282 BRACKET, RISER REINFORCEMENTBRACKET, RISER REINFORCEMENT
-
268060-706 RIVETRIVET
-
278060-504 RIVETRIVET
-
281623-248 SCREW, CAPSCREW, CAP
-
294606-283 ROLL, TUNNELROLL, TUNNEL
-
304606-306 ROLL, TUNNEL (REAR/RIGHT)ROLL, TUNNEL (REAR/RIGHT)
-
304606-307 ROLL, TUNNEL (REAR/LEFT)ROLL, TUNNEL (REAR/LEFT)
-
316611-688 DECAL, REFLECTOR (RIGHT)DECAL, REFLECTOR (RIGHT)
-
316611-689 DECAL, REFLECTOR (LEFT)DECAL, REFLECTOR (LEFT)
-
325611-852 DECAL, WARNING (FRENCH)DECAL, WARNING (FRENCH)
-
335611-853 DECAL, WARNING (ENGLISH)DECAL, WARNING (ENGLISH)
-
342706-966 BRACKET, HINGE REINFORCEMENTBRACKET, HINGE REINFORCEMENT
-
350623-579 HINGE, SEATHINGE, SEAT
-
363706-140 COVER, LOUVER (RIGHT)COVER, LOUVER (RIGHT)
-
363706-141 COVER, LOUVER (LEFT)COVER, LOUVER (LEFT)
-
374606-113 GROMMETGROMMET
-
388050-272 WASHERWASHER
-
390617-536 FOAM, SEAT RISERFOAM, SEAT RISER
