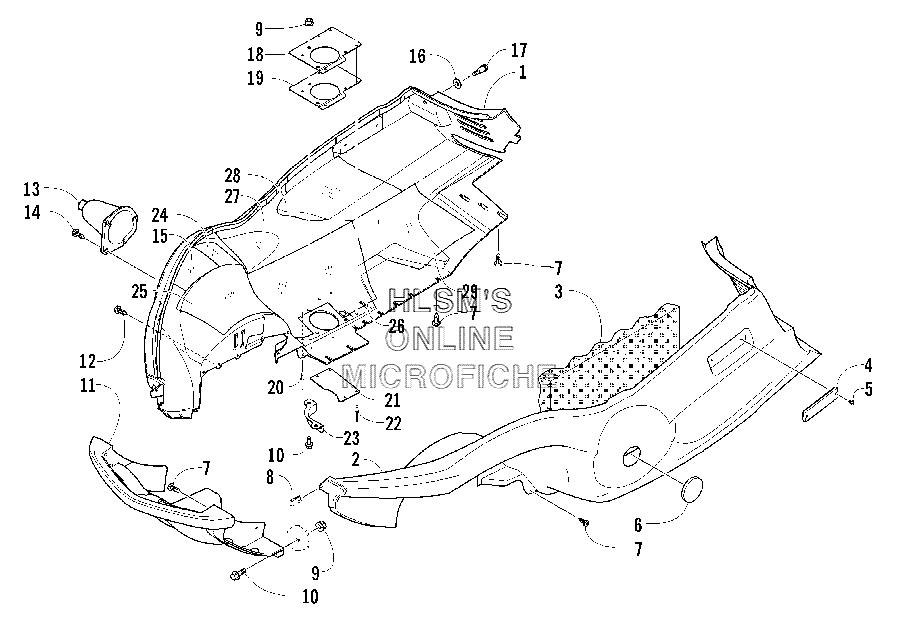

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo INTERNATIONAL - 2006 года выпуска`
-
№АртикулНазвание
-
13706-286 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
24606-021 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
50623-269 CLIP, RETAININGCLIP, RETAINING
-
61623-412 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-427 NUT, UNUT, U
-
98048-366 NUT, LOCKNUT, LOCK
-
108020-040 SCREW, CAPSCREW, CAP
-
113606-989 BUMPER (FRONT)BUMPER (FRONT)
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
130605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
140623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
150619-206 TAPE, FOILTAPE, FOIL
-
168050-217 WASHERWASHER
-
170623-855 SCREW, SHOULDERSCREW, SHOULDER
-
181712-047 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
191612-870 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
208061-490 RIVETRIVET
-
211712-049 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
228060-510 RIVETRIVET
-
230712-879 DEFLECTOR, EXHAUST OUTLETDEFLECTOR, EXHAUST OUTLET
-
244606-362 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
254606-361 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
264606-364 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
274606-365 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
284606-363 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
294606-366 FOIL, PROTECTIVEFOIL, PROTECTIVE
