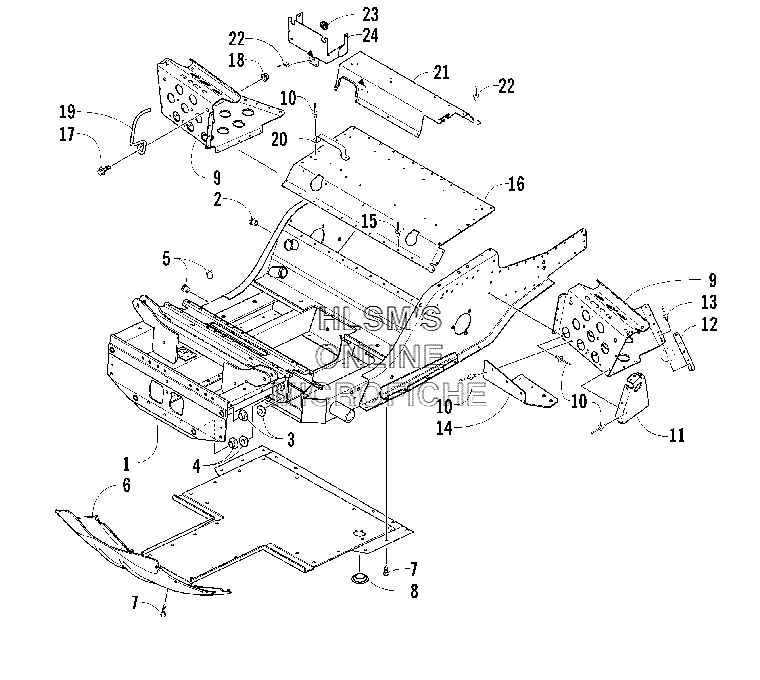

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Bearcat WIDE TRACK Turbo INTERNATIONAL - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-086 CHASSIS ASSY (INC. 2, 5)
    CHASSIS ASSY (INC. 2, 5)
  • 2
    0623-581 INSERT
    INSERT
  • 3
    0607-421 INSERT, A-ARM MOUNT (UPPER)
    INSERT, A-ARM MOUNT (UPPER)
  • 4
    0607-420 INSERT, A-ARM MOUNT (LOWER)
    INSERT, A-ARM MOUNT (LOWER)
  • 5
    0623-582 INSERT
    INSERT
  • 6
    3706-114 BELLY PAN (CENTER)
    BELLY PAN (CENTER)
  • 7
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    2606-367 PLUG, OIL DRAIN ACCESS
    PLUG, OIL DRAIN ACCESS
  • 9
    2606-274 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 9
    2606-275 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 10
    0623-166 RIVET
    RIVET
  • 11
    0607-676 BRACKET, FOOTREST (RIGHT)
    BRACKET, FOOTREST (RIGHT)
  • 11
    0607-677 BRACKET, FOOTREST (LEFT)
    BRACKET, FOOTREST (LEFT)
  • 12
    2706-110 PLATE, BACKING, FOOTREST
    PLATE, BACKING, FOOTREST
  • 13
    0623-282 RIVET
    RIVET
  • 14
    0607-678 PLATE, BACKING, FOOTREST (RIGHT)
    PLATE, BACKING, FOOTREST (RIGHT)
  • 14
    0607-679 PLATE, BACKING, FOOTREST (LEFT)
    PLATE, BACKING, FOOTREST (LEFT)
  • 15
    0123-418 RIVET
    RIVET
  • 16
    4606-060 COVER (FRONT)
    COVER (FRONT)
  • 17
    8020-040 SCREW, CAP
    SCREW, CAP
  • 18
    8048-366 NUT, LOCK
    NUT, LOCK
  • 19
    0745-200 BRACKET, HARNESS
    BRACKET, HARNESS
  • 20
    0707-710 BRACKET, HOLD, DOWN
    BRACKET, HOLD, DOWN
  • 21
    0607-864 SUPPORT, GAS TANK
    SUPPORT, GAS TANK
  • 22
    8060-484 RIVET
    RIVET
  • 23
    0645-359 MOUNT, ECU
    MOUNT, ECU
  • 24
    0745-271 BRACKET, FUSEBOX/ECU
    BRACKET, FUSEBOX/ECU
