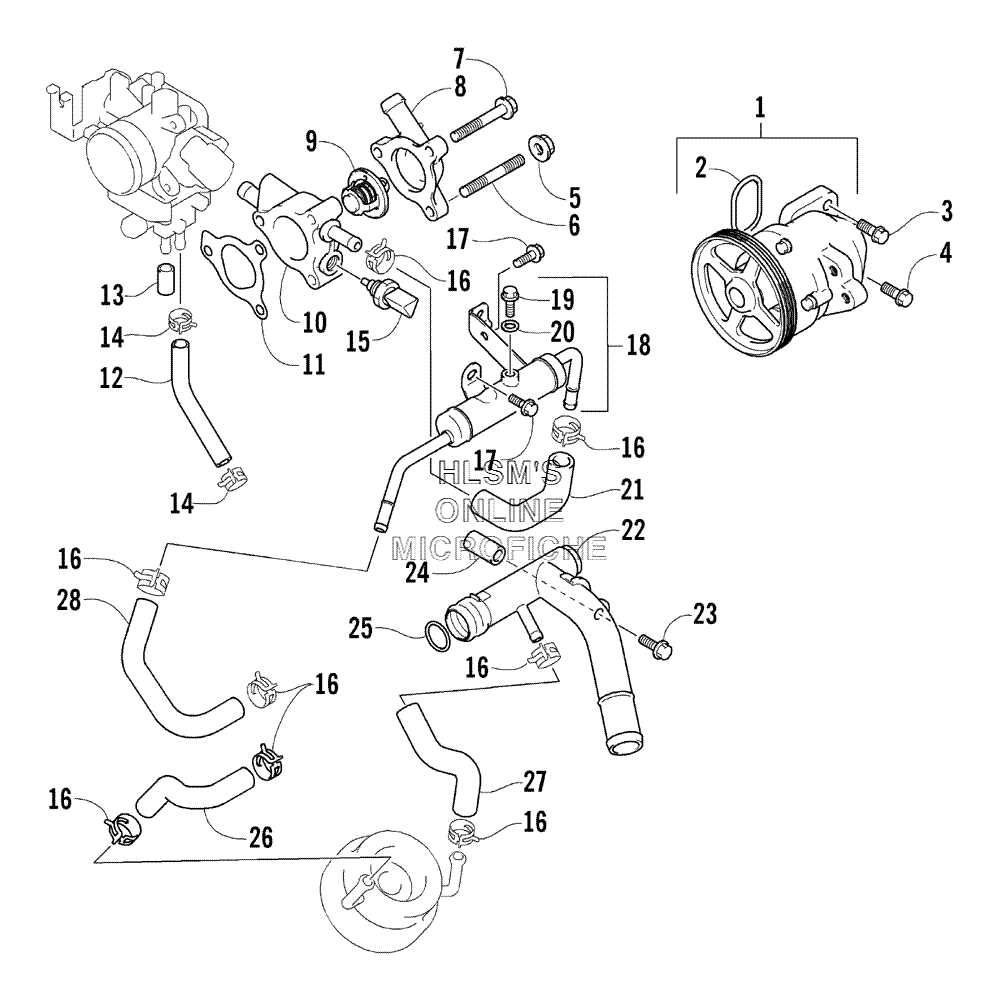

WATER PUMP AND THERMOSTAT ASSEMBLIES для Arctic Cat T660 Turbo ST (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
13006-910 WATER PUMP (INC. 2)WATER PUMP (INC. 2)
-
23006-953 O-RINGO-RING
-
33008-533 BOLTBOLT
-
43004-948 BOLTBOLT
-
53004-326 NUTNUT
-
63006-375 BOLT, STUDBOLT, STUD
-
73004-370 BOLTBOLT
-
83006-228 CAP, THERMOSTATCAP, THERMOSTAT
-
93006-230 THERMOSTATTHERMOSTAT
-
103006-836 CASE, THERMOSTATCASE, THERMOSTAT
-
113006-232 GASKETGASKET
-
123006-600 HOSE, THROTTLE BODY INTAKE MANIFOLDHOSE, THROTTLE BODY INTAKE MANIFOLD
-
133006-120 PLUGPLUG
-
143006-128 CLAMP, HOSECLAMP, HOSE
-
153006-212 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
163006-602 CLAMP, HOSECLAMP, HOSE
-
173004-338 BOLTBOLT
-
183006-839 TANK, WATER (INC. 19, 20)TANK, WATER (INC. 19, 20)
-
193006-598 UNION, AIR VENTUNION, AIR VENT
-
203006-599 GASKETGASKET
-
213006-595 HOSE, THERMOSTAT/WATER TANKHOSE, THERMOSTAT/WATER TANK
-
223006-594 PIPE, WATER INLETPIPE, WATER INLET
-
230693-303 BOLTBOLT
-
243006-114 SPACERSPACER
-
253006-234 O-RINGO-RING
-
263006-838 HOSE, TURBOCHARGER/OIL COOLERHOSE, TURBOCHARGER/OIL COOLER
-
273006-596 HOSE, OIL COOLER INLET PIPEHOSE, OIL COOLER INLET PIPE
-
283006-837 HOSE, WATER TANK/TURBOCHARGERHOSE, WATER TANK/TURBOCHARGER
