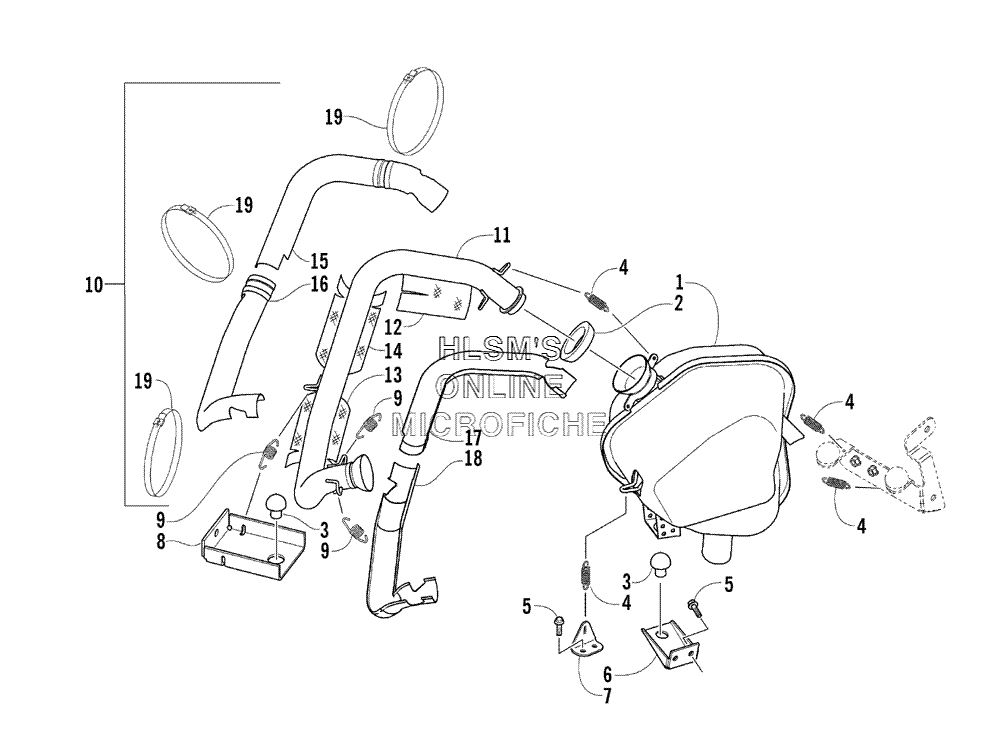

EXHAUST ASSEMBLY для Arctic Cat T660 Turbo ST (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-171 RESONATOR
    RESONATOR
  • 2
    1612-323 GASKET, EXHAUST
    GASKET, EXHAUST
  • 3
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
  • 4
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 5
    8020-040 SCREW, CAP
    SCREW, CAP
  • 6
    1712-038 BRACKET, MOUNTING, RESONATOR
    BRACKET, MOUNTING, RESONATOR
  • 7
    1612-763 BRACKET, SPRING RETAINING
    BRACKET, SPRING RETAINING
  • 8
    1712-046 BRACKET, MOUNTING, EXHAUST PIPE
    BRACKET, MOUNTING, EXHAUST PIPE
  • 9
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 10
    1712-048 PIPE, EXHAUST, ASSEMBLY (INC. 11, 19)
    PIPE, EXHAUST, ASSEMBLY (INC. 11, 19)
  • 11
    1712-006 PIPE, EXHAUST
    PIPE, EXHAUST
  • 12
    1612-818 PACKING, EXHAUST PIPE (RIGHT)
    PACKING, EXHAUST PIPE (RIGHT)
  • 13
    1612-819 PACKING, EXHAUST PIPE (LEFT)
    PACKING, EXHAUST PIPE (LEFT)
  • 14
    1612-820 PACKING, EXHAUST PIPE, CENTER
    PACKING, EXHAUST PIPE, CENTER
  • 15
    1612-768 COVER, EXHAUST PIPE (UPPER/RIGHT)
    COVER, EXHAUST PIPE (UPPER/RIGHT)
  • 16
    1612-769 COVER, EXHAUST PIPE (UPPER/LEFT)
    COVER, EXHAUST PIPE (UPPER/LEFT)
  • 17
    1612-770 COVER, EXHAUST PIPE (LOWER/RIGHT)
    COVER, EXHAUST PIPE (LOWER/RIGHT)
  • 18
    1612-771 COVER, EXHAUST PIPE (LOWER/LEFT)
    COVER, EXHAUST PIPE (LOWER/LEFT)
  • 19
    0423-524 TIE, BAND, 10 IN.
    TIE, BAND, 10 IN.
