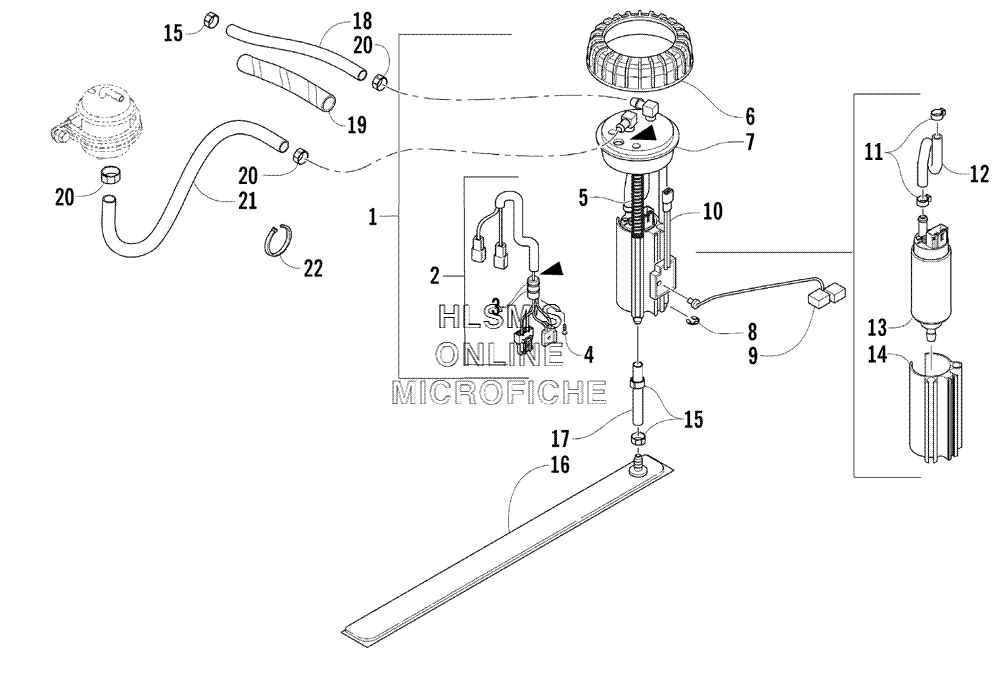

FUEL PUMP ASSEMBLY для Arctic Cat T660 Turbo ST (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-575 PUMP, FUEL, ASSEMBLY (INC. 2, 14)
    PUMP, FUEL, ASSEMBLY (INC. 2, 14)
  • 2
    1670-612 HARNESS, FUEL PUMP (INC. 3)
    HARNESS, FUEL PUMP (INC. 3)
  • 3
    0670-381 O-RING
    O-RING
  • 4
    1670-412 SCREW, MACHINE, HARNESS
    SCREW, MACHINE, HARNESS
  • 5
    1670-156 SPRING, FUEL PUMP ASSEMBLY
    SPRING, FUEL PUMP ASSEMBLY
  • 6
    1670-119 NUT, RETAINING, FUEL PUMP
    NUT, RETAINING, FUEL PUMP
  • 7
    1670-118 SEAL, FUEL PUMP HOUSING
    SEAL, FUEL PUMP HOUSING
  • 8
    1670-244 RING, RETAINING
    RING, RETAINING
  • 9
    0670-460 ARM, FLOAT
    ARM, FLOAT
  • 10
    1670-408 ELEMENT, FUEL SENSOR
    ELEMENT, FUEL SENSOR
  • 11
    1670-159 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    1670-521 HOSE, FUEL PUMP, TOP
    HOSE, FUEL PUMP, TOP
  • 13
    1670-531 PUMP, FUEL
    PUMP, FUEL
  • 14
    1670-413 HOUSING, FUEL PUMP
    HOUSING, FUEL PUMP
  • 15
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    1670-572 PICKUP, FUEL
    PICKUP, FUEL
  • 17
    0610-548 HOSE, GASLINE
    HOSE, GASLINE
  • 18
    0610-513 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 19
    0716-507 LOOM, PROTECTIVE
    LOOM, PROTECTIVE
  • 20
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0610-075 HOSE, GASLINE (10 FT)
    HOSE, GASLINE (10 FT)
  • 22
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
