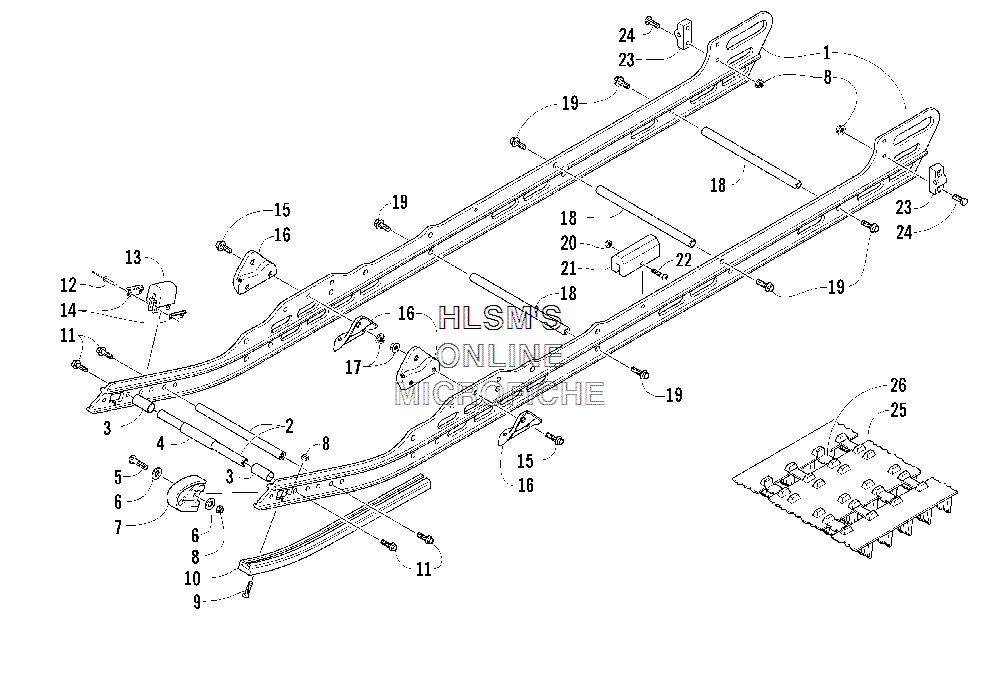

SLIDE RAIL AND TRACK ASSY. для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2604-869 RAIL, FORMED, STAMPED
    RAIL, FORMED, STAMPED
  • 2
    0604-426 SUPPORT, RAIL
    SUPPORT, RAIL
  • 3
    2604-659 SPACER, AL-.750 X .058 X 1.50
    SPACER, AL-.750 X .058 X 1.50
  • 4
    2604-660 SPACER, AL-.750 X .058 X 2.50
    SPACER, AL-.750 X .058 X 2.50
  • 5
    8002-043 SCREW, CAP-HH 1/4-20 X1.125 G5
    SCREW, CAP-HH 1/4-20 X1.125 G5
  • 6
    8050-217 WASHER, FLAT- 1/4 X .625 X .065
    WASHER, FLAT- 1/4 X .625 X .065
  • 7
    2604-724 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8047-366 NUT, LOCK
    NUT, LOCK
  • 9
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    2604-467 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 11
    8020-134 SCREW, CAP-HFH 5/16-18 X 1.25 G
    SCREW, CAP-HFH 5/16-18 X 1.25 G
  • 12
    8060-633 RIVET, BLIND-DH AA614 BLK
    RIVET, BLIND-DH AA614 BLK
  • 13
    0604-918 PAD, SHOCK
    PAD, SHOCK
  • 14
    0604-967 BRACKET, RETAINING
    BRACKET, RETAINING
  • 15
    8020-131 SCREW, CAP-HFH 5/16-18 X0.875 G
    SCREW, CAP-HFH 5/16-18 X0.875 G
  • 16
    2604-593 BRACKET, MOUNTING, FRONT ARM
    BRACKET, MOUNTING, FRONT ARM
  • 17
    8048-426 NUT, LOCK
    NUT, LOCK
  • 18
    0604-930 AXLE, ALUMINUM
    AXLE, ALUMINUM
  • 19
    8020-222 SCREW, CAP-HFH 3/8-16 X 1.00 G5
    SCREW, CAP-HFH 3/8-16 X 1.00 G5
  • 20
    8041-246 NUT, LOCK
    NUT, LOCK
  • 21
    1604-607 PAD, SHOCK
    PAD, SHOCK
  • 22
    8017-405 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0704-352 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 24
    8002-042 SCREW, CAP-HH 1/4-20 X1.00 G5 Z
    SCREW, CAP-HH 1/4-20 X1.00 G5 Z
  • 25
    1602-478 TRACK ASSY. (INC. 26)
    TRACK ASSY. (INC. 26)
  • 26
    1602-907 CLIP, GUIDE
    CLIP, GUIDE
