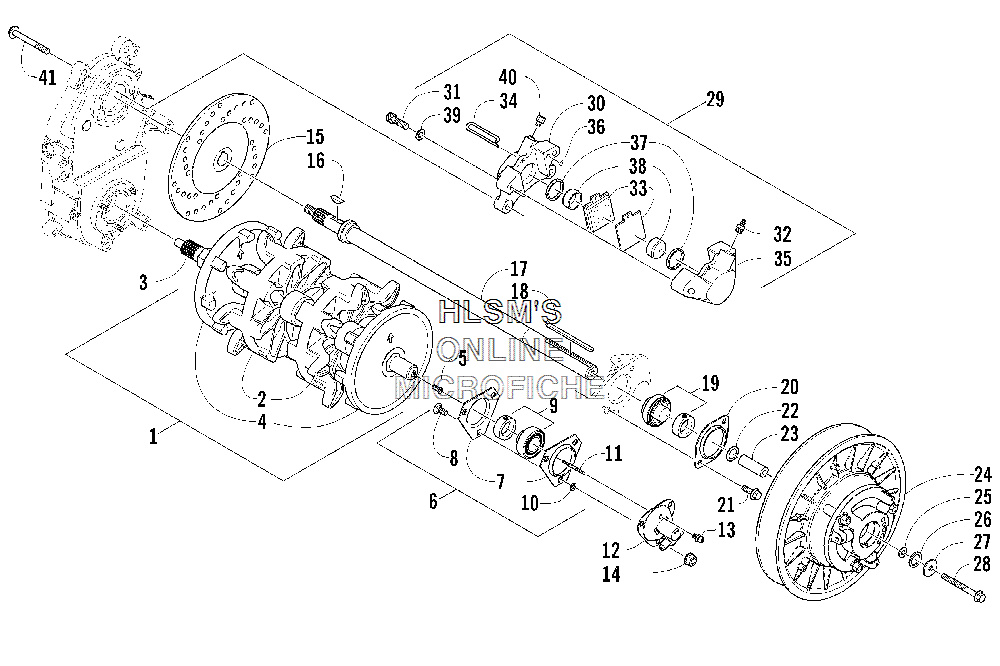

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
10728-126 TRACK DRIVE ASSY. (INC. 2, 5)TRACK DRIVE ASSY. (INC. 2, 5)
-
21602-727 SPROCKET, DRIVE, INNERSPROCKET, DRIVE, INNER
-
31602-376 DRIVESHAFTDRIVESHAFT
-
41602-527 SPROCKET, DRIVE, OUTERSPROCKET, DRIVE, OUTER
-
50120-247 BUSHING, DRIVEBUSHING, DRIVE
-
60702-476 PLATE, FLANGE, BEARING ASSY. (INC. 7, 10)PLATE, FLANGE, BEARING ASSY. (INC. 7, 10)
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGE (5/16-18X.75 GR1 Z & Y)BOLT, CARRIAGE (5/16-18X.75 GR1 Z & Y)
-
91602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
100623-810 RING, SOLDERRING, SOLDER
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120720-013 ADAPTER, DRIVE (INC. 13)ADAPTER, DRIVE (INC. 13)
-
130104-062 FITTING, GREASEFITTING, GREASE
-
148048-426 NUT, LOCKNUT, LOCK
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
191602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
200602-892 PLATE, FLANGE, BEARINGPLATE, FLANGE, BEARING
-
218020-130 SCREW, CAP-HFH 5/16-18 X0.75 G5SCREW, CAP-HFH 5/16-18 X0.75 G5
-
220623-118 WASHER, FLAT-1.00 X1.43 X.030WASHER, FLAT-1.00 X1.43 X.030
-
220623-119 WASHER, FLAT-1.00 X1.43 X.075WASHER, FLAT-1.00 X1.43 X.075
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-168 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHER, FLAT 5/16 X 3/4WASHER, FLAT 5/16 X 3/4
-
260123-694 WASHER, FLAT-.890 X 1.19 X .060WASHER, FLAT-.890 X 1.19 X .060
-
270123-019 WSHR, FLAT 21/64X1-1/2XWSHR, FLAT 21/64X1-1/2X
-
288020-142 SCREW, CAP-HFH 5/16-18 X 3.25 GSCREW, CAP-HFH 5/16-18 X 3.25 G
-
290602-829 CALIPER, BRAKE ASSY. (INC. 30, 40)CALIPER, BRAKE ASSY. (INC. 30, 40)
-
318005-677 SCREW, CAP-TXSH 3/8-16 X 2.00 ZSCREW, CAP-TXSH 3/8-16 X 2.00 Z
-
320602-707 SCREW, BLEED, ASSY.SCREW, BLEED, ASSY.
-
330702-229 PAD, BRAKE, SET (INC. 34)PAD, BRAKE, SET (INC. 34)
-
340602-706 PIN, RETAININGPIN, RETAINING
-
360602-729 O-RING, HOUSINGO-RING, HOUSING
-
370602-583 O-RINGO-RING
-
380602-708 PISTONPISTON
-
398050-272 WASHERWASHER
-
400602-590 FITTING, ADAPTERFITTING, ADAPTER
-
418020-315 SCREW, CAPSCREW, CAP
