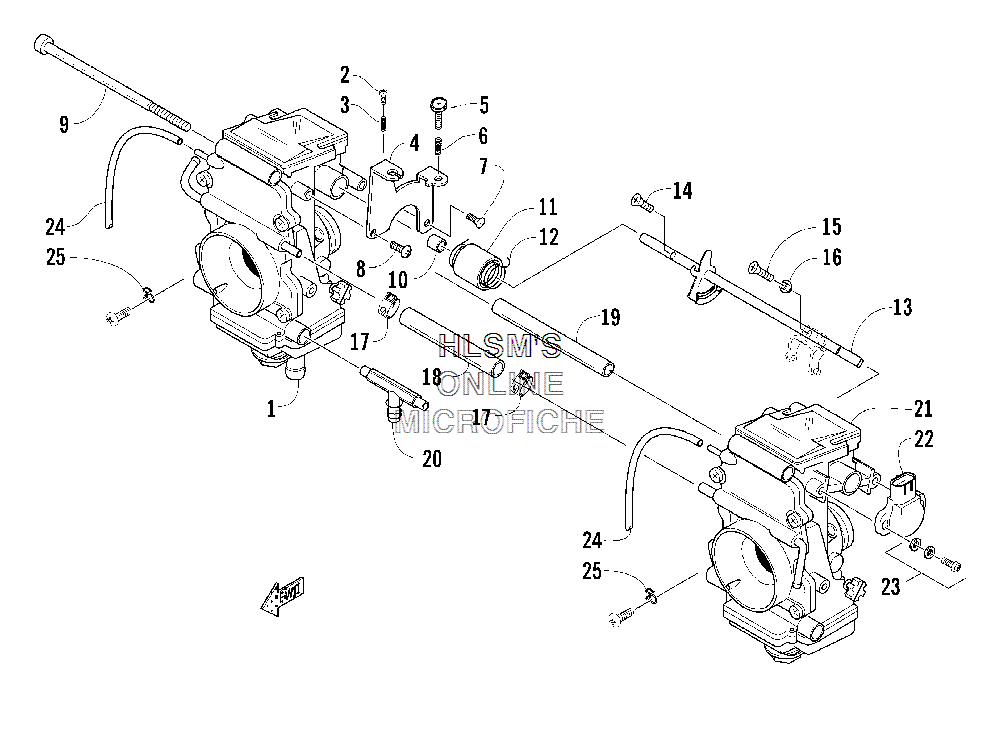

CARBURETOR - EXTERNAL PARTS для Arctic Cat King Cat 900 (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
16506-341 CARBURETOR ASSY. (LEFT) (INC. 2, 8)CARBURETOR ASSY. (LEFT) (INC. 2, 8)
-
26506-134 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
36506-056 SPRINGSPRING
-
46506-130 BRACKETBRACKET
-
56506-061 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
66506-062 SPRINGSPRING
-
76506-063 SCREWSCREW
-
86506-064 SCREWSCREW
-
96506-128 BOLTBOLT
-
106506-048 SPACERSPACER
-
116506-049 SLEEVE, SPRINGSLEEVE, SPRING
-
126506-135 SPRING, THROTTLESPRING, THROTTLE
-
136506-060 SHAFT, THROTTLE LEVER, ASSY.SHAFT, THROTTLE LEVER, ASSY.
-
146506-046 SCREWSCREW
-
156506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
166506-041 RING, LEVERRING, LEVER
-
176506-338 CLAMP, HOSECLAMP, HOSE
-
186506-339 HOSEHOSE
-
196506-143 SPACERSPACER
-
206506-127 T, FITTINGT, FITTING
-
216506-342 CARBURETOR ASSY. (RIGHT) (INC. 22, 23)CARBURETOR ASSY. (RIGHT) (INC. 22, 23)
-
226506-074 THROTTLE POSITION SENSOR ASSY.THROTTLE POSITION SENSOR ASSY.
-
236506-075 SCREW W/WASHERSSCREW W/WASHERS
-
246506-133 HOSEHOSE
-
256506-340 CLIP, HOSECLIP, HOSE
