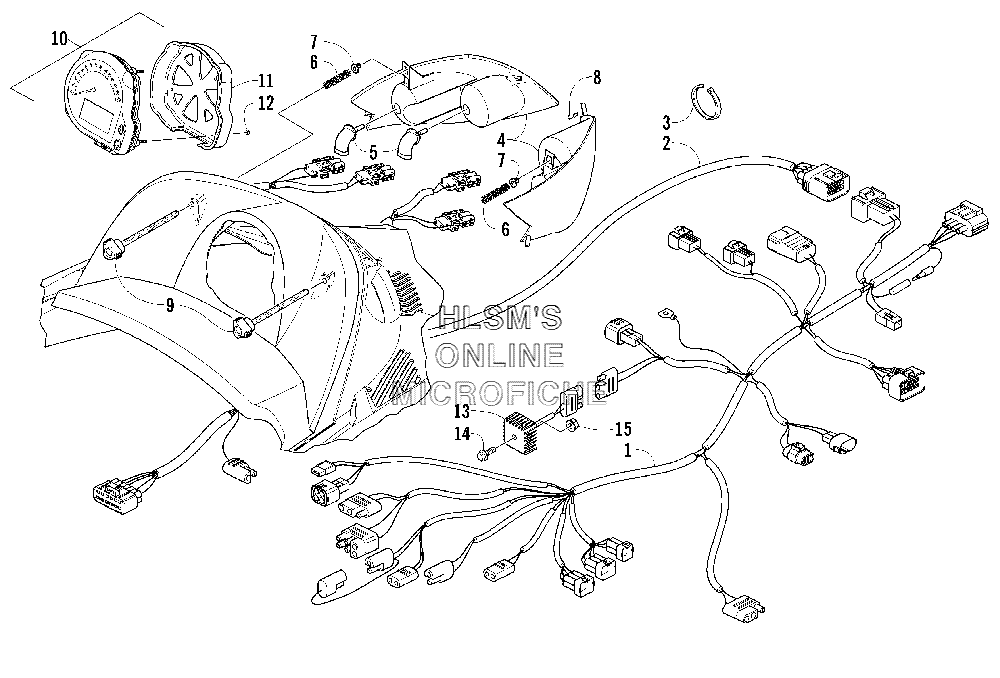

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat F7 Firecat EFI (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
11686-008 HARNESS, MAINHARNESS, MAIN
-
21686-115 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-292 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
130630-182 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
148020-045 SCREW, CAPSCREW, CAP
-
158048-366 NUT, LOCKNUT, LOCK
Все узлы модели:
- AIR SILENCER ASSEMBLY
- BELLY PAN ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- CONTROL ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- GEARCASE ASSEMBLY
- HANDLEBAR ASSEMBLY
- • HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY
- WATER PUMP AND THERMOSTAT
