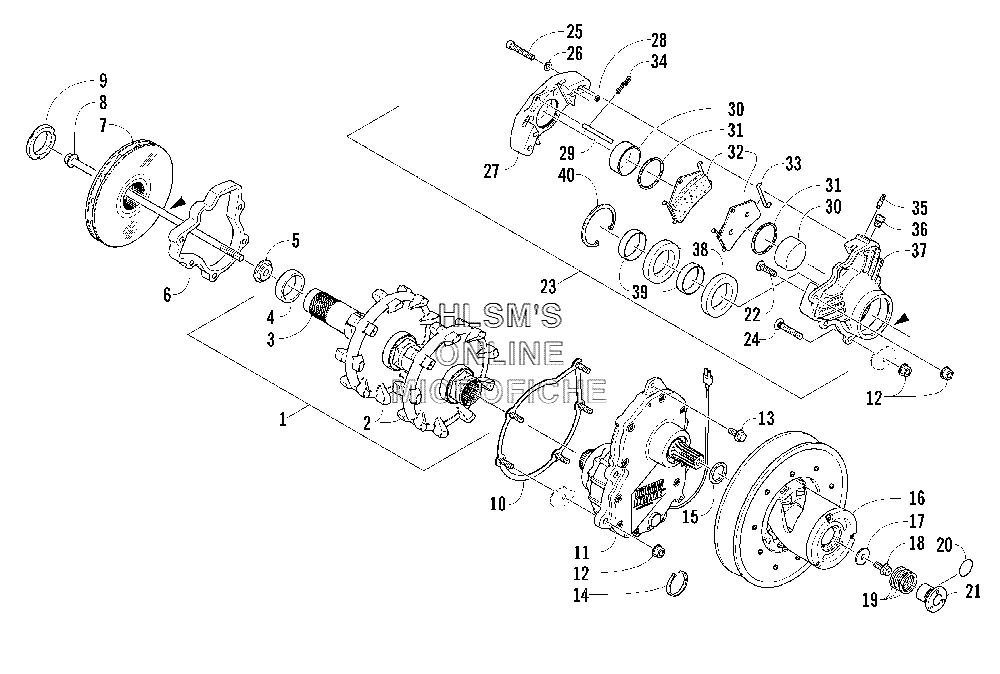

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat F7 Firecat EFI (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
10728-131 TRACK DRIVE ASSEMBLY (INC. 2, 4)TRACK DRIVE ASSEMBLY (INC. 2, 4)
-
21602-783 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-759 DRIVESHAFTDRIVESHAFT
-
41602-315 COLLARCOLLAR
-
51602-791 INSERT, DRIVESHAFTINSERT, DRIVESHAFT
-
61602-480 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
71602-656 DISC, BRAKEDISC, BRAKE
-
81623-378 SCREW, CAPSCREW, CAP
-
91602-355 NUT, RETAININGNUT, RETAINING
-
100702-529 PLATE, MOUNTING, GEARCASEPLATE, MOUNTING, GEARCASE
-
110702-668 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
128047-426 NUT, LOCKNUT, LOCK
-
138020-131 SCREW, CAPSCREW, CAP
-
140123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
150648-442 WASHERWASHER
-
150648-443 WASHERWASHER
-
160726-195 CLUTCH, DRIVENCLUTCH, DRIVEN
-
171623-072 WASHERWASHER
-
181623-275 SCREW, CAPSCREW, CAP
-
190648-714 WASHERWASHER
-
190648-715 WASHERWASHER
-
190648-716 WASHERWASHER
-
200648-441 O-RINGO-RING
-
210648-440 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
228017-676 SCREW, MACHINESCREW, MACHINE
-
230702-655 CALIPER, BRAKE, ASSEMBLY (INC. 24, 40)CALIPER, BRAKE, ASSEMBLY (INC. 24, 40)
-
241623-359 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
251602-671 SCREW, CAPSCREW, CAP
-
260402-165 WASHERWASHER
-
280602-729 O-RING, HOUSINGO-RING, HOUSING
-
291602-464 PIN, RETAINING, BRAKE PADPIN, RETAINING, BRAKE PAD
-
301602-461 PISTONPISTON
-
311602-669 O-RINGO-RING
-
320702-563 PAD, BRAKE, SET (INC. 33, 34)PAD, BRAKE, SET (INC. 33, 34)
-
331602-466 CLIP, ANTI, RATTLECLIP, ANTI, RATTLE
-
341602-467 CLIP, HAIRPINCLIP, HAIRPIN
-
351602-458 FITTING, BLEEDFITTING, BLEED
-
360602-590 FITTING, ADAPTERFITTING, ADAPTER
-
381602-462 BEARINGBEARING
-
391602-463 SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
401602-456 RING, RETAININGRING, RETAINING
