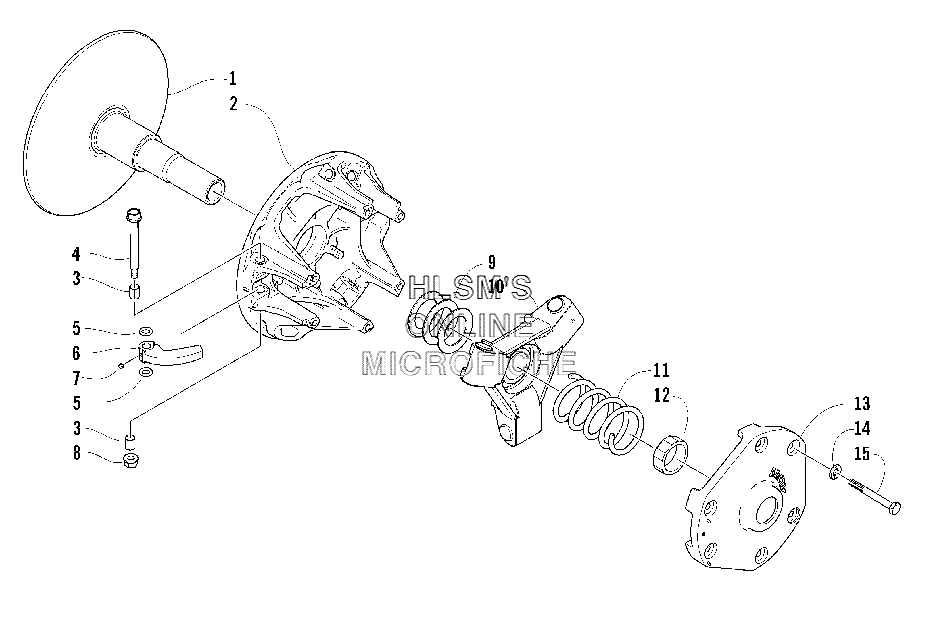

DRIVE CLUTCH для Arctic Cat F7 Firecat EFI (RED) - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    0725-441 DRIVE CLUTCH
    DRIVE CLUTCH
  • -
    0746-140 UNCALIBRATED DRIVE CLUTCH
    UNCALIBRATED DRIVE CLUTCH
  • 1
    0646-683 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0746-142 SHEAVE, MOVABLE (INC. 3)
    SHEAVE, MOVABLE (INC. 3)
  • 3
    0646-372 BEARING
    BEARING
  • 4
    0646-747 PIN, CAM ARM
    PIN, CAM ARM
  • 5
    1602-692 O-RING
    O-RING
  • 6
    0746-672 ARM, CAM (INC. 7)
    ARM, CAM (INC. 7)
  • 6
    0746-670 ARM, CAM (5, 9, 000 FT ALT) (INC. 7)
    ARM, CAM (5, 9, 000 FT ALT) (INC. 7)
  • 6
    0746-694 ARM, CAM (OVER 9, 000 FT ALT) (INC. 7)
    ARM, CAM (OVER 9, 000 FT ALT) (INC. 7)
  • 7
    1623-183 SCREW, SET
    SCREW, SET
  • 8
    8048-366 NUT, LOCK
    NUT, LOCK
  • 9
    0646-377 SPACER
    SPACER
  • 10
    0746-115 SPIDER ASSEMBLY
    SPIDER ASSEMBLY
  • 12
    0646-140 NUT
    NUT
  • 13
    0746-113 COVER
    COVER
  • 14
    8051-212 WASHER, LOCK, SPRING
    WASHER, LOCK, SPRING
  • 15
    1623-085 SCREW, MACHINE
    SCREW, MACHINE
  • -
    4639-217 CAM ARM KIT (INC. 3, 5 AND 7, 8)
    CAM ARM KIT (INC. 3, 5 AND 7, 8)
