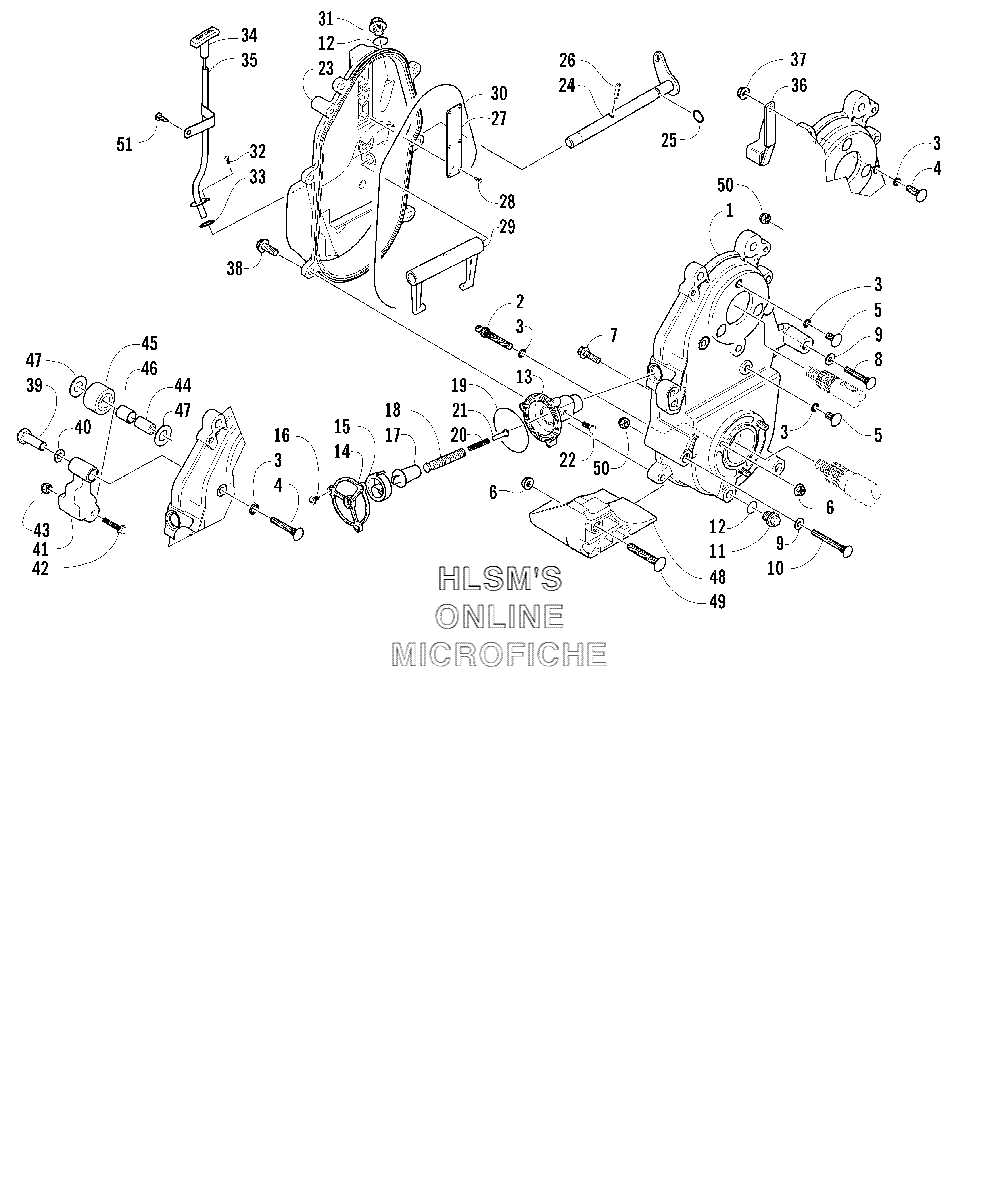

DROPCASE AND CHAIN TENSION ASSEMBLY для Arctic Cat T660 Touring Taupe - 2004 года выпуска`
-
№АртикулНазвание
-
10702-417 DROPCASE W/STUDS (INC. 2, 5)DROPCASE W/STUDS (INC. 2, 5)
-
20623-317 STUD, RIBBEDSTUD, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
68048-426 NUT, LOCKNUT, LOCK
-
78020-135 SCREW, CAPSCREW, CAP
-
88011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
98050-252 WASHERWASHER
-
101623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
110602-479 PLUG, DRAIN, MAGNETICPLUG, DRAIN, MAGNETIC
-
121602-213 O-RINGO-RING
-
130602-746 HOUSING, SCREW, CHAIN ADJUSTERHOUSING, SCREW, CHAIN ADJUSTER
-
140602-645 COVER, ADJUSTER HOUSINGCOVER, ADJUSTER HOUSING
-
150602-803 SPRING, POWER, ADJUSTER SHAFTSPRING, POWER, ADJUSTER SHAFT
-
160623-526 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
171602-536 SHAFT, CHAIN ADJUSTERSHAFT, CHAIN ADJUSTER
-
180602-748 SCREW, CHAIN ADJUSTERSCREW, CHAIN ADJUSTER
-
190602-801 O-RING, COVER, CHAIN ADJUSTERO-RING, COVER, CHAIN ADJUSTER
-
200602-901 SPRING, COMPRESSIONSPRING, COMPRESSION
-
210602-804 RIVET, BUTTON HEADRIVET, BUTTON HEAD
-
220623-541 SCREW, MACHINESCREW, MACHINE
-
231602-222 COVER, DROPCASECOVER, DROPCASE
-
240702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
250602-021 SEAL, O-RINGSEAL, O-RING
-
260623-542 PIN, SPRINGPIN, SPRING
-
271602-151 COVER, OIL VENTCOVER, OIL VENT
-
280623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290602-085 FORK, SHIFTFORK, SHIFT
-
300602-437 SEAL, DROPCASESEAL, DROPCASE
-
310623-293 PLUG, DRAINPLUG, DRAIN
-
320623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
330605-014 O, O-RINGIL LEVEL STICK TUBEO, O-RINGIL LEVEL STICK TUBE
-
341602-107 STICK, OIL LEVELSTICK, OIL LEVEL
-
351602-106 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
360702-554 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
378048-366 NUT, LOCKNUT, LOCK
-
388020-134 SCREW, CAPSCREW, CAP
-
390602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
408050-222 WASHERWASHER
-
410602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
428002-045 SCREW, CAPSCREW, CAP
-
430623-122 NUT, LOCKNUT, LOCK
-
440602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
450702-129 ROLLER, CHAIN TIGHTENER (INC. 46)ROLLER, CHAIN TIGHTENER (INC. 46)
-
460602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
470623-525 WASHERWASHER
-
480616-964 GUARD, DROPCASEGUARD, DROPCASE
-
498011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
508040-426 NUT, LOCKNUT, LOCK
-
510623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
