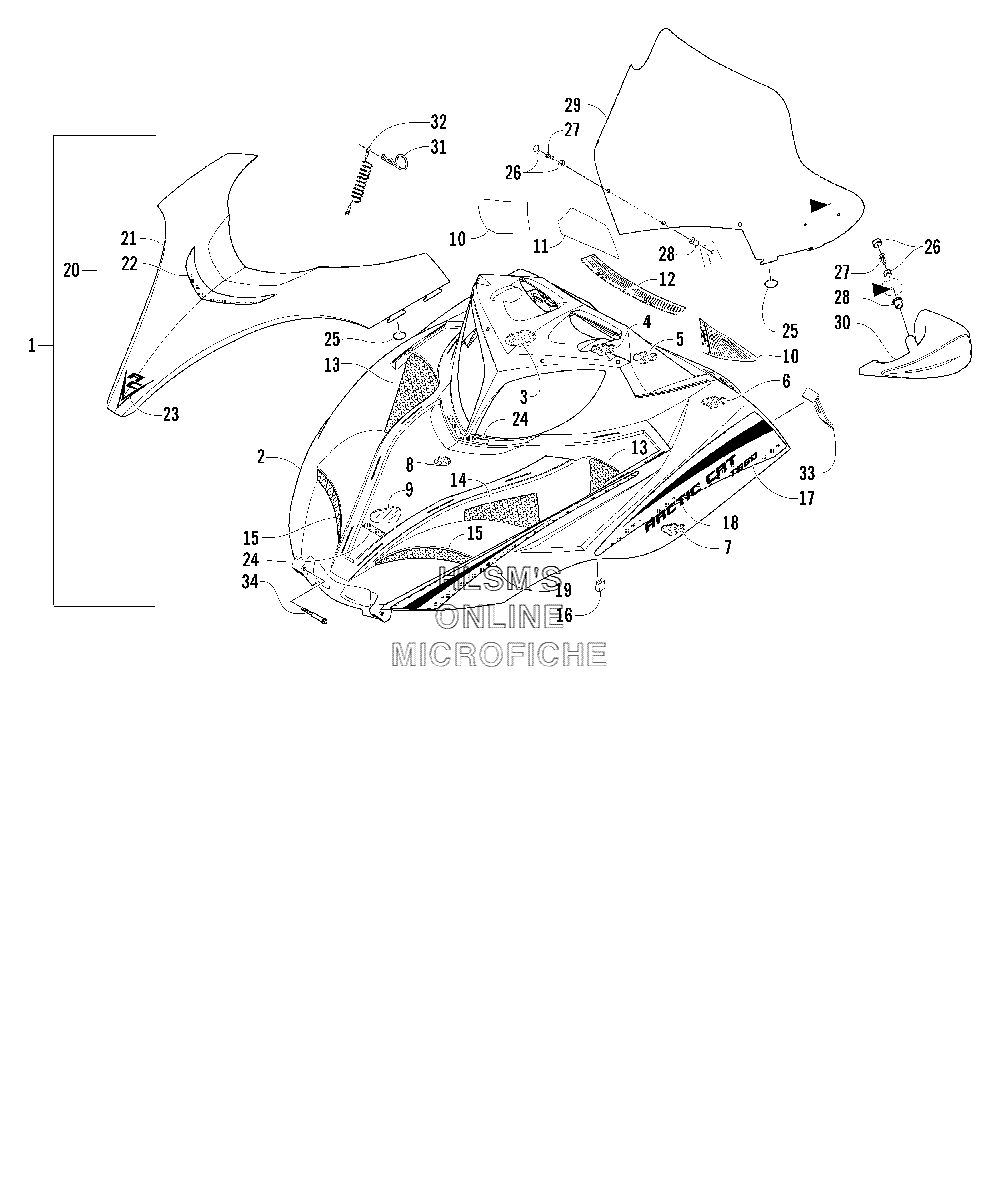

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat T660 Touring Taupe - 2004 года выпуска

  • Артикул
    Название
  • 1
    1718-523 HOOD W/DECALS (INC. 2, 24 AND TWELVE NO. 25)
    HOOD W/DECALS (INC. 2, 24 AND TWELVE NO. 25)
  • 2
    1718-566 HOOD W/O DECALS (INC. 3, 16)
    HOOD W/O DECALS (INC. 3, 16)
  • 3
    0717-192 FOAM, HOOD (UPPER/MIDDLE)
    FOAM, HOOD (UPPER/MIDDLE)
  • 4
    0717-186 FOAM, HOOD, GAUGE (RIGHT)
    FOAM, HOOD, GAUGE (RIGHT)
  • 4
    0717-187 FOAM, HOOD, GAUGE (LEFT)
    FOAM, HOOD, GAUGE (LEFT)
  • 5
    0717-190 FOAM, HOOD (UPPER/RIGHT)
    FOAM, HOOD (UPPER/RIGHT)
  • 5
    0717-191 FOAM, HOOD (UPPER/LEFT)
    FOAM, HOOD (UPPER/LEFT)
  • 6
    0717-188 FOAM, HOOD (REAR/RIGHT)
    FOAM, HOOD (REAR/RIGHT)
  • 6
    0717-189 FOAM, HOOD (REAR/LEFT)
    FOAM, HOOD (REAR/LEFT)
  • 7
    0717-184 FOAM, HOOD (FRONT/RIGHT)
    FOAM, HOOD (FRONT/RIGHT)
  • 7
    0717-185 FOAM, HOOD (FRONT/LEFT)
    FOAM, HOOD (FRONT/LEFT)
  • 8
    0717-193 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 9
    3606-359 FOIL, HOOD (CENTER)
    FOIL, HOOD (CENTER)
  • 10
    5611-840 DECAL, WARNING (ENGLISH)
    DECAL, WARNING (ENGLISH)
  • 10
    5611-841 DECAL, WARNING (FRENCH)
    DECAL, WARNING (FRENCH)
  • 11
    5611-836 DECAL REVERSE
    DECAL REVERSE
  • 12
    5611-837 DECAL, WARNING, BREAK, INNER
    DECAL, WARNING, BREAK, INNER
  • 13
    3606-236 SCREEN, HOOD (REAR/RIGHT)
    SCREEN, HOOD (REAR/RIGHT)
  • 13
    3606-237 SCREEN, HOOD (REAR/LEFT)
    SCREEN, HOOD (REAR/LEFT)
  • 14
    3606-360 SCREEN, HOOD (MIDDLE)
    SCREEN, HOOD (MIDDLE)
  • 15
    3606-234 SCREEN, HOOD (FRONT/RIGHT)
    SCREEN, HOOD (FRONT/RIGHT)
  • 15
    3606-235 SCREEN, HOOD (FRONT/LEFT)
    SCREEN, HOOD (FRONT/LEFT)
  • 16
    0123-987 CLIP, RETAINING
    CLIP, RETAINING
  • 17
    5611-610 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 17
    5611-611 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 18
    5611-603 EMBLEM, HOOD
    EMBLEM, HOOD
  • 19
    5611-608 DECAL, HOOD (FRONT/LEFT)
    DECAL, HOOD (FRONT/LEFT)
  • 19
    5611-609 DECAL, HOOD (FRONT/RIGHT)
    DECAL, HOOD (FRONT/RIGHT)
  • 20
    1718-467 COVER, HOOD W/DECALS (INC. 21, 23)
    COVER, HOOD W/DECALS (INC. 21, 23)
  • 21
    3606-220 COVER, HOOD W/O DECALS
    COVER, HOOD W/O DECALS
  • 22
    5611-607 DECAL, COVER (CENTER)
    DECAL, COVER (CENTER)
  • 23
    5611-605 EMBLEM, COVER
    EMBLEM, COVER
  • 24
    0619-946 TAPE, FOAM, 1 FT
    TAPE, FOAM, 1 FT
  • 25
    0616-032 O-RING
    O-RING
  • 26
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 27
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 29
    3606-174 WINDSHIELD
    WINDSHIELD
  • 30
    3606-247 MIRROR
    MIRROR
  • 31
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 32
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 33
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 34
    1623-164 SCREW, SHOULDER
    SCREW, SHOULDER
