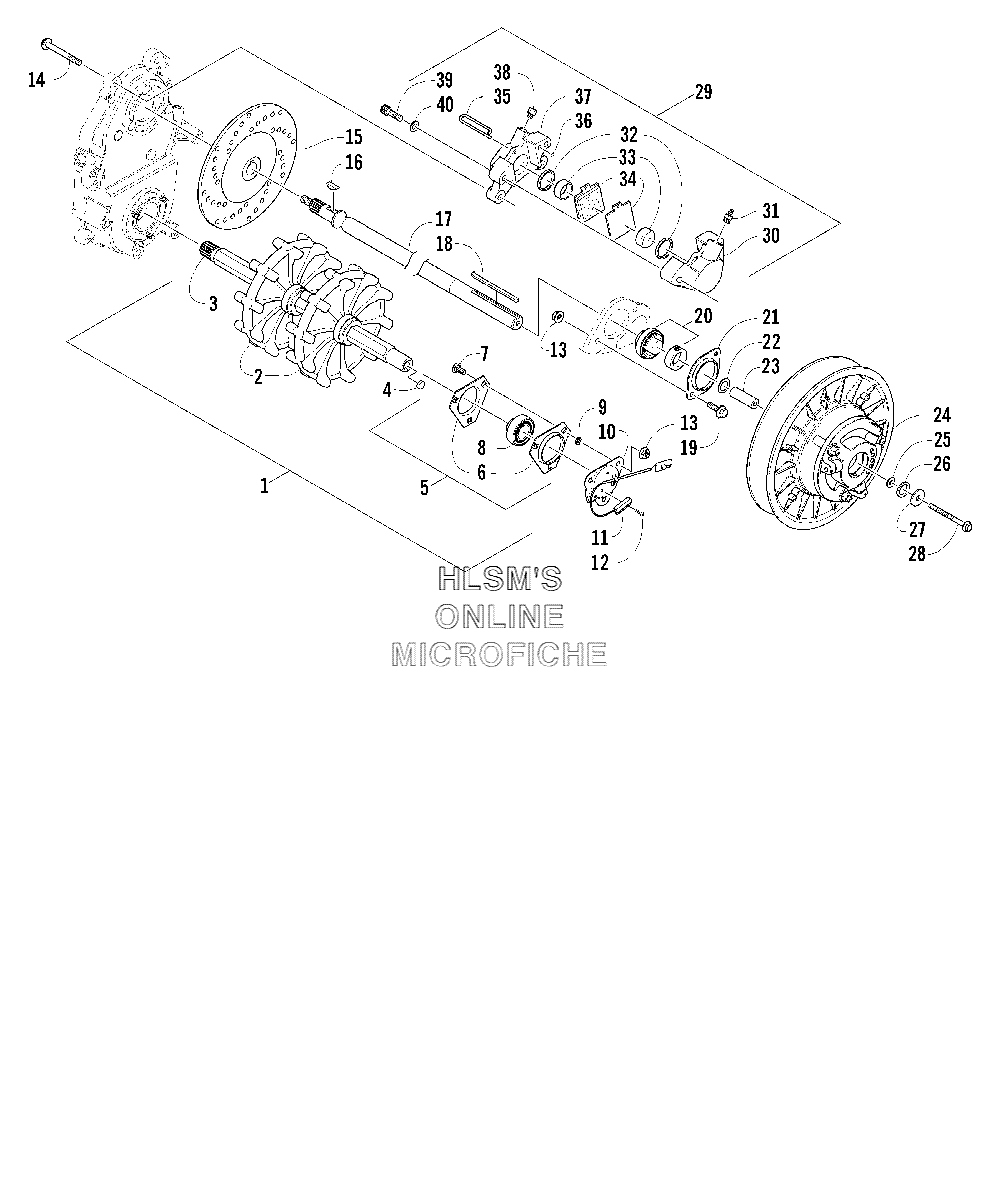

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat T660 Touring Taupe - 2004 года выпуска`
-
№АртикулНазвание
-
10728-116 TRACK DRIVE ASSEMBLY (INC. 2, 9)TRACK DRIVE ASSEMBLY (INC. 2, 9)
-
21602-507 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-585 DRIVESHAFTDRIVESHAFT
-
40630-167 MAGNET, DISCMAGNET, DISC
-
50702-567 PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 9)PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 9)
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
81602-374 BEARING, 1 IN.BEARING, 1 IN.
-
90623-810 RING, SOLDERRING, SOLDER
-
103606-244 BRACKET, SENSORBRACKET, SENSOR
-
110630-178 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
120623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138048-426 NUT, LOCKNUT, LOCK
-
148020-315 SCREW, CAPSCREW, CAP
-
151602-205 DISC, BRAKEDISC, BRAKE
-
160602-598 KEYKEY
-
170702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
180101-076 KEYKEY
-
198020-132 SCREW, CAPSCREW, CAP
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHERWASHER
-
220623-119 WASHERWASHER
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-145 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
288020-142 SCREW, CAPSCREW, CAP
-
290602-829 CALIPER, BRAKE ASSEMBLY (INC. 30, 40)CALIPER, BRAKE ASSEMBLY (INC. 30, 40)
-
310602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
320602-583 O-RINGO-RING
-
330602-708 PISTONPISTON
-
340702-229 PAD, BRAKE, SET (INC. 35)PAD, BRAKE, SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
360602-729 O-RING, HOUSINGO-RING, HOUSING
-
380602-590 FITTING, ADAPTERFITTING, ADAPTER
-
398005-679 SCREW, CAPSCREW, CAP
-
408050-272 WASHERWASHER
