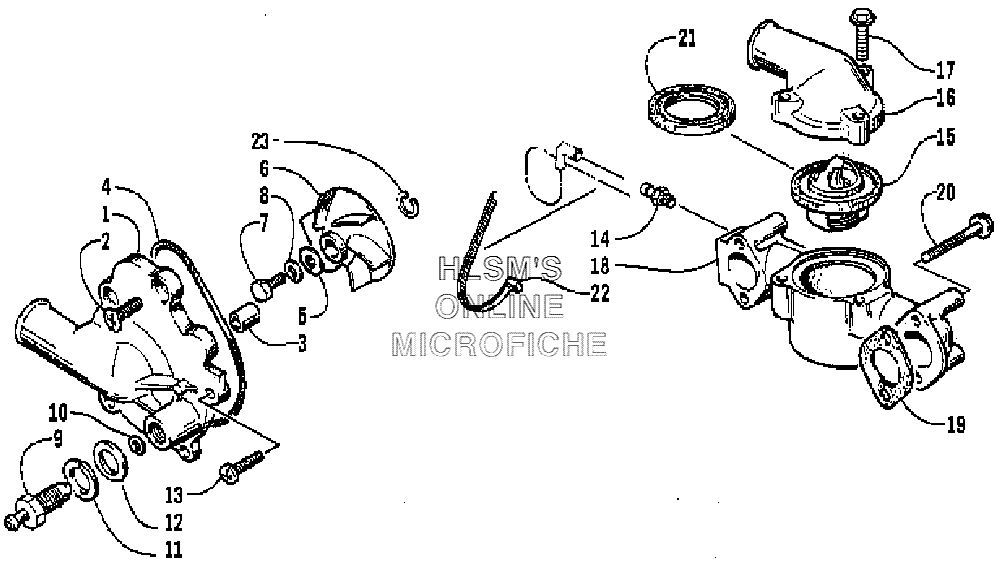

WATER PUMP/WATER MANIFOLD для Arctic Cat Pantera 550 International - 2004 года выпуска`
-
№АртикулНазвание
-
13005-519 CASE, WATER PUMPCASE, WATER PUMP
-
23003-702 SCREW, CASESCREW, CASE
-
33002-012 PIN, CASEPIN, CASE
-
43003-372 O-RING, CASEO-RING, CASE
-
53003-432 WASHERWASHER
-
63005-697 IMPELLERIMPELLER
-
73003-426 BOLTBOLT
-
83003-431 WASHERWASHER
-
93003-618 DRAINDRAIN
-
103005-226 O-RING, DRAINO-RING, DRAIN
-
113004-472 WASHER, LOCKWASHER, LOCK
-
123004-417 WASHERWASHER
-
133004-402 SCREWSCREW
-
140630-140 SENSOR, HEATSENSOR, HEAT
-
153004-509 THERMOSTATTHERMOSTAT
-
163003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
173004-376 BOLTBOLT
-
183004-777 MANIFOLD, THERMOSTATMANIFOLD, THERMOSTAT
-
193004-260 GASKET, THERMOSTAT MANIFOLDGASKET, THERMOSTAT MANIFOLD
-
203004-369 BOLTBOLT
-
213003-495 GASKET, THERMOSTATGASKET, THERMOSTAT
-
220623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
233004-009 CIRCLIPCIRCLIP
