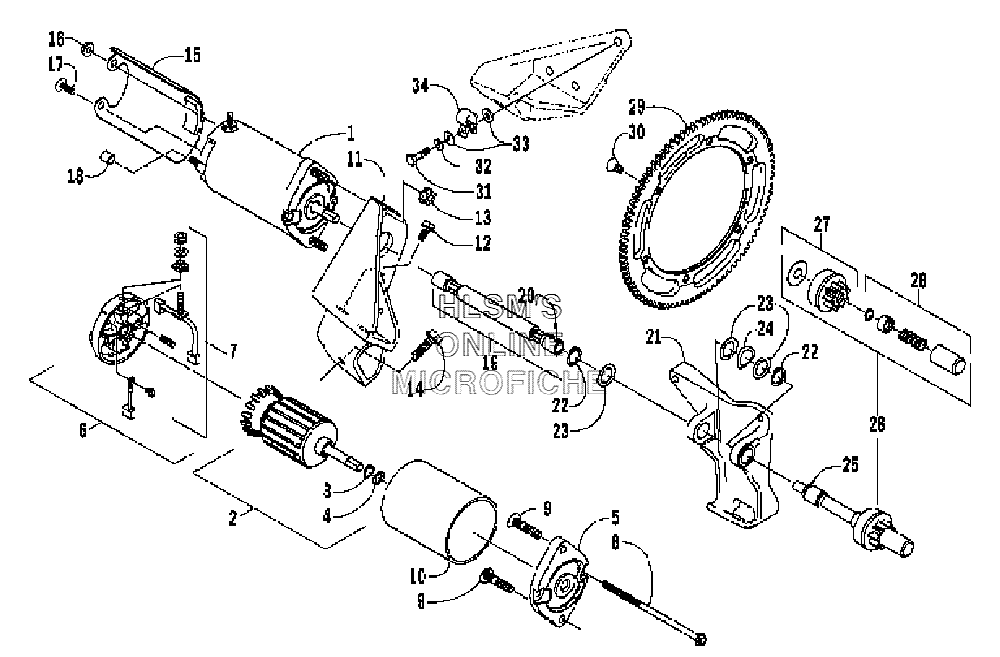

FLEX-DRIVE STARTER MOTOR ASSY. для Arctic Cat Pantera 550 International - 2004 года выпуска`
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSY. (INC. 3, 4)ARMATURE ASSY. (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
80645-128 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110708-135 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
120623-890 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138048-426 NUT, LOCKNUT, LOCK
-
148020-224 SCREW, CAPSCREW, CAP
-
150745-153 SHIELD, HEATSHIELD, HEAT
-
168048-366 NUT, LOCKNUT, LOCK
-
170623-892 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180623-404 CAP, PROTECTORCAP, PROTECTOR
-
190745-156 SHAFT, FLEX, DRIVE (INC. 20)SHAFT, FLEX, DRIVE (INC. 20)
-
200623-891 SCREW, SETSCREW, SET
-
210745-135 BRACKET, ENGINE MOUNTING (LEFT) FRONTBRACKET, ENGINE MOUNTING (LEFT) FRONT
-
220645-256 RING, SNAPRING, SNAP
-
230645-254 WASHER, THRUSTWASHER, THRUST
-
240645-255 WASHER, WAVEWASHER, WAVE
-
250745-150 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)
-
260745-145 KIT, PINION DRIVE ASSY. (INC. 27, 28)KIT, PINION DRIVE ASSY. (INC. 27, 28)
-
270745-146 PINION DRIVE ASSY.PINION DRIVE ASSY.
-
280645-186 PINION STOPPER ASSY.PINION STOPPER ASSY.
-
290645-329 RING GEARRING GEAR
-
301623-128 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
318005-584 SCREW, CAPSCREW, CAP
-
328051-242 WASHER, LOCKWASHER, LOCK
-
330623-140 WASHERWASHER
-
341623-080 CLAMP, FLEX, DRIVE SHAFTCLAMP, FLEX, DRIVE SHAFT
