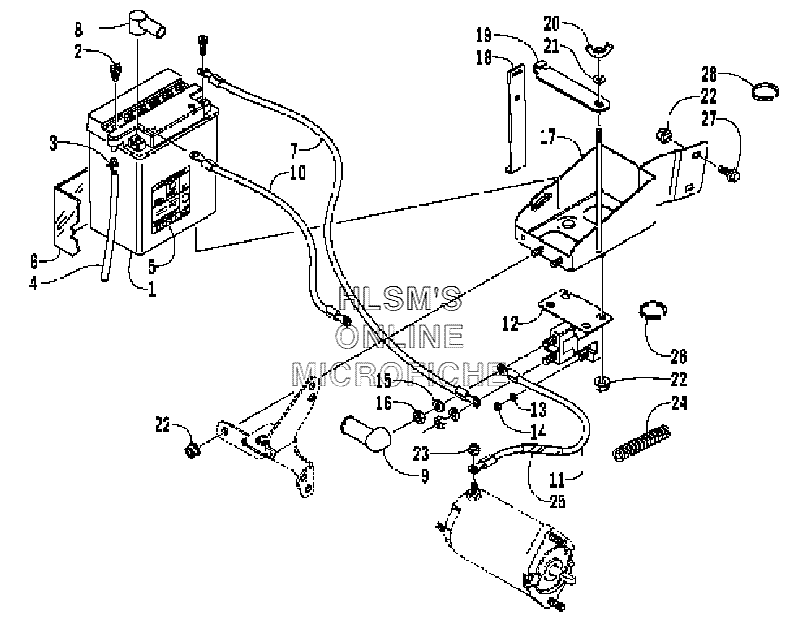

BATTERY- SOLENOID- AND CABLES для Arctic Cat Pantera 550 International - 2004 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-152 CLAMP, HOSECLAMP, HOSE
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-390 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-318 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110645-115 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
120645-196 SOLENOID (INC. 13, 16)SOLENOID (INC. 13, 16)
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148043-452 NUTNUT
-
158051-152 WASHER, LOCKWASHER, LOCK
-
168042-272 NUTNUT
-
170745-144 TRAY, BATTERYTRAY, BATTERY
-
180645-243 STRAP, BATTERY, TOPSTRAP, BATTERY, TOP
-
190645-245 STRAP, BATTERY, SIDESTRAP, BATTERY, SIDE
-
200623-325 NUT, WINGNUT, WING
-
218050-217 WASHERWASHER
-
228048-366 NUT, LOCKNUT, LOCK
-
230623-122 NUT, LOCKNUT, LOCK
-
240716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
250645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
260623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
278020-040 SCREW, CAPSCREW, CAP
-
278020-045 SCREW, CAPSCREW, CAP
-
280123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
