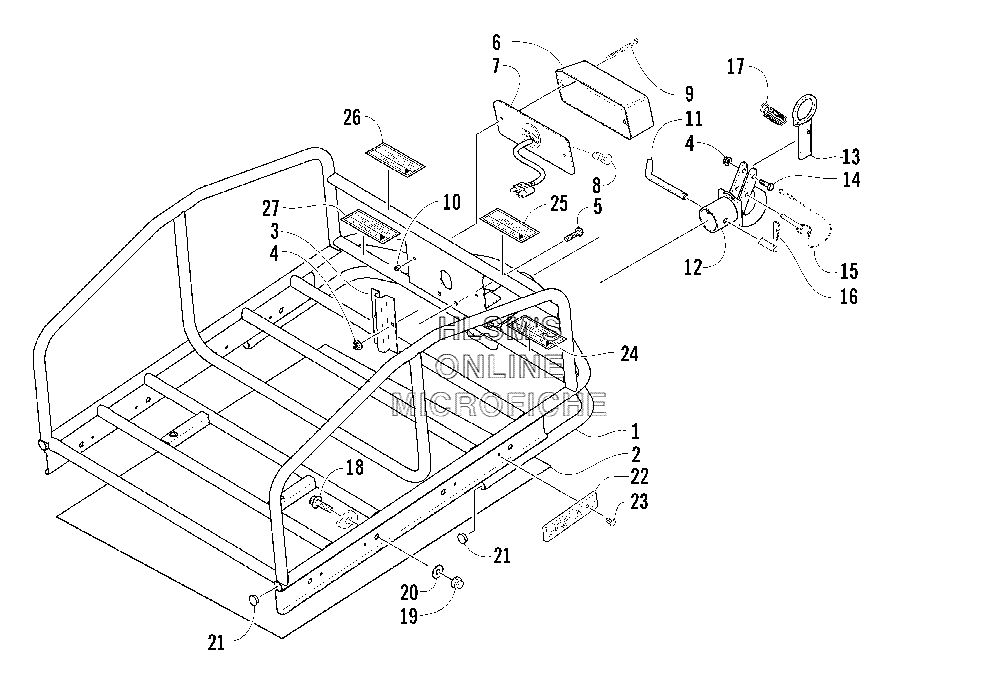

RACK- HITCH- AND TAILLIGHT ASSEMBLIES для Arctic Cat Bearcat Wide Track (International) - 2004 года выпуска`
-
№АртикулНазвание
-
12706-076 RACKRACK
-
22606-749 MAT, RACKMAT, RACK
-
32706-172 GUARD, TAILLIGHTGUARD, TAILLIGHT
-
48048-366 NUT, LOCKNUT, LOCK
-
58017-577 SCREW, MACHINESCREW, MACHINE
-
60609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
70609-230 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
80109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
91623-148 SCREW, MACHINESCREW, MACHINE
-
100123-709 NUT, LOCKNUT, LOCK
-
112606-933 PIN, RECEIVERPIN, RECEIVER
-
122706-594 HITCH, PINTLEHITCH, PINTLE
-
132706-503 LATCH, HITCHLATCH, HITCH
-
148020-045 SCREW, CAPSCREW, CAP
-
152606-913 PIN, LOCKPIN, LOCK
-
160605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
170602-651 SPRING, RETURNSPRING, RETURN
-
188020-220 SCREW, CAPSCREW, CAP
-
190623-426 NUT, CAPNUT, CAP
-
208050-277 WASHERWASHER
-
210606-654 PLUG, HOLEPLUG, HOLE
-
220606-029 REFLECTOR (RED)REFLECTOR (RED)
-
230623-269 CLIP, RETAININGCLIP, RETAINING
-
245611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
251611-568 DECAL, WARNING, MAX PAYLOAD (ENGLISH)DECAL, WARNING, MAX PAYLOAD (ENGLISH)
-
261611-569 DECAL, WARNING, MAX PAYLOAD (FRENCH)DECAL, WARNING, MAX PAYLOAD (FRENCH)
-
275611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
