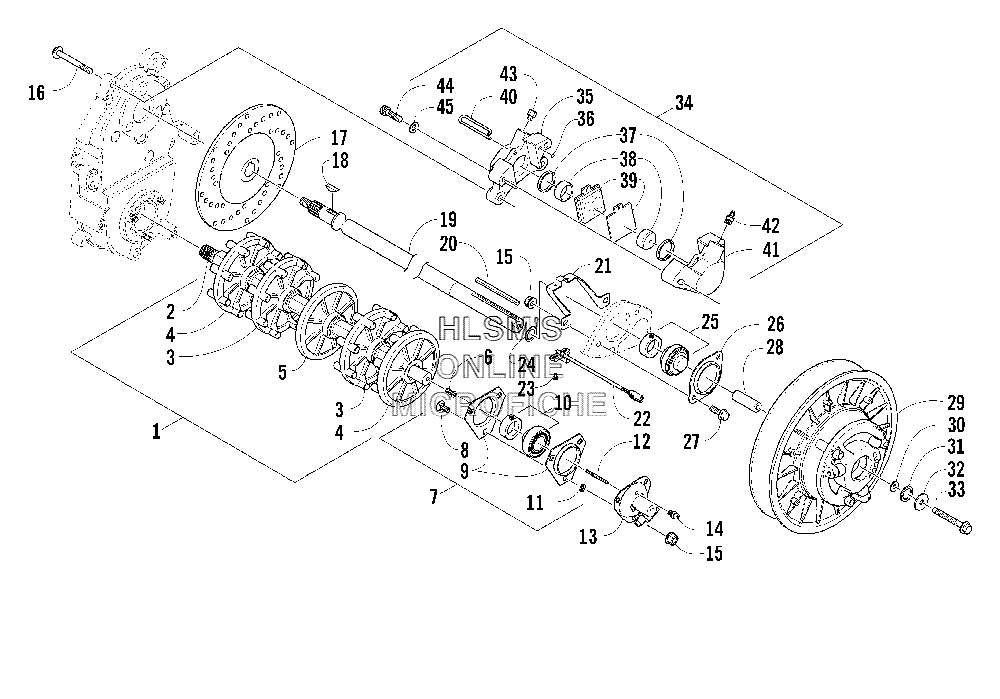

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Bearcat Wide Track (International) - 2004 года выпуска
-
№АртикулНазвание
-
10728-100 TRACK DRIVE ASSY (INC. 2, 6)TRACK DRIVE ASSY (INC. 2, 6)
-
21602-477 DRIVESHAFTDRIVESHAFT
-
30602-864 SPROCKET, DRIVE (INNER)SPROCKET, DRIVE (INNER)
-
40602-865 SPROCKET, DRIVE (OUTER)SPROCKET, DRIVE (OUTER)
-
50602-884 IDLER (CENTER)IDLER (CENTER)
-
60120-247 BUSHING, DRIVEBUSHING, DRIVE
-
70702-476 PLATE, FLANGE, BEARING ASSY (INC. 8, 11)PLATE, FLANGE, BEARING ASSY (INC. 8, 11)
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
90602-198 PLATE, FLANGEPLATE, FLANGE
-
101602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
110623-810 RING, SOLDERRING, SOLDER
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
130620-031 ADAPTER, DRIVE (INC. 14)ADAPTER, DRIVE (INC. 14)
-
140104-062 FITTING, GREASEFITTING, GREASE
-
158048-426 NUT, LOCKNUT, LOCK
-
168020-315 SCREW, CAPSCREW, CAP
-
171602-205 DISC, BRAKEDISC, BRAKE
-
180602-598 KEYKEY
-
190702-362 SHAFT, DRIVENSHAFT, DRIVEN
-
200101-076 KEYKEY
-
212706-209 BRACKET, MOUNTING, MAGNETIC SWITCHBRACKET, MOUNTING, MAGNETIC SWITCH
-
220630-008 SWITCH, MAGNETICSWITCH, MAGNETIC
-
230623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
241602-396 MAGNETMAGNET
-
251602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
260602-892 PLATE, FLANGEPLATE, FLANGE
-
278020-132 SCREW, CAPSCREW, CAP
-
280648-066 SHAFT, STUBSHAFT, STUB
-
290726-173 CLUTCH, DRIVENCLUTCH, DRIVEN
-
300123-053 WASHERWASHER
-
310123-694 WASHERWASHER
-
320123-019 WASHERWASHER
-
338020-142 SCREW, CAPSCREW, CAP
-
340602-829 CALIPER, BRAKE, ASSY (INC. 35, 45)CALIPER, BRAKE, ASSY (INC. 35, 45)
-
360602-729 O-RING, HOUSINGO-RING, HOUSING
-
370602-583 O-RINGO-RING
-
380602-708 PISTONPISTON
-
390702-229 PAD, BRAKE, SET (INC. 40)PAD, BRAKE, SET (INC. 40)
-
400602-706 PIN, RETAININGPIN, RETAINING
-
420602-707 SCREW, BLEED, ASSYSCREW, BLEED, ASSY
-
430602-590 FITTING, ADAPTERFITTING, ADAPTER
-
448005-679 SCREW, CAPSCREW, CAP
-
458050-272 WASHERWASHER
