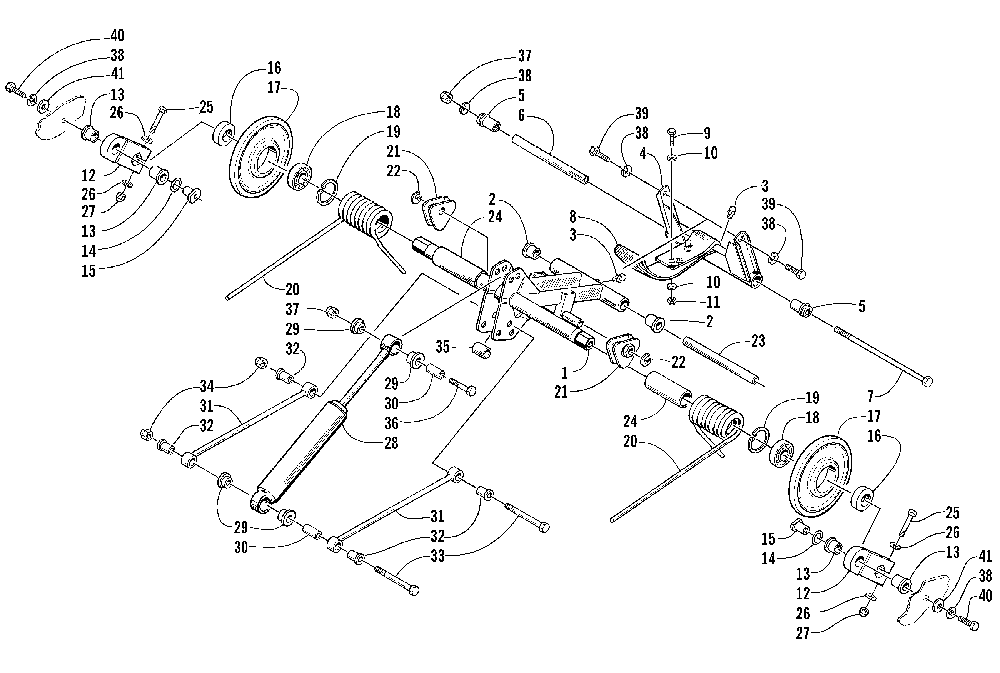

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10704-631 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
30623-922 FITTING, GREASEFITTING, GREASE
-
40704-593 ARM (REAR) (INC. ONE NO. 3)ARM (REAR) (INC. ONE NO. 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
60604-194 TUBE, AXLETUBE, AXLE
-
70623-907 SCREW, CAPSCREW, CAP
-
81604-863 STRAP, LIMITERSTRAP, LIMITER
-
98002-042 SCREW, CAPSCREW, CAP
-
100623-184 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
120704-014 ARM, PIVOT IDLER (INC. 13)ARM, PIVOT IDLER (INC. 13)
-
131604-202 BUSHING, FLAREDBUSHING, FLARED
-
141604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
151604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
161604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
171604-690 WHEEL, IDLER (INC. 18, 19)WHEEL, IDLER (INC. 18, 19)
-
180107-598 BEARINGBEARING
-
190123-798 RING, RETAININGRING, RETAINING
-
200704-886 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
200704-887 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
211604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
211604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
220623-138 RING, RETAINERRING, RETAINER
-
231604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
240114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
258002-138 SCREW, CAPSCREW, CAP
-
268050-242 WASHERWASHER
-
278040-426 NUT, LOCKNUT, LOCK
-
282604-200 SHOCK ABSORBER ARM (REAR) (INC. 29, 30) (INTERNATIONAL)SHOCK ABSORBER ARM (REAR) (INC. 29, 30) (INTERNATIONAL)
-
290604-310 BUSHING, SHOCKBUSHING, SHOCK
-
301604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
310704-928 LINK REAR SHOCK (INTERNATIONAL)LINK REAR SHOCK (INTERNATIONAL)
-
321604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
338002-233 SCREW, CAPSCREW, CAP
-
348041-486 NUT, LOCKNUT, LOCK
-
350704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
368002-227 SCREW, CAPSCREW, CAP
-
378040-486 NUT, LOCKNUT, LOCK
-
388051-277 WASHER, LOCKWASHER, LOCK
-
398002-223 SCREW, CAPSCREW, CAP
-
408002-224 SCREW, CAPSCREW, CAP
-
410623-044 WASHERWASHER
