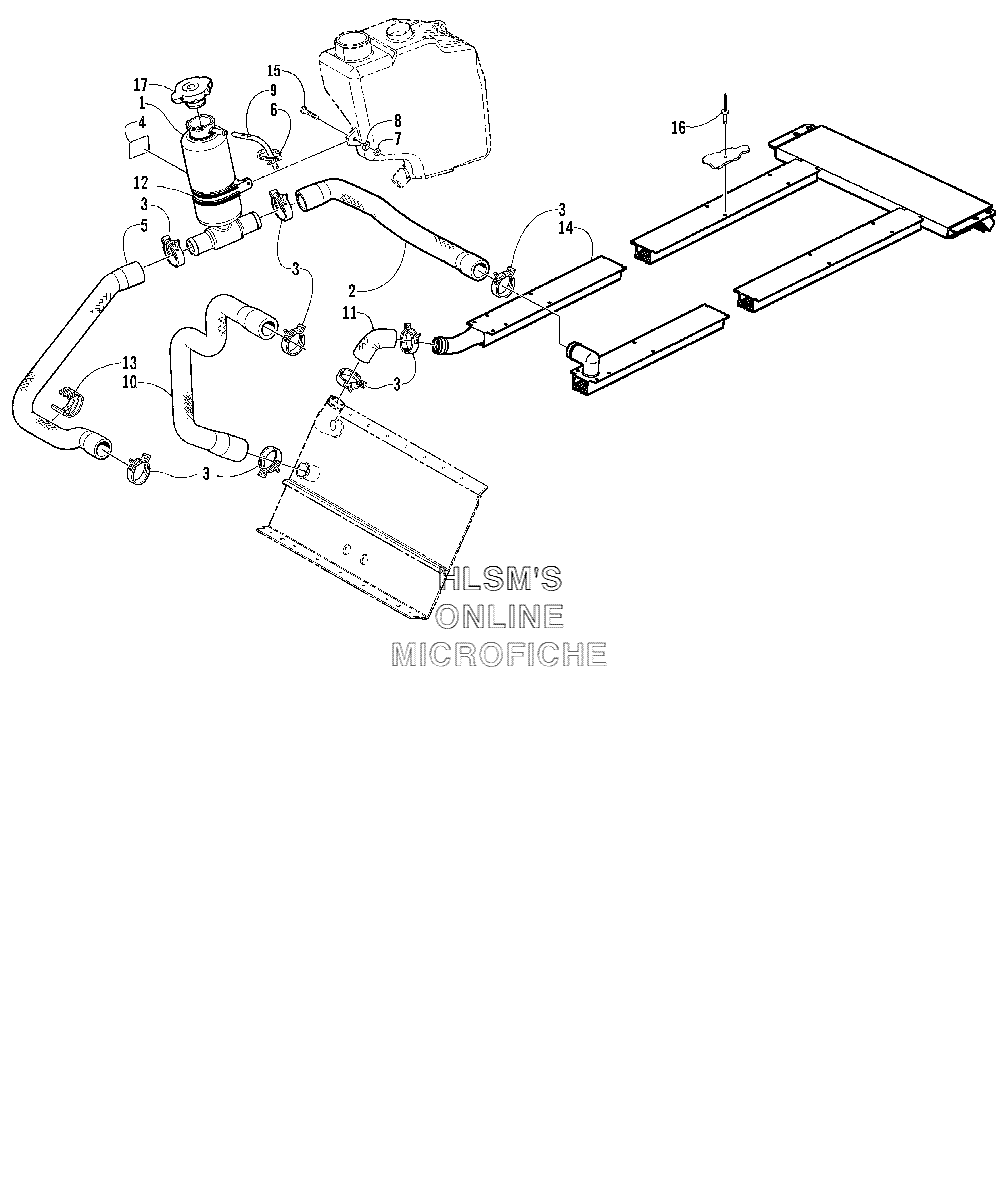

COOLING ASSEMBLY для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-396 TANK, COOLANT
    TANK, COOLANT
  • 2
    0610-379 HOSE, COOLANT TANK/REAR HEAT EXCHANGER
    HOSE, COOLANT TANK/REAR HEAT EXCHANGER
  • 3
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 5
    0610-378 HOSE, COOLANT, ENGINE/COOLANT TANK
    HOSE, COOLANT, ENGINE/COOLANT TANK
  • 6
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 7
    8040-366 NUT, LOCK
    NUT, LOCK
  • 8
    8050-217 WASHER
    WASHER
  • 9
    6101-001 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 9
    6101-009 HOSE, VENT (50 FT)
    HOSE, VENT (50 FT)
  • 10
    0610-336 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
  • 11
    0610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
    HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
  • 12
    0623-761 CLAMP, COOLANT TANK
    CLAMP, COOLANT TANK
  • 13
    0623-540 CABLE TIE, TRIPLE
    CABLE TIE, TRIPLE
  • 14
    1706-919 HEAT EXCHANGER (REAR)
    HEAT EXCHANGER (REAR)
  • 15
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8060-706 RIVET
    RIVET
  • 17
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
