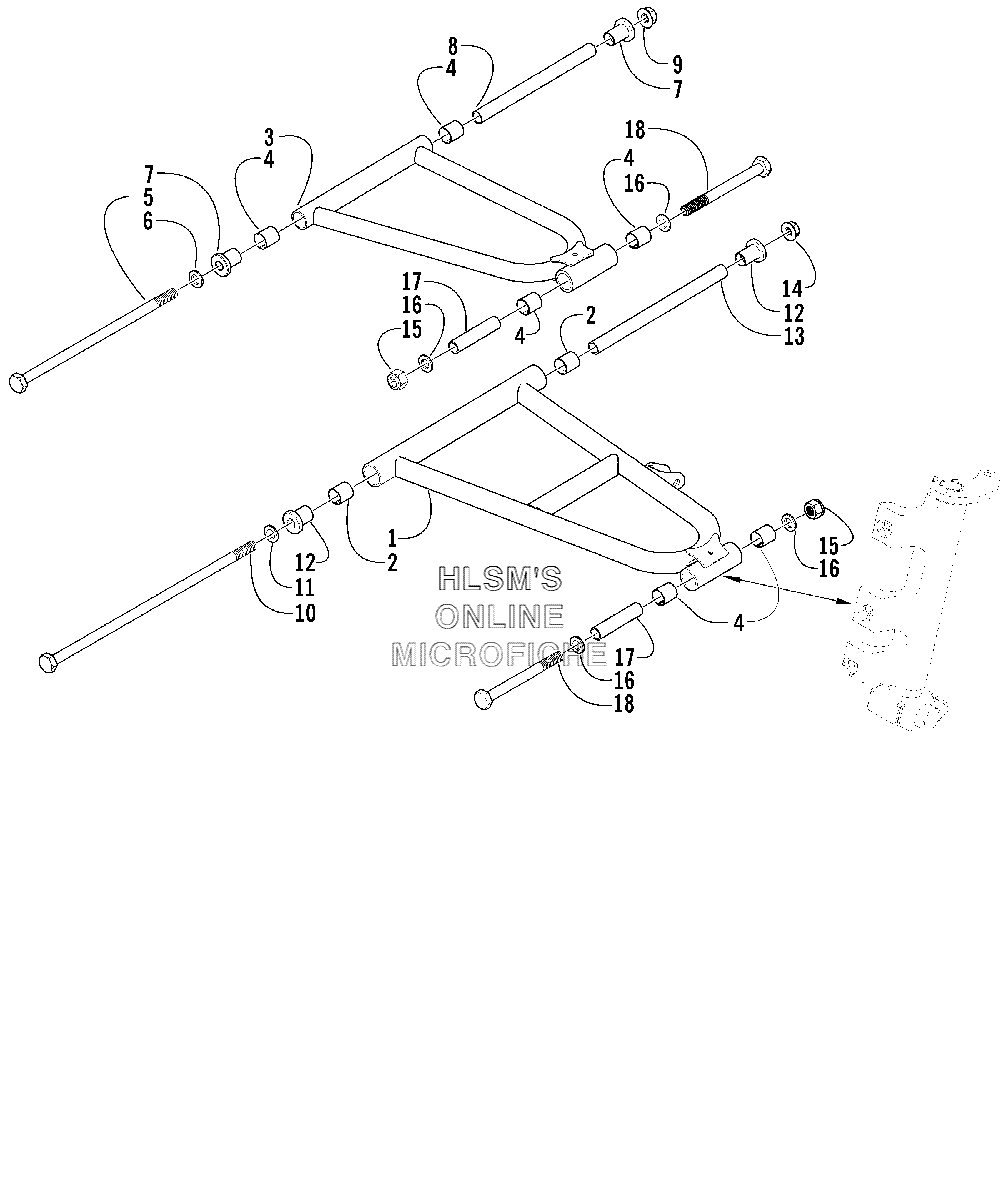

A-ARM ASSEMBLY для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0703-930 ARM (LOWER) (RIGHT) (PLATINUM) (INC. 2 AND 4)
    ARM (LOWER) (RIGHT) (PLATINUM) (INC. 2 AND 4)
  • 1
    0703-931 ARM (LOWER) (LEFT) (PLATINUM) (INC. 2 AND 4)
    ARM (LOWER) (LEFT) (PLATINUM) (INC. 2 AND 4)
  • 2
    0603-158 BEARING
    BEARING
  • 3
    0703-932 ARM (UPPER) (PLATINUM) (INC. 4)
    ARM (UPPER) (PLATINUM) (INC. 4)
  • 4
    0603-083 BEARING
    BEARING
  • 5
    0623-509 SCREW, CAP
    SCREW, CAP
  • 6
    0623-664 WASHER
    WASHER
  • 7
    1603-244 AXLE (POWDER METAL)
    AXLE (POWDER METAL)
  • 8
    0603-692 TUBE, AXLE
    TUBE, AXLE
  • 9
    0623-661 NUT, LOCK
    NUT, LOCK
  • 10
    0623-508 SCREW, CAP
    SCREW, CAP
  • 11
    0623-663 WASHER
    WASHER
  • 12
    1603-397 AXLE, NON, SERRATED
    AXLE, NON, SERRATED
  • 13
    0603-693 TUBE, AXLE
    TUBE, AXLE
  • 14
    0623-660 NUT, LOCK
    NUT, LOCK
  • 15
    8040-486 NUT, LOCK
    NUT, LOCK
  • 16
    8050-277 WASHER
    WASHER
  • 17
    0603-830 AXLE, SPINDLE MOUNT
    AXLE, SPINDLE MOUNT
  • 18
    0623-657 SCREW, CAP
    SCREW, CAP
