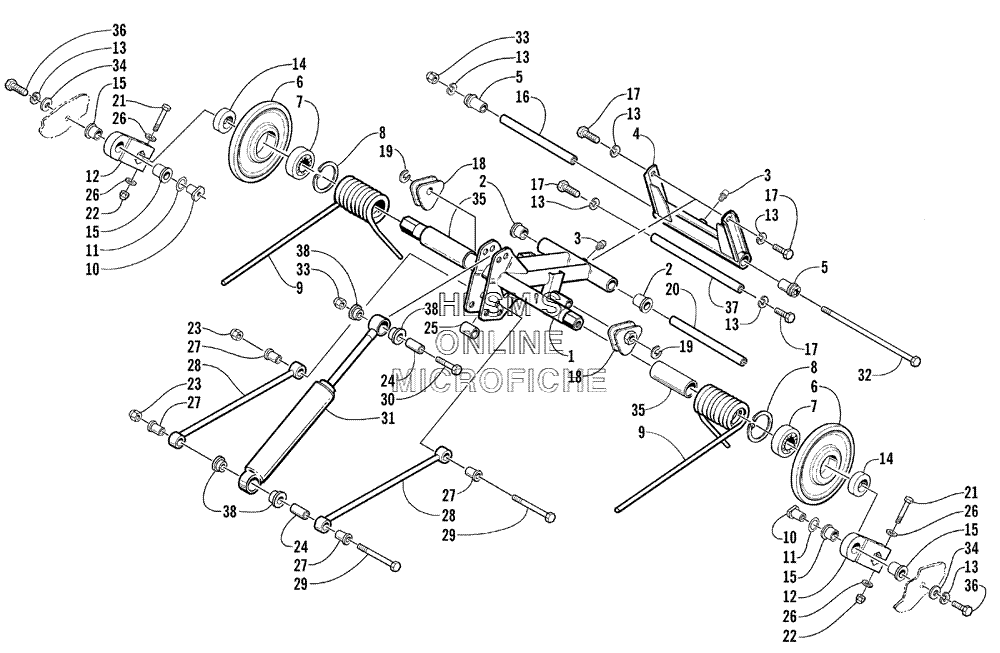

REAR SUSPENSION REAR ARM ASSY. для Arctic Cat ZL 500 - 2002 года выпуска`
-
№АртикулНазвание
-
10704-631 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHINGBUSHING
-
30623-922 FITTING, GREASEFITTING, GREASE
-
40704-632 ARM (REAR) (INC. ONE NO. 3)ARM (REAR) (INC. ONE NO. 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
61604-690 WHEEL, IDLER (INC. 7, 8)WHEEL, IDLER (INC. 7, 8)
-
70107-598 BEARINGBEARING
-
80123-798 RING, RETAININGRING, RETAINING
-
91604-062 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
91604-063 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
101604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
111604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
120704-014 ARM, PIVOT IDLER (INC. 15)ARM, PIVOT IDLER (INC. 15)
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-507 SPACER, OFFSET ARMSPACER, OFFSET ARM
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178002-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
181604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
190623-138 RING, RETAINERRING, RETAINER
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUT, LOCKNUT, LOCK
-
238041-486 NUT, LOCKNUT, LOCK
-
241604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-242 WASHERWASHER
-
271604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
280704-350 LINK, INNER CARRIAGELINK, INNER CARRIAGE
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
311604-372 SHOCK ABSORBER ARM (REAR) (INC. 24 AND 38)SHOCK ABSORBER ARM (REAR) (INC. 24 AND 38)
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
370604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
380604-321 BUSHING, SHOCKBUSHING, SHOCK
