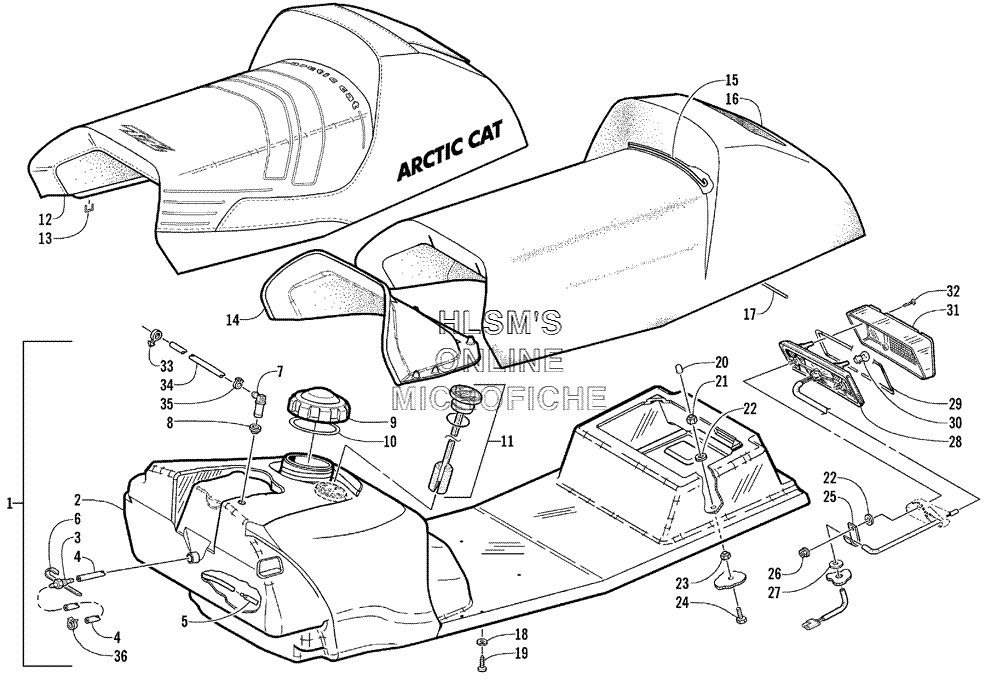

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat ZL 500 - 2002 года выпуска`
-
№АртикулНазвание
-
11718-226 COMPLETE SEAT ASSY. (INC. 2, 19)COMPLETE SEAT ASSY. (INC. 2, 19)
-
20770-565 TANK, GAS/SEAT, BASE (INC. 3, 11)TANK, GAS/SEAT, BASE (INC. 3, 11)
-
31670-173 OUTLET, TANKOUTLET, TANK
-
40610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
40610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60670-289 TAPE, TEFLONTAPE, TEFLON
-
71670-324 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMETGROMMET
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
111670-241 GAUGE, FUEL W/GASKET (PRESS, FIT)GAUGE, FUEL W/GASKET (PRESS, FIT)
-
121706-863 COVER, SEATCOVER, SEAT
-
130624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
141606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
151606-150 WIRE, SEATWIRE, SEAT
-
161706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
170606-057 WIRE, SEATWIRE, SEAT
-
188050-217 WASHERWASHER
-
190623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-404 CAP, PROTECTORCAP, PROTECTOR
-
218040-366 NUT, LOCKNUT, LOCK
-
220623-184 WASHERWASHER
-
238041-366 NUT, LOCKNUT, LOCK
-
248002-042 SCREW, CAPSCREW, CAP
-
253002-964 CLAMP, WIRECLAMP, WIRE
-
260623-038 NUT W/WASHERNUT W/WASHER
-
270617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
280609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
-
290609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
300109-460 BULBBULB
-
310609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
320609-093 SCREW, RETAININGSCREW, RETAINING
-
330623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
340610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
340610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
350623-063 CLAMP, HOSECLAMP, HOSE
-
360124-045 CLAMP, HOSECLAMP, HOSE
