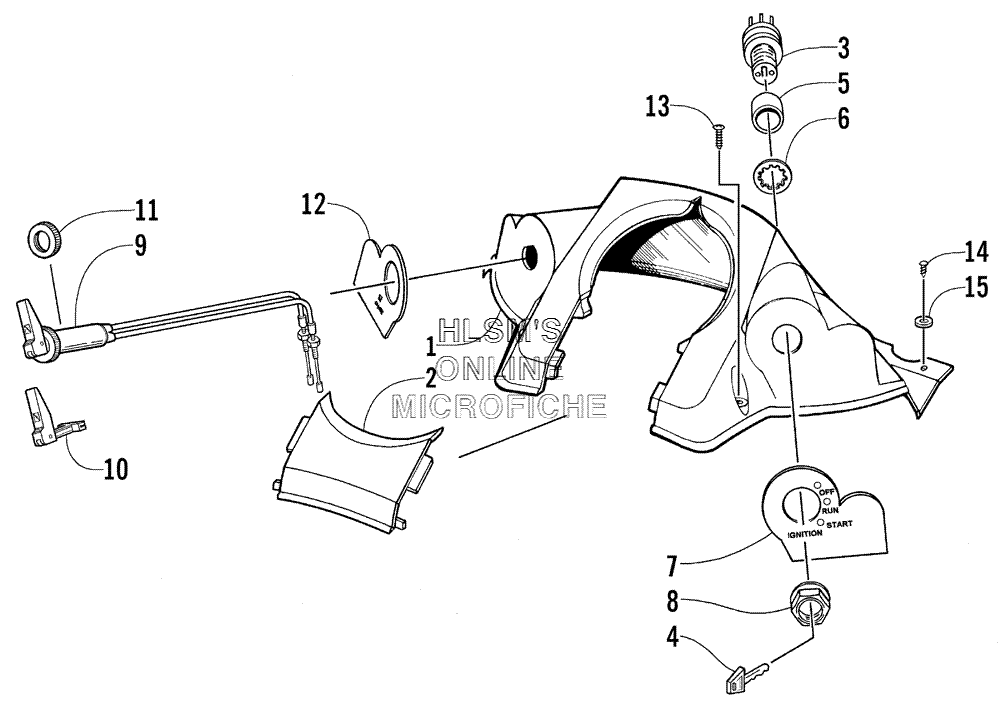

CONSOLE AND SWITCH ASSY. для Arctic Cat ZL 500 - 2002 года выпуска`
-
№АртикулНазвание
-
11606-735 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-286 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
80609-113 NUT, RETAININGNUT, RETAINING
-
90687-056 CABLE, CHOKE (INC. 10)CABLE, CHOKE (INC. 10)
-
100636-062 LEVER, CHOKE, KITLEVER, CHOKE, KIT
-
110623-054 NUT, CHOKENUT, CHOKE
-
122611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
130623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
140623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-157 WASHERWASHER
