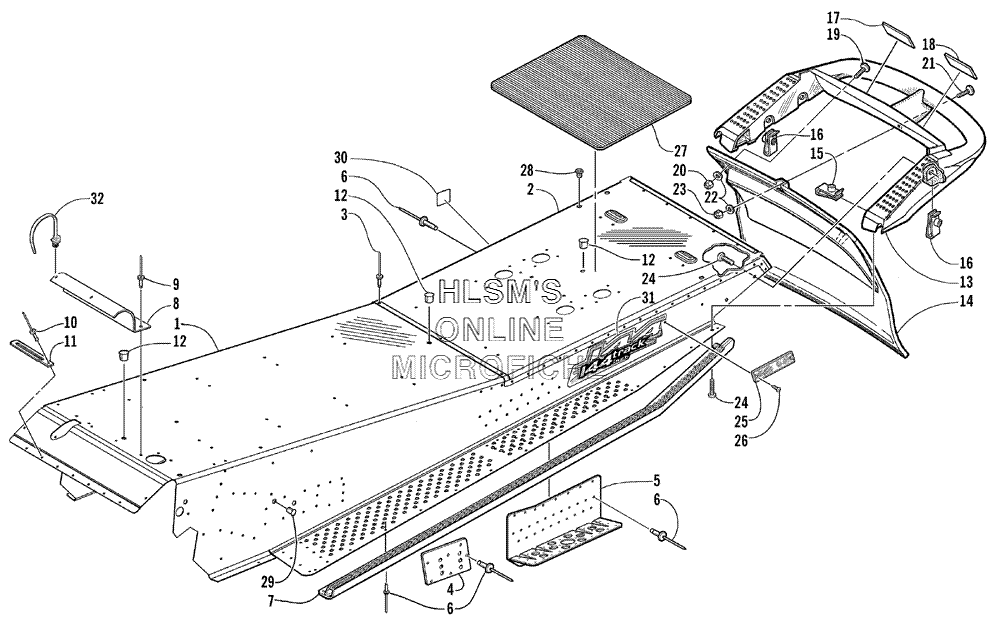

TUNNEL AND REAR BUMPER для Arctic Cat MOUNTAIN CAT 800 EFI - 2002 года выпуска`
-
№АртикулНазвание
-
11718-015 TUNNEL ASSY. (INC. 2, 6) (144)TUNNEL ASSY. (INC. 2, 6) (144)
-
22606-115 PLATE, END TUNNEL (REAR) (144)PLATE, END TUNNEL (REAR) (144)
-
38060-484 RIVETRIVET
-
41606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
50716-970 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
50716-971 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
60123-418 RIVET, SOLIDRIVET, SOLID
-
60623-072 RIVET, SOLIDRIVET, SOLID
-
68060-486 RIVETRIVET
-
72606-510 ROLL, TUNNEL (RIGHT) (144)ROLL, TUNNEL (RIGHT) (144)
-
72606-511 ROLL, TUNNEL (LEFT) (144)ROLL, TUNNEL (LEFT) (144)
-
80607-598 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
90623-166 RIVETRIVET
-
108060-504 RIVETRIVET
-
113002-964 CLAMP, WIRECLAMP, WIRE
-
120623-562 PLUG, HOLEPLUG, HOLE
-
131606-200 BUMPER (REAR)BUMPER (REAR)
-
141606-202 SNOWFLAPSNOWFLAP
-
142606-460 SNOWFLAP (LE 151/INTERNATIONAL)SNOWFLAP (LE 151/INTERNATIONAL)
-
141606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
150623-427 NUT, UNUT, U
-
160623-771 NUT, UNUT, U
-
171611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
181611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
198007-579 SCREW, MACHINESCREW, MACHINE
-
208041-366 NUT, LOCKNUT, LOCK
-
218017-580 SCREW, MACHINESCREW, MACHINE
-
228050-217 WASHERWASHER
-
238040-366 NUT, LOCKNUT, LOCK
-
248017-581 SCREW, MACHINESCREW, MACHINE
-
250606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
260623-269 CLIP, RETAININGCLIP, RETAINING
-
272606-134 PAD, RUBBERPAD, RUBBER
-
280623-582 INSERTINSERT
-
290606-983 PLUG, BODYPLUG, BODY
-
300411-053 DECAL, CEDECAL, CE
-
314611-048 DECAL, "144 INCH TRACK" TUNNEL (RIGHT) (BLACK/GREEN) (144)DECAL, "144 INCH TRACK" TUNNEL (RIGHT) (BLACK/GREEN) (144)
-
314611-049 DECAL, "144 INCH TRACK" TUNNEL (LEFT) (BLACK/GREEN) (144)DECAL, "144 INCH TRACK" TUNNEL (LEFT) (BLACK/GREEN) (144)
-
314611-434 DECAL, "144 INCH TRACK" TUNNEL (RIGHT) (BLACK-ORANGE) (144)DECAL, "144 INCH TRACK" TUNNEL (RIGHT) (BLACK-ORANGE) (144)
-
314611-433 DECAL, "144 INCH TRACK" TUNNEL (LEFT) (BLACK-ORANGE) (144)DECAL, "144 INCH TRACK" TUNNEL (LEFT) (BLACK-ORANGE) (144)
-
320623-677 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
