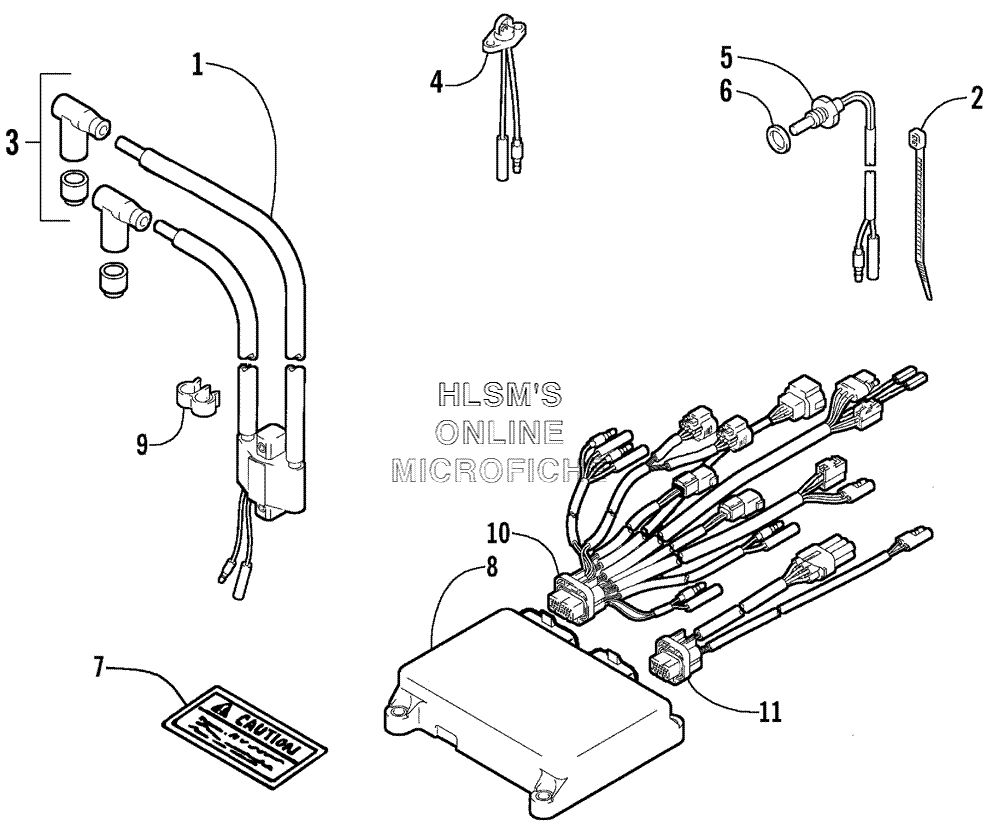

ELECTRICAL для Arctic Cat MOUNTAIN CAT 800 EFI - 2002 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION, ASSY.COIL, IGNITION, ASSY.
-
23005-237 CABLE TIECABLE TIE
-
33006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
43005-460 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-462 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
72611-755 DECAL, CAUTION, "HOT SURFACE"DECAL, CAUTION, "HOT SURFACE"
-
83006-069 ECU, CIRCLEECU, CIRCLE
-
83006-070 ECU, SQUAREECU, SQUARE
-
83006-071 ECU, TRIANGLEECU, TRIANGLE
-
93005-387 CLAMPCLAMP
-
103006-072 HARNESS, ECUHARNESS, ECU
-
113006-079 HARNESS, APVHARNESS, APV
