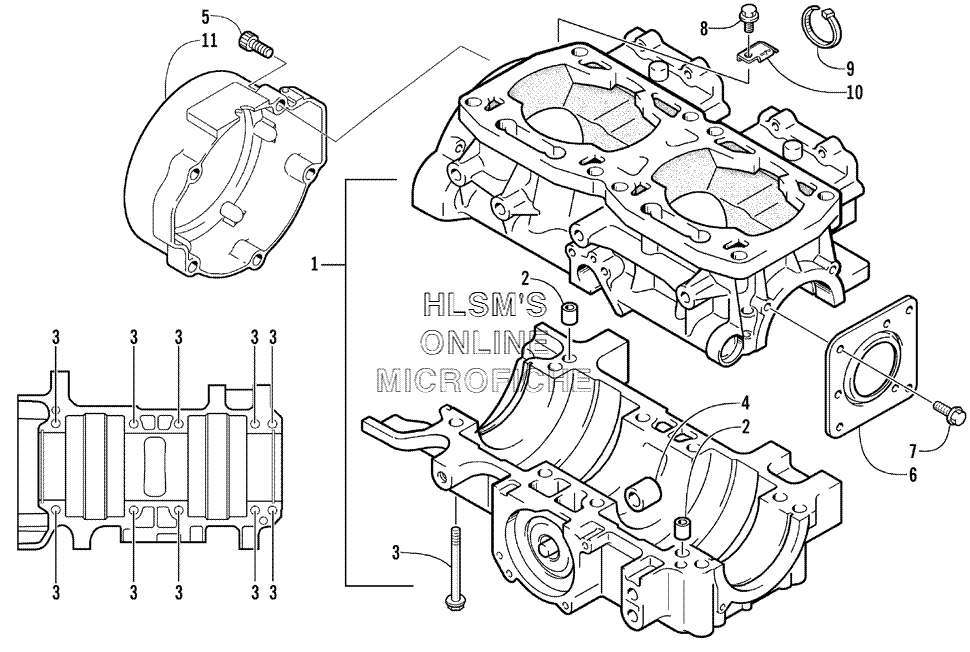

CRANKCASE ASSY. для Arctic Cat MOUNTAIN CAT 800 EFI - 2002 года выпуска
-
№АртикулНазвание
-
13006-051 CRANKCASE ASSY. (INC. 2, 4)CRANKCASE ASSY. (INC. 2, 4)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33005-514 BOLTBOLT
-
43003-647 BUSHING, SHAFT, OIL PUMPBUSHING, SHAFT, OIL PUMP
-
53006-077 BOLTBOLT
-
63008-304 PLATE, OIL SEALPLATE, OIL SEAL
-
73004-338 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
80145-105 SCREW, CAPSCREW, CAP
-
90123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
100608-375 BRACKET, GROUND WIRE, ENGINEBRACKET, GROUND WIRE, ENGINE
-
113006-052 CASE, MAGNETOCASE, MAGNETO
