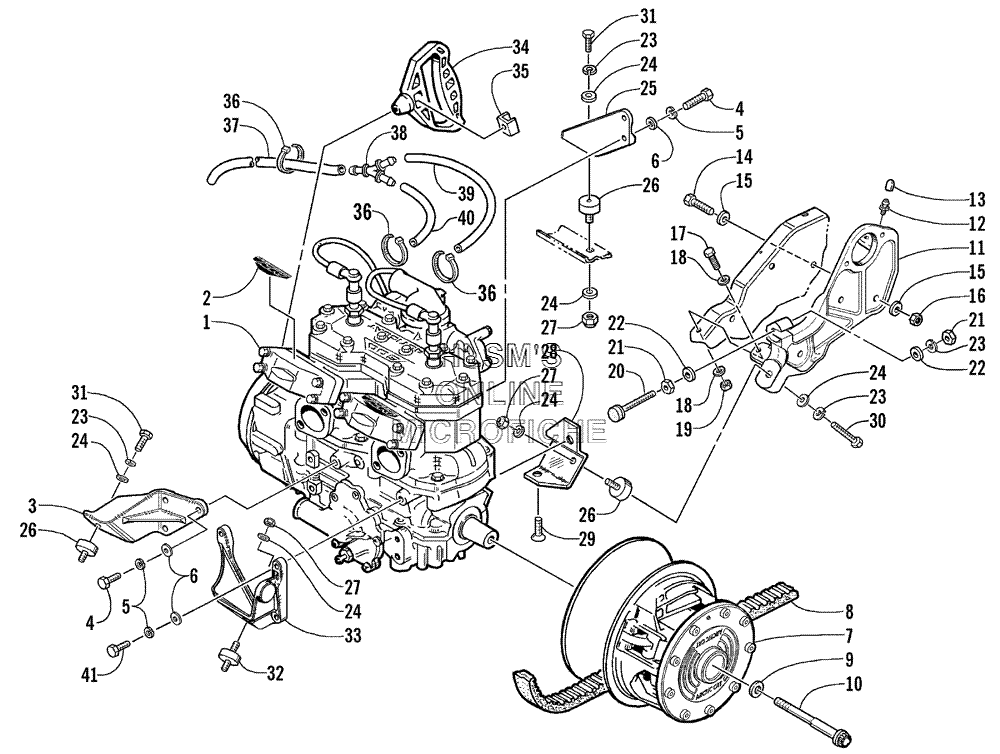

ENGINE AND RELATED PARTS для Arctic Cat MOUNTAIN CAT 500 - 2002 года выпуска`
-
№АртикулНазвание
-
10662-313 ENGINE, AU50L6ENGINE, AU50L6
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30708-102 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
48012-132 SCREW, CAPSCREW, CAP
-
58051-247 WASHER, LOCKWASHER, LOCK
-
68050-247 WASHERWASHER
-
70725-336 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
100623-804 BOLT, CLUTCHBOLT, CLUTCH
-
110708-142 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 12, 13)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 12, 13)
-
120623-899 FITTING, GREASEFITTING, GREASE
-
130623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
140623-628 SCREW, CAPSCREW, CAP
-
150623-044 WASHERWASHER
-
160623-026 NUT, LOCKNUT, LOCK
-
178002-041 SCREW, CAPSCREW, CAP
-
188050-217 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
200608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
218042-516 NUTNUT
-
228050-282 WASHERWASHER
-
238051-277 WASHER, LOCKWASHER, LOCK
-
248050-277 WASHERWASHER
-
250708-104 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
260608-217 MOUNT, ENGINEMOUNT, ENGINE
-
278040-486 NUT, LOCKNUT, LOCK
-
280708-120 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
308002-226 SCREW, CAPSCREW, CAP
-
318002-222 SCREW, CAPSCREW, CAP
-
320608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
330708-103 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
340636-363 HANDLE, RECOILHANDLE, RECOIL
-
350606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
360123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
370610-365 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
380670-875 Y, FITTINGY, FITTING
-
390610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
400610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
418002-134 SCREW, CAPSCREW, CAP
